10X Explosion Proof 4in1 Mini PTZ Analogue IR Camera
10X Explosion Proof 4in1 Mini PTZ Analogue IR Camera
10X Explosion Proof 4in1 Mini PTZ Analogue IR Camera
10X Explosion Proof 4in1 Mini PTZ Analogue IR Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDQ-EX-PTZ2010IR04N(A)
Place of Origin :
China
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Material :
Stainless Steel 316L or 304
Built-in Lens :
5-50mm Motor Lens
Image Sensor :
1/2.8"Sony307 Sensor
Video Output :
TVI/CVI/AHD/CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω
IR Radiation Distance :
40m
Weather-proof :
IP68
Power :
DC12V,Max Power Comsumption Less Than 10W(When the infrared lamps turn on)
Description

2MP 10X Explosion Proof Anti-Corrosion Mini PTZ Analogue IR Camera

Key Features

  • 1080P(2MP)/TVI/CVI/AHD/CVBS 4 in 1 Solution
  • 5-50mm Motor Lens
  • 1/2.8"Sony307 Sensor
  • Support 2D NR/3D NR/Sense-up/WDR(120dB)Functions etc.
  • High-Quality IR Cut Filter
  • 2pcs SMT IR Leds,40m IR Distance
  • Water-proof:IP 68
  • Pan:0-355°/Tilt0-90°(Moving Speed@40°/s)
  • Made of Stainless Steel 304 or 316L material,Ex-proof,corrosionProof,waterproof,used for potentiaexplosive sites and high corrosive sites.
    Support UTC Control Function

Application Scenarios

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Specification

Camera
Image Sensor: 1/2.8"Sony307 Sensor
Built-in Lens: 5-50mm Motor Lens
Signal System: PAL/NTSC
Horizontal Resolution PAL:1920*1080P@25F/S
NTSC:1920*1080P@30F/S
Sync.System: Internal Sync.
Video Output: TVI/CVI/AHD/CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω
OSD Function Yes(2D NR/3D NR/Sense-up/WDR etc.)
S/N Ratio: More than 50dB(AGC OFF)
White Balance: Auto Tracking White Balance
Shutter Speed: 1/25~1/50,00OSec.
Illumination for Infrared Switching 3 Lux
Infrared Wavelength: 850nm
Pan 0-355°@40°/s
Tilt 0-90°@40°/s
Mimimum Illumination: 0Lux(Infrared Lamps Turn on)
IR Leds: 2pcs SMT IR Leds
IR Radiation Distance: 40m
Weather-proof: IP68
General
Power Requirement: DC12V,Max Power Comsumption Less Than 10W (When the infrared lamps turn on)
Operating Conditions -40℃-60℃ Humidity 95%or less(non-condensing)
Weight 4KG
Verification to BS EN 62676-1-1-2014-Video surveillance systems for use in security applications

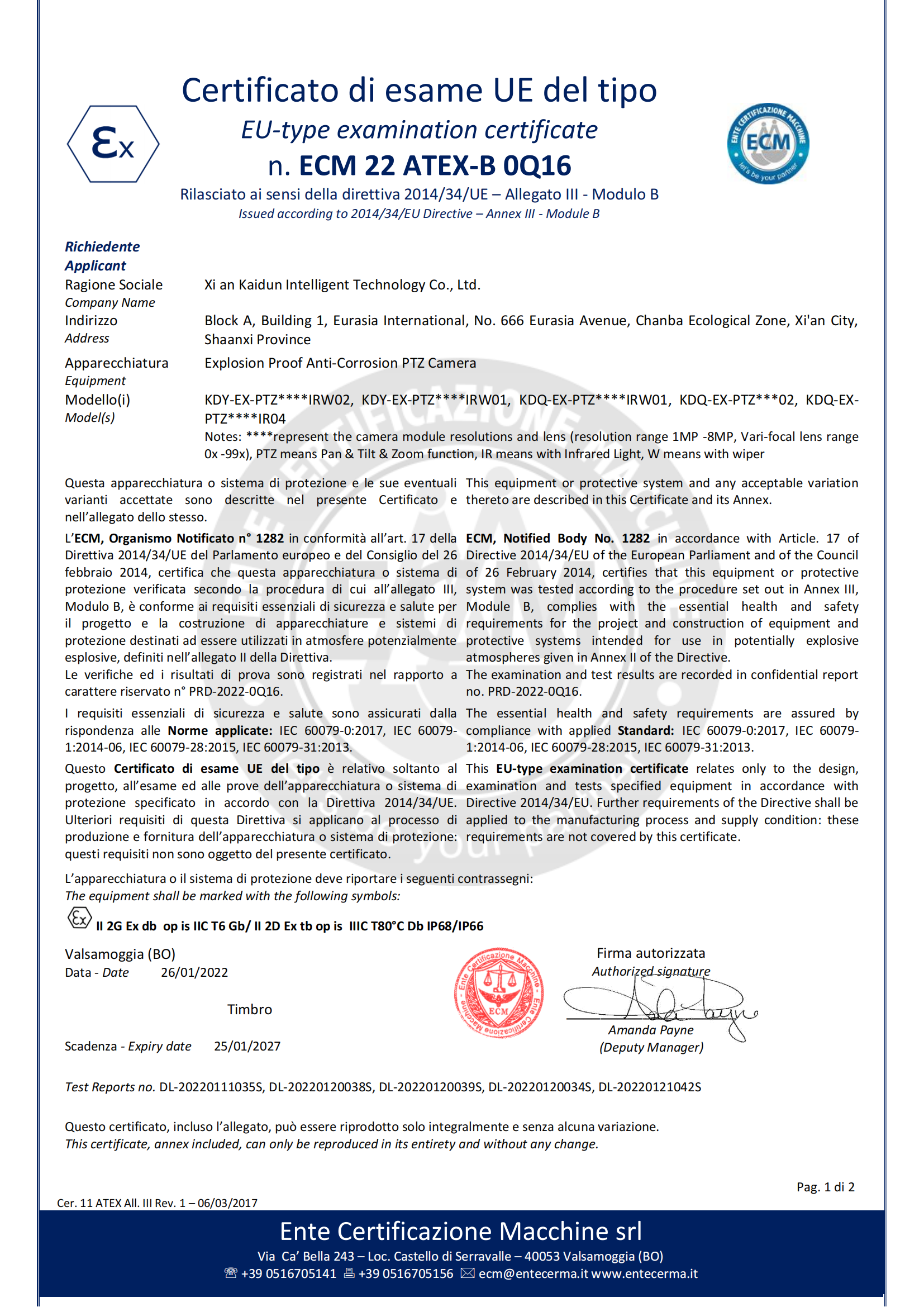

Certificate
