Underwater Analogue HD Pan & Tilt Camera
Underwater Analogue HD Pan & Tilt Camera
Specifications
Brand Name :
KAIDUN
Model Number :
KDQ-UDC-PTF228(237)01
Place of Origin :
China
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Resolution :
2MP
Lens :
2.8/3.7mm Glass Lens/F1.2
Material :
Stainless Steel/Titanium Alloy
Depth Rating :
0-100m
Voltage Supply :
48VDC
Size :
Φ45*105(not including parts 34mm)
Weight :
0.2kg(Stainless Steel)
Description

Underwater Analogue HD Pan&Tilt Camera

Underwater Analogue HD Pan & Tilt Camera

Key Features

  • 2 Magapixel Analogue HD CMOS
  • 360°continuous rotation in the horizontal direction,-5°-90°in the vertical direction,no blind area
  • 6x high brightness 0.5W white LEDs built-in lights,10 levels of micro dimming
  • Products can be customized according to different situations

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Application Scenarios

Aquaculture

Underwater Photography

Underwater Video

Udnerwater Salvage

Other Application Scenarios:Pipeline Maintenance;Underwater exploration etc
Parameters

Name Underwater Analogue HD Pan&tilt Camera
Model NO. KDQ-UDC-PTF228(237)01
Main Parameters
Image Sensor 2Magapixel Analogue HD COMS/1080p
Signal Type HD Over Coax
Resolution 2 Magapixel
SYS PAL/NTSC
Minimal Illumination 0.01 lux at F1.25600°K
Video Output 1V-75 ohms AHD/CVBS,video signal(Anti-interference technology)
Rotation Range Horizontal360°continuous spin,Vertical direction 0°~180°
Antenna Sweep Radius Maximum in air:5m Minimum in air:60mm
Lens
Lens 2.8/3.7 mm Glass Lens/F1.2
Focus Electronic motion Focus
Function
Function 3 speed,Low/medium and high speed,dynamic switching
6 high brightness 0.5W white LEDs(50000h lifetime),10 levels of micro dimming
General
Material Stainless Steel /Titanium Alloy
Depth Rating 0-100 m
Voltage Supply 48VDC
Temperature -30℃~+60℃
Size Φ45*105(not including parts 34mm)
Weight 0.2kg(Stainless Steel)
Parts
Packing List Cable ,Adaptor,Warranty Card ,Certification ,Report
Depth
Customization Sensor(Temperature ,Pressure..)
Control Display Screen

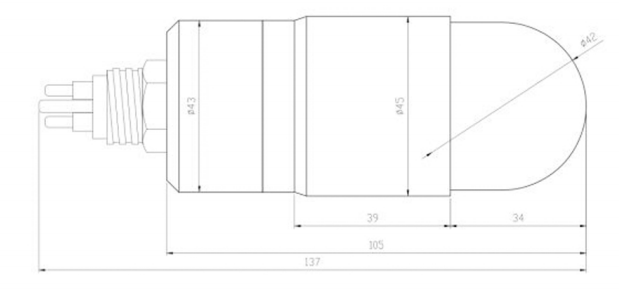

Dimensions


Underwater Analogue HD Pan & Tilt Camera
