CCS Type Approval Marine PTZ Mini Dome Camera
CCS Type Approval Marine PTZ Mini Dome Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MC600
Certification :
BS EN62676-1-1-2014/CE-EN60945(EMC+LVD)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Material :
Stainless Steel 316L or 304
Resolution :
8MP
Focal Length :
2.7-13.5mm,5x optical zoom
Power :
DC12V ±10%/POE (Optioonal) Max Power Comsumption Less than 15W
Dimensions(L*W*H) :
187*138*151mm
Weight :
41kg
Description

CCS Type Approval Marine PTZ Mini Dome Camera

Key Features

  • Stainless Steel316L Enclosure
  • IP68 ingress Protection
  • IR Distance 40meters
  • Support Pan&Tilt Functions
  • 8MP/2.7-13.5mm Focal Length
  • DC12V/PoE Power optional
  • Verification to:BS EN62676-1-1-2014-Video surveillance systems for use in security applications,CE-EN60945(EMC+LVD)

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Application Scenarios

Container Vessel,Bulk Vessel ,Oil tanker,cruise Vessel,yacht,oil/gas drilling platform,Oil depots, Sea port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Specification

Camera
Image Sensor: 1/2.8"Sony415 8MP CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.05Lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time: 1/25 S to 1/10,000 s
Lens: 5X 2.7-13.5Mm Motor Lens,(Field Angle)DxHxV(°)2.7mm :140°*100°*72°,13.5mm:40°*32°*24°.
Day&Night: IR cut filter with auto switch
Image Enhancement: BLC/3D DNR/D-WDR
Motion Detection Support
Intelligent Detection(AI) Human Detection,Vehicle detection
Privacy Protection Support(4 Self-customized Areas)
Wather-Proof: IP66
Illumination for Infrared Switching: 0.5~3Lux
Infrared Wavelength: 850Nm
Mimimum Illumination: 0 Lux(IR ON)
IR Range: 2Pcs LEDs//35m IR
Compression Standard
Video Compression: H.265/H.264/MJPEG
Video Bit Rate: 128Kbps~12Mbps(main stream H.265)
64Kbps~1024kbps(sub stream H.265)
64Kbps~1024kbps(thr stream H.265)
Audio Compression: G711U/G711A
Dual Streams: Yes
Triple Streams: Yes
Max. Image Resolution: 3840*2160(8MP)@20fps
Frame Rate: 20Fps(8MP).MAX main stream
30fps(D1) .MAX sub stream
10fps(FHD).MAX thr stream
Image Settings: 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser or Smartphone App
Day/Night Switch: EXT/Day/Night/Auto/Time
Network
Network Protocols: HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,
DDNS,RTMP,IP Search(Support P2P, NVR, NVS etc.)
System Compatibility: ONVIF(17.2 With profile S)
On-line Viewing Max. Support 2 Users Simultaneously
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface: RCA Audio input/output Interface (Optional)
Alarm in/out interface: Support(1ch) (Optional)
DC Power Plug: DC Power Femate Interface
PTZ
Angle: Pan:0~355° / Tilt:0~90°
Speed: Pan: about 35°/s / Tilt: about 35°/s
Preset: Support 16 preset
speed: Pan:about 35/s/Tilt:about 35°/s
preset: support 16 preset
General
Operating Conditions -40℃~60℃ Humidity 95%or less(non-condensing)
Power 12V DC±10%/PoE(Optional) (The maximum power supply distance of POE+is 80m.)
Power Consumption 12 VDC±10%,Max Power Comsumption Less than 15W(When the infrared lamps turn
Housing Material Stainless Steel 316L
Weight 4.1kg

Cerfication

CCS Type Approval Marine PTZ Mini Dome CameraCCS Type Approval Marine PTZ Mini Dome Camera

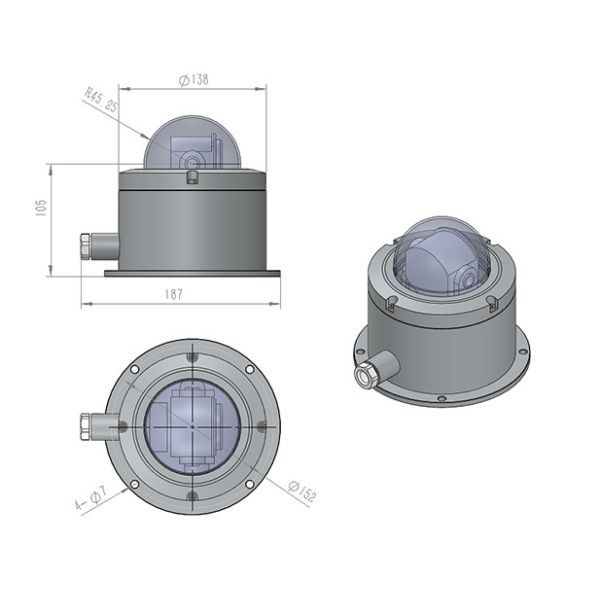

Dimension

CCS Type Approval Marine PTZ Mini Dome Camera

Accessories

CCS Type Approval Marine PTZ Mini Dome Camera CCS Type Approval Marine PTZ Mini Dome Camera CCS Type Approval Marine PTZ Mini Dome Camera

Anti-Shake Bracket 316L Exe Type Juction Box Ex-Proof Hose
