Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera
Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera
Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera
Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MC803
Certification :
BS EN 62676-1-2014
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Material :
Stainless Steel 316L or 304
Resolution :
2MP
Focal Length :
5.5-99mm,18x optical zoom
Power :
DC12V/POE+/AC100V-240V etc optional,≤10W
Dimensions(L*W*H) :
280*185*343mm
Net Weight :
≤8.1kg
Description

Anti-Corrosion Marine Bullet IR IP Camera

Key Features

  • Stainless steel 316L Enclosure
  • Ingress protection IP68
  • Resolution 2MP
  • 5.5-99mm Vari-focal lens
  • 18X Optical Zoom,16x Digital Zoom
  • DC12V Standard (AC110-240V,POE+Optional)
  • Verification to:BS EN 62676-1-1-2014-Video surveillance systems for use in security applicationsCE-EN60945(EMC+LVD)
  • IR Range up to 100meters(300meters is optional)

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Application Scenarios

Container Vessel,Bulk Vessel ,Oil tanker,cruise Vessel,yacht,oil/gas drilling platform,Oil depots, Sea port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Specification

Camera
Image device 1/2.7"Inch line by line scan 4MP CMOS image sensor
Optical double 22X
Focal distance Electric and dynamic zoom,5.2~114.4mm
Field of View (H) 3.49°~60.47°
Field of View (V) 1.97°~36.30°
Field of View (D) 4.12°~74.38°
Iris diaphragm F1.6(W)~F3.6(T)
Shutter Automatic /manual,1~1/100000s
Through the fog Adaptive fog
Noise-signal ratio >56DB
Wide Dynamic 120DB
Minimal illumination 0.003Lux(F1.65,AGC ON,color),0.002Lux(F1.65,AG C ON,black and white)
Switch the mode day and night Automatic,day,night,switching quantity control
3D positioning Support
Anti-shake Support
Detection Distance 90-1500m
Observe Distance 40-570m
Video frequency
Video coding H.265,H.264,MJPE G
Maximum frame rate 30 Frames
Video stream Main code stream:2688*1520,2560*1440,2304*1296,1920*1080,1280*720(720P),720
*576 (D1),640*360,704*288(2 CIF),352*288(CIF);Auxiliary code stream:1920*1080,1280*720(720P),720*576 (D1),640*360,704*288(2 CIF),352*288(CIF)Third stream:720*576(D1),640*360,704*288(2 CIF),352*288(CIF)
Video code rate 128Kbps~16Mbps
OSD Time,cloud head coordinates,multiplier,preset bit,serial port OSD,number of peoplestatistics,network port OSD,picture OSD,environment volume,device longitude and latitudesittingStandard et al
Regional Enhancement (ROI) Eight areas
Privacy cover Black style,Marseille,gram style:8 single scenes,24 multiple scenes
Screenshot Regular grasp,periodic grasp,cruise preset bit grasp,manual grasp
Grasp the map at the maximum resolution 2688*1520
Audio frequency
Audio encoding format .7G 11U,G.711A
Audio sampling rate G.711U,G.711A:8KHz /16K Hz
Memory
Front end storage Micro SD,up to 256GB
Intelligence
Face detection Support effect priority,speed priority,cycle preferred three face snap preferred mode,support face Angle filtering;Support human face,human body capture,support human face attribute extractionFace attributes:gender,age,wearing glasses,wearing masks,hat style,hat color
Peripheral cloth defense Support cross-boundary detection,regional invasion,entry area and leaving area;Support motor vehicles,non-motor vehicles,pedestrian target classification detection capture and distribution
Number of statistics Statistics of human flow:support the statistics of total number,number of entering and number of leaving,support the three-level alarm of the number of stranded,and clear the statistics of the number of support;Personnel density detection:to support the three-level alarm of personnel density
Autotracking It supports the classification and tracking of motor vehicles,non-motor vehicles and pedestrian targets in the screen,and automatically returns to the original position after
reaching the preset tracking time
Smart Function
Common event Motion detection,occlusion detection,sound detection,alarm input,and alarm out put
Network
Networking protocol L2TP,IPv4,IPv6,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTMP,DNS,DDN S,NTP ,FTP ,UPnP ,HTTP ,SNMP ,SIP
Compatible access ONVIF Profile G ,Profile T ,Profile S,GB/T28181,GA/T 1400,API
Cache supplement Support SD card broken network cache supplementary record
Interface features
Interface form 36PinFFC(including network port,power supply,serial port UART_1,serial port UART_2,Alarm In /0ut,Audio In /0ut)
General
Power DC12V/POE+/AC100V-240V etc optional,≤10W
(The maximum power supply distance of POE+ is 80m)
Dimensions(L*W*H) 280*185*343mm
Net Weight ≤8.1kg
Material Stainless Steel 316L
Working Environment -40℃~60℃,Humidity:≤100%RH(non-condensing)
Strorage Environment -40℃~60℃,Humidity:s100%RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP68
Infrared Distance 50-100m
Inlet Hole Specification 1 Entry hole G3/4
Installation Method Wall or column platform installation

Dimension

Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera

Certficate

Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera

Accessories

Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera Anti Corrosion Marine CCTV Camera 240V IR IP Ptz Bullet Camera

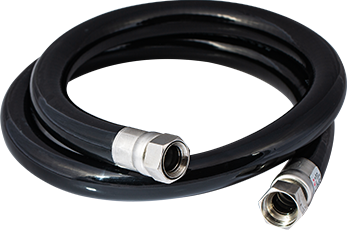

316L Exe Type Juction Box Ex-Proof Hose
