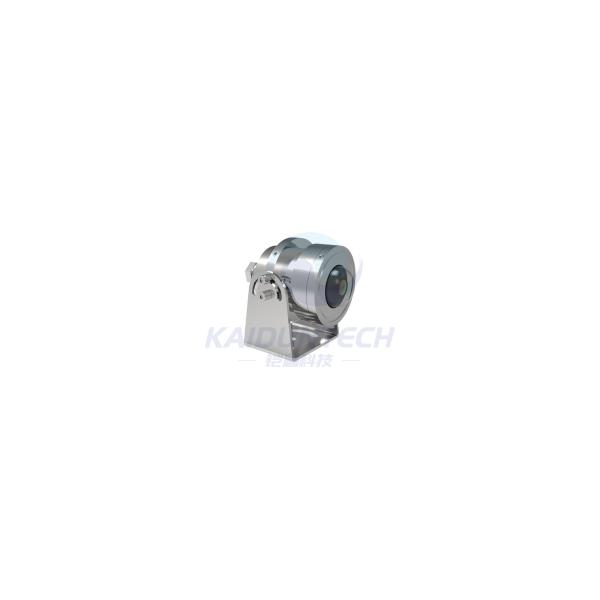

4MP Marine Super Wide View Camera
4MP Marine Super Wide View Camera
4MP Marine Super Wide View Camera
4MP Marine Super Wide View Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MC400
Certification :
BS EN62676-1-1-2014
Place of Origin :
China
MOQ :
1
Packaging Details :
Wooden box packaging / cardboard box packaging
Delivery Time :
5-8 week
Payment Terms :
T/T
Supply Ability :
5000 units/year
Material :
Stainless Steel 316L or 304
Resolution :
4MP(2560*1440)
Focal Length :
1.8mm/2.5mm
Power :
DC 12V± 25%,POE(IEE 802.3af),≤8W
Dimensions(L*W*H) :
114*84*118mm
Net Weight :
≤1.4kg
Description

4MP Marine Super Wide View Camera


Key Features

  • Stainless Steel 316L Enclosure
  • Black light Level
  • IP68 Ingress Protection
  • 4MP Resolutions
  • Fixed lens 1.8mm /2.5mm
  • DC12V/PoE Power optional
  • Verification to:BS EN 62676-1-1-2014-Video surveillance systems for use in security applications

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Application Scenarios

Container Vessel,Bulk Vessel ,Oil tanker,cruise Vessel,yacht,oil/gas drilling platform,Oil depots, Sea port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.


Specification

Camera
Image Sensor 1/2.8”Progressive Scan CMOS
Minimum Illumination Color:0.001 Lux @(F1.7,AGC ON);B/W:0.005Lux @(F1.5,AGC ON)
Shutter 1/25s to 1/100,000s;Supports delayed shutter
Day/Night Switch Support IR-CUT,the internal resistance of IR-CUT coil is 20 ohms,the power-on time is less than 200ma,and the voltage is 3.5V-6V
Lens
Focal Length 1.8mm/2.5mm
Horizontal Field of View 170°/130°
Main Stream 50Hz:25fps(2560*1440,1920*1080,1280*960,1280*720);
60Hz:30fps(2560*1440,1920*1080,1280*960,1280*720)
Image(Maximum Resolution:2560*1440)
Image Settings Saturation,Brightness,Contrast and Sharpness can be adjusted via the client-side or browser
BLC Support
Optical Defog Support
Day/Night Switch Automatic,manual,timing,alarm trigger
Network
3D Noise Reduction Support
Storage Function Support USD Extend to Micro SD/SDHC/SDXC card(256g)offline local storage,NAS (NFS,SMB/CIFS support)P

Protocols

 TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv 6
Interface
Interface Protocol ONVIF(PROFILE S/G/T)
External Interface 2PIN power port,6PIN network port,1 channel alarm input and output,1 channel
General
Power DC 12V± 25%,POE(IEE 802.3af),≤8W(The maximum power supply diatance of POE is 80m)
Dimensions(L*W*H) 114*84*118mm
Net Weight ≤1.4kg
Material Stainless Steel 316L
Working Environment -40℃~60℃,Humidity:≤100%RH(non-condensing)
Strorage Environment -40℃~60℃,Humidity:≤100%RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP68


Cerfication
