Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera
Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MC200
Certification :
EN 62676-1-1-2014
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Material :
Stainless Steel 316L or 304
Resolution :
2MP
Focal Length :
2.7-13.5 mm
Power :
DC12V/POE optional,≤20W
Dimensions(L*W*H) :
165*202*165mm
Net Weight :
≤3kg
Ingress Protection :
IP68
Installation Method :
Wall or colum platform installation
Description

Offshore Marine Fixed Dome Camera

Key Features

  • Stainless Steel 316L Enclosure
  • IP68 ingress protection-IR distance 30meters
  • 2MP/2.7-13.5mm Fixed lens
  • DC12V/PoE power optional
  • Verification to:BS EN 62676-1-1-2014-Video surveillance systems for use in security applicationsCE-EN60945(EMC+LVD)

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.

Application Scenarios

Container Vessel,Bulk Vessel ,Oil tanker,cruise Vessel,yacht,oil/gas drilling platform,Oil depots, Sea port

Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.

Specification

Parameter Values
Sensor Type 1/2.8 Inch CMOS
Pixels 2mp
Maximum Resolution 1920*1080
ROM 4GB
RAM 1GB
Electronic Shutter 1/1～1/30000S
Scanning Mode Progressive Scanning
Minimum Illumination Color: 0.005Lux@F1.8 Black And White: 0.0005Lux@F1.8
Fill Light Control Multiplication Priority/Manual/SmartIR/Close
Lens Focal Length 2.7mm~13.5mm
Lens Aperture F1.8-F3.3
Field Of View Horizontal::33.5~101.6° Vertical:18.7~52° Diagonal:38.5~124.7°
Optical Zoom 5X
The Focusing Model Automatic/Semi-Automatic/Manual
Close Up 1.2m
Aperture Control Fixed Aperture
DORI Distance D:131m O:5m R:26m I:12.8m
Aberrations -0.133
Variable Speed About 5S
Preset Points DH-SD1: 80 PelocD/P: 255
Autocruise 8 Strips, Each Of Which Can Add 32 Preset Points
Automatic Trace Patrol 5 Articles
Automatic Line Sweeping 5 Articles
Power Failure Memory Support
Idle Action Preset Points; Patrol Trace; Cruise; Line Sweep
Gimbal Protocol DH-SD Pelco-P/D(Auto Recognition)
Panoramic Head Support
Timed Tasks Preset Points; Patrol Trace; Cruise; Line Sweep
Video Compression Standards Smart H.265;H.265;Smart H.264;H.264B;H.264M;H.264H;MJPEG
Maximum Number Of Streams 3 coded streams
Supported Resolutions 1080P(1920*1080)；1.3M(1280*960)；720P(1280*720)；D1(704* 576)；CIF(352*288)
Default Code Stream At Default Resolution 4096Kbps(1080P)
Video Frame Rate 50Hz Main Code Stream (1920*1080@50Fps ), Main Code Stream (1280*960@50Fps ), Main Code Stream (1280*720@50Fps )Sub Code Stream 1 (704* 576@25Fps ), Sub Code Stream 1 (352*288@25Fps ), Sub Code Stream 2 (1920*1080@25Fps ), Sub Code Stream 2 (1280* 960@25Fps ), Sub Code Stream 2 (1280* 720@25Fps )60Hz Main Code Stream (1920*1080@60Fps ), Main Code Stream (1280*960@60Fps ), Main Code Stream (1280*720@60Fps )Sub Code Stream 1 (704*480@30Fps ), Sub Code Stream 1 (352*240@30Fps ), Sub Code Stream 2 (1920*1080@30Fps ), Sub Code Stream 2 (1280*960@30Fps ), Sub Code Stream 2 (1280*720@30Fps )
Code Stream Control Variable Stream/Fixed Stream
Video Bit Rate H.264:32Kbps ~ 8192Kbps H.265:32Kbps ~ 8192Kbps
Day And Night Conversion ICR Automatic Switch/Electronic Color To Black
Backlight Compensation Support
Wide Dynamic Support
Glare Suppression Support
White Balance Automatic/Manual/Tracking/Outdoor/Indoor/Outdoor Auto/Sodium Auto/Sodium
Gain Control Automatic/Manual
Noise Reduction 2D Noise Reduction/3D Noise Reduction
Dynamic Detection Support
ROI Of The Region Of Interest Support
Anti-Shake Function Electronic Stabilization
Fog Permeability Electronic Fog Transmission
Image Rotation 180°
Signal-To-Noise Ratio ≥55DB
Audio Compression Standards G.711A；G.711Mu；G.726；AAC；G722.1；G.729；MPEG2-Layer2；G723;PCM
Network Interface 1 (Supporting 10M/100M Network Data)
Network Protocols HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1X;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/V2C/V3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS
Access Standards ONVIF;GB/T28181;CGI; Dahua SDK; GA/T1400;API
Unicast/Multicast Mode Unicast/Multicast
Previewing The Maximum Number Of Users, The 20 (Total Bandwidth: 64M)
Storage Function FTP; Micro SD Card; NAS (Up To 512G)
Browser Support IE: IE7 Version Or Above Support Google: 45 Version Or Above Support Firefox: 52ESR Version Or Earlier Support Apple: No Version Limit
Mobile Client Systems IOS;Android;IPhone;IPad;Windows Phone
SVC Time Domain
OSD Information Overlay Access; Time; Geolocation; Pictures
SDK And API Support
Safe Mode Authorized User Name And Password, And MAC Address Binding; HTTPS Encryption; IEEE 802.1X Network Access Control (White List)
User Management Maximum Support For 32 Users; Multi-Level User Rights Management.
Analog Output Interface 1 Channel (CVBS Output)
RS-485 Interface 1 (Baud Rate Range: 1200Bps~38400Bps)
Audio Input 1 Way(optional )
Audio Output 1 Way(optional )
Voice Intercom Support
Alarm Input 1 Way(optional )
Alarm Output 1 Way(optional )
Alarm Linkage Snapshot; Preset Point; Cruise; Track Patrol; SD Card Video Recording; Trigger Switch Output; Send Mail
Alarm Incidents Video Dynamic/Occlusion Detection; Audio Detection; Network Disconnection Detection; IP Conflict Detection; Memory Card Status Detection; Storage Space Detection
Alarm I/O 1 In 1 Out(optional )
Audio I/O 1 In 1 Out(optional )
General
Power DC12V/POE optional,≤20W
(The maximum power supply distance of POE is 80m)
Dimensions(L*W*H) 165*202*165mm
Net Weight ≤3kg
Material Stainless Steel 316L
Working Environment -40℃~60℃,Humidity:≤100%RH(non-condensing)
Strorage Environment -40℃~60℃,Humidity:s100%RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP68
Inlet Hole Specification 1 Entry hole G3/4
Installation Method Wall or column platform installation

Cerfication

Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv CameraOffshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera

Dimension

Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera

Accessories

Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera Offshore Marine CCTV Camera 20W Dome Wide Angle Lens Cctv Camera

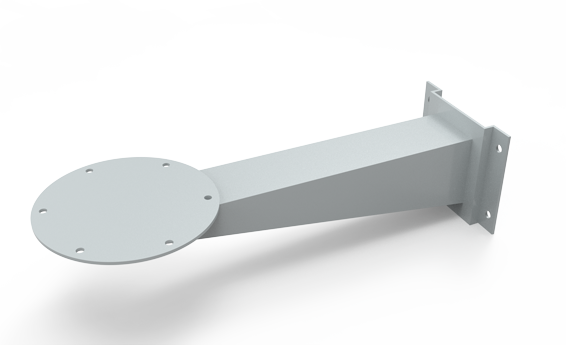

Anti-Shake Bracket 316L Exe Type Juction Box Ex-Proof Hose
