Marine Grade Anti-Corrosion Zoom IR Camera with wiper
Standard KDW-EX-VL404IRW02 4MP,4x Optical zoom ,2.8mm -12mm focal length ,with IR &Wiper , PoE Power
Key Features
Marine-grade IP Camera with wiper system including:
- Stainless steel 316L Enclosure with Powder Coating
- 4MP, 2.8-12mm lens, 4 × optical zoom;
-IR Range up to 60meters
-Optional Heater&fan (Only available for DC12V Power Supply)
- DC12V &PoE Power supply
Accessories including :
-1x Stainless steel 316L joint case with RJ45 Connector
Suitable for the pigtail line of the POE powered camera
-1x KDB004T Anti-shake SS316L Wall Mounting Bracket
Parameters
| Type |
KDW-EX-VLXXXIRW02 |
| Order No. |
KD003 |
| Material |
Stainless Steel 316L |
| Protection Class |
IP68 |
| Temp.range min |
-40℃ |
| Temp.range max |
+60℃ |
| Vibration(0-100Hz) |
0.7g |
| Video |
IP |
| Operational Areas |
Outdoor |
| Mounting |
Wall mounted |
| Wiper/IR |
Wiper/IR |
| Surface |
powder coating |
| Resolution |
2MP,4MP,5MP,8MP etc |
| Zoom |
4X,10X,20X etc |
| Field of View(H) |
107.4°~39.8° |
| Field of View(V) |
72°~24° |
| Field of View(D) |
140°-40° |
| CCTV add-on |
WDR,HLC,illegal login,motion detection ,line crossing detection,intrution detection etc |
| Voltage |
PoE/DC12V |
| Net Weight |
6kg |
| Certificates |
DNV TA/ATEX/CE/FCC |
| EX Mark |
ExII 2G Ex db op is IIC T6 Gb Ⅱ 2DExtb op is IIC T80℃ Db IP68 IP66 |

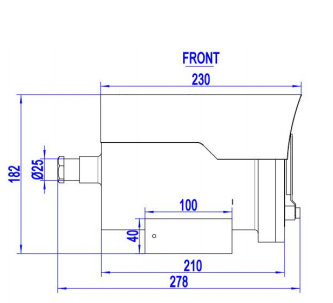

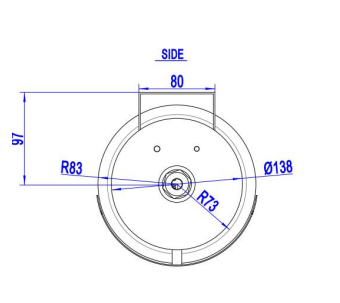

Dimensions


Accessories

Anti-shake SS316L Bracket SS316L Exe Type Juction Box Explosion Proof & Anti-corrosion Flexible Conduit
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
