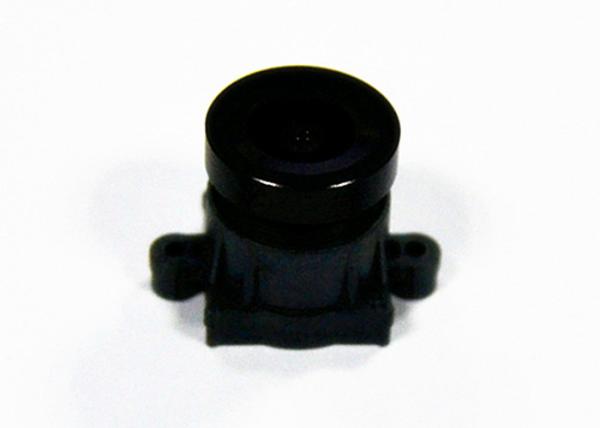

1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
1/2.7 3.2mm F2.0 5Megapixel M12 mount 144degree Waterproof Wide Angle Lens for OV2710/OV4689/AR0330/IMX322
Specifications
Brand Name :
CCOM LENS
Model Number :
127032MPF-M12(W)
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Camera Lens :
CCTV Video Lens
Optical Lens :
M12 mount wide-angle Lens
TV Lens :
1/2.7" ~ 1/4" sensor lens
Material :
6G+IR
Description

Waterproof 1/2.7" 3.2mm F2.0 5Megapixel M12x0.5 Mount 144degree Wide Angle Lens for Automobile data recorder/vehicle rear-view mirror, 3.2mm M12 lens for AR0330/OV4689/OV9750/OV2710/IMX322 sensors

Model 127032MPF-M12(W)
IMAGE FORMAT 1/2.7"

SENSOR SIZE 1/2.7" ~ 1/4" MP CMOS/CCD (OV2710/IMX322/AR0330/OV4689/OV9750)
MAX IMAGE CIRCLE Ø6.9mm
FOCAL LENGTH 3.2mm
F.O.V (D*H*V) OV2710: 144.5°*116°*60°
DISTORTION OV2710 H -11.6%, V -43%
APERTURE F2.0
RESOLUTION 5MP
MOUNT M12xP0.5
IRIS Fixed
B.F.L. 4.79mm
F.B.L. 3.13mm
T.T.L. 15.71mm
DIMENSION Φ14×(12.6±0.2)mm
LENS COMPOMENT 6G+IR

R.I. OV2710 >82%

C.R.A. OV2710 <11.87°
CUT FREQUENCY AT 50% 640±8nm

WATERPROOF IP68

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12/M9 mount option. M9 mount: http://www.ccom-tech.com/sale-9257992-1-2-7-3-2mm-f1-8-3megapixel-m9-0-5-mount-144degree-waterproof-wide-angle-lens-for-ov2710-ar0330-imx3.html
