High Efficiency CCM Continuous Casting Machine R8M 3 Strands
High Efficiency CCM Continuous Casting Machine R8M 3 Strands
Specifications
Place of Origin :
Jiangsu Wuxi China(mainland)
Brand Name :
Haijun
Model Number :
R8M 3 strands
MOQ :
1 Set
Packaging Details :
Container
Delivery Time :
2 months
Payment Terms :
T/T , L/C
Supply Ability :
30 strands CCM per year
Certification :
ISO9001:2008
Price :
Negotiable
Condition :
New
Voltage :
380V
Weight :
120t
After-sales Service :
Engineers available to service mach
Continuous casting machine :
with R 6m or more or less
Strand No :
from 1 to 8
Feature :
high effencicy
Power(W) :
150kw
Item :
Electric continuous casting machine
CCM radius :
from R2m to R12m
Description

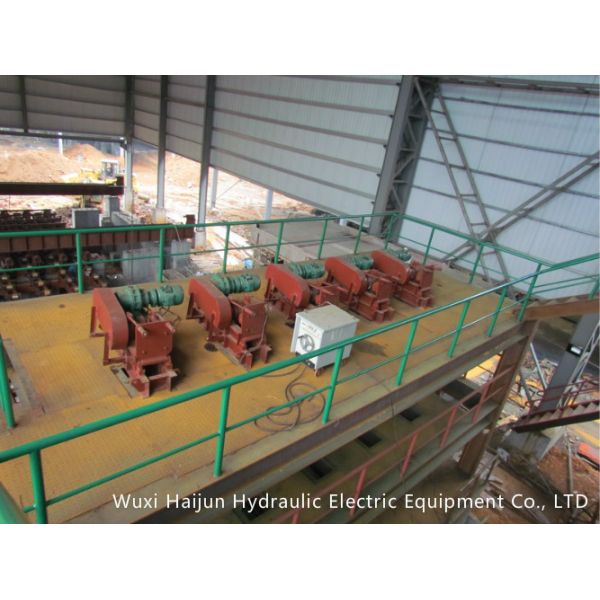

High Efficiency CCM Continuous Casting Machine R8M 3 Strands

Low energy and high efficiency

radius: R8M

Strand number: 3 strands

with ISO certification

safe operation

1. Basic standby technical parameters:

Steel billet casting machine radius

8m

Strand quantity

3 strands

Ladle support type

Ladle turret or Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Gas and water cooling , 2 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic or flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed

2. Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity

40T

Tap-to-tap cycle

60min

Furnace quantity

3sets

Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

400,000t/year

3. Casting speed, productivity and strand quantity

R8m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

180x180

200×200

220×220

Casting speed(m/min)

1.6

1.8

2.0

NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

20hour

(tons)

Annual output(300days)

(tons)

1

180×180

1.6m/min

21.98

439

131,700

2

200×200

1.8m/min

27.13

543

162,900

3

220×220

2.0m/min

36.47

729

218,700

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8～2.5

Please refer to the computational table

0.25

Low alloy steel

1.3～2.0

Please refer to the computational table

0.15～0.2

4. CCM equipment parts list

№ Equipment name Weight Model and specification Unit
1 Ladle turret 21T set 1
Hydraulic drive,with weighting
2 Tundish arriage 12.5×2=25T set 2
High and low leg type
3 Tundish 6×2=12T set 2
4 Slag Pot 2.5T set 1
5 Long sleeve protection device 0.3T set 1
5 Tundish baking 5.3×2=10.6T set 2
6 Tundish nozzle 　 set 2
baking
7 Casting operation 　 set 2
boxes cantilever
rack
8 200×200 Mould 　 set 3
9 Mould cover 　 set 3
10 Oscillator device 　 set 3
11 Spray header 　 set 3
12 Oriented segment 　 set 3
13 Rigid dummy bar 　 set 3
14 Dummy bar storage device 　 set 3
15 Straightening and 　 set 3
withdrawal machine
16 Straightening and 　 set 1
withdrawal machine
common base
17 Shears approach roller 　 set 3
18 Billet clamping 　 set 3
device
19 Torch cutting 　 set 3
machine
20 Collection cutting 　 set 1
head device and
hanging pot
21 After cutting roller 　 set 3
22 Transport rollerⅠ 　 set 3
23 Transport rollerⅡ 　 set 3
24 Knockout roller 　 set 3
25 Fixed bezel 　 set 3
26 Shifting steel 6m length set 3
machine
27 Collection cooling 　 set 1
bed
28 Caster body cooling include a backwash filter set 1
system
29 Caster cover 　 set 1
30 Automatic Length 　 set 3
System
31 Gas source processor deal instrument gas set 1
32 Steel platform 　 　 1
　 Hydrauli,Lubrication,pneumatic system 　 　 　
1 Host hydraulic station 　 set 1
2 The billet hydraulic station 　 set 1
3 Hydraulic lift tailgate 　 set 2
4 Centralized grease lubrication station 　 set 6
5 Hydraulic piping 　 set 1
6 Lubrication piping 　 set 1
　 CCM 3-Electric 　 　 　
1 Operating station 　 　 　
2 Software Package 　 　 　
3 PLC 　 set 3
4 ET-200 PLC 　 set 1
Host hydraulic station ET-200 PLC
5 Inverter 　 　 　
① W-S machine inverter 　 set 3
(heavy type) power:11 kW
② Shears approach roller inverter power:4KW 　 set 3
