Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall
Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall
Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall
Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall
Specifications
Usage :
Concrete Construction Support
Application :
Building Construction
Alloy Or Not :
Non-Alloy
Size :
Customized Size
Surface Treatment :
Hot-Dip Galvanizing Electrostatic Spraying And Fire-Resistant Coating
Surface treatment :
Galvanized
Material :
Hot rolled steel
Feature :
Anti-Corrosion, Durable
Type :
Slotted/Plain
Color :
Silver
Description

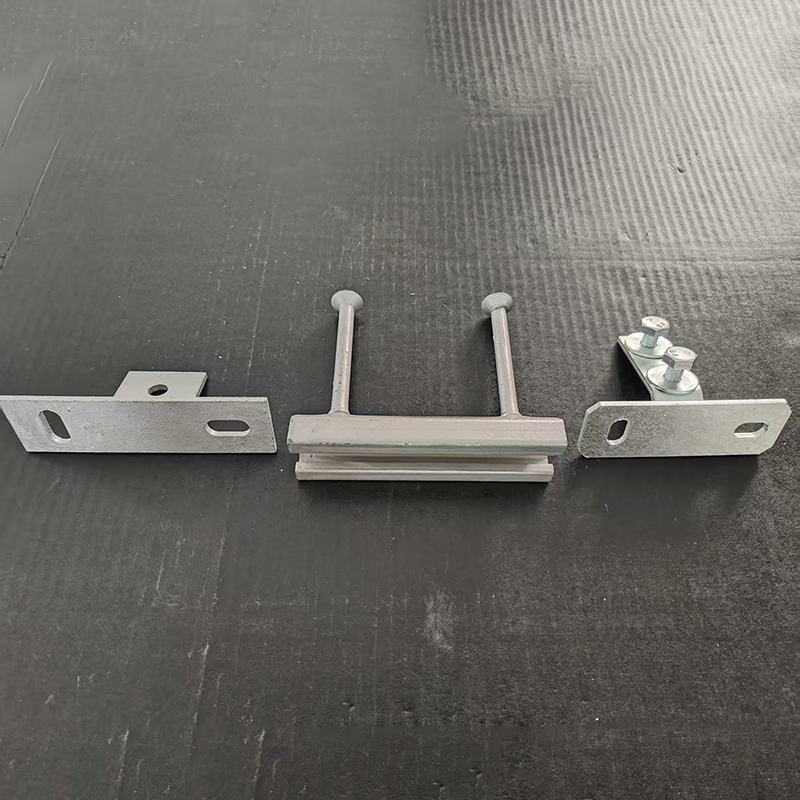

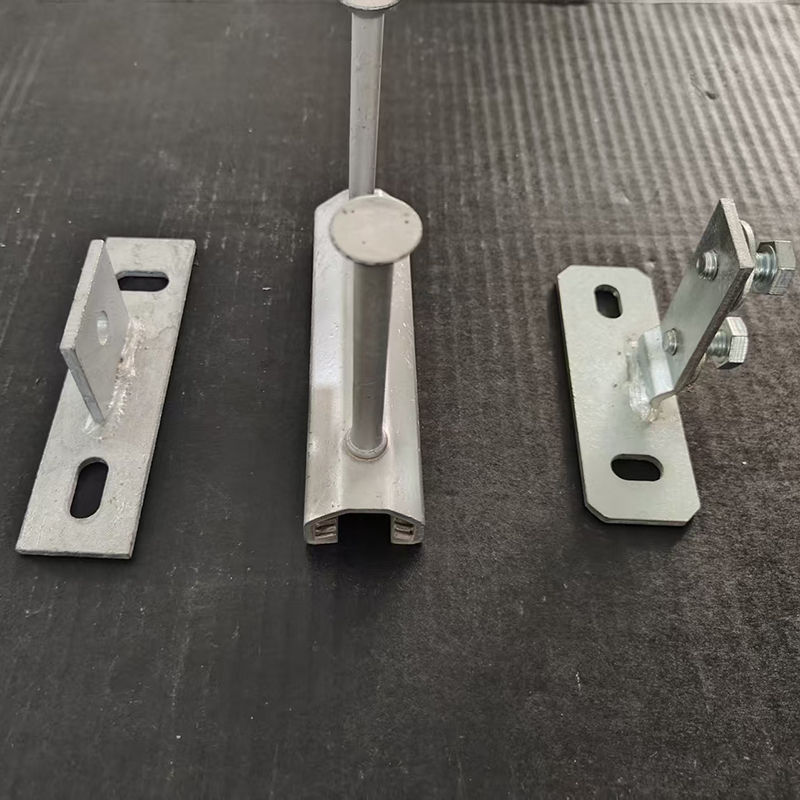

Embedded Channel Special Seismic Support Channel Bolts For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall

Product Description

Equipment foundation embedded base and building concrete embedded parts are indispensable fixed load-bearing components in construction engineering, mechanical and electrical installation, and industrial infrastructure, and belong to pre embedded anchoring accessories. It is mainly processed by combining steel plates, anchor bars, and hot-dip galvanized anchor bolts. It is pre embedded and implanted during the concrete foundation pouring stage, forming an integral load-bearing structure with the concrete matrix. It is designed to provide stable fixed support, load bearing, and anti pull limit for various industrial equipment and building components, and is the core foundation accessory to ensure the accuracy of equipment installation and structural stability in the later stage.

Technical Parameters

Selection Guide for Prebedded Channels Across Different Scenarios
Application Scenario
Key Selection Factors
Material
Typical Load Capacity (Reference)
Key Notes
Curtain Wall Facade
Medium load, corrosion resistance, easy bracket installation
Hot - dip galvanized carbon steel, stainless steel (A4)
Vertical shear force: 35-55 kN
Match with T - bolts of corresponding specifications, ensure embedded depth ≥ 60mm
Subway/Railway Tunnel
High load, curved structure adaptation, strong corrosion resistance
Stainless steel (A4), hot - dip galvanized carbon steel
Vertical shear force: 50-70 kN
Select curved channels for circular tunnel sections, use foam fillers to prevent concrete blocking
Elevator Hoistway
High - precision positioning, high dynamic load, long - term stability
Hot - dip galvanized carbon steel, Q355B steel
Axial tension: 40-60 kN
Ensure the channel is installed in a straight line, the distance between anchors is ≤ 800mm
Power Plant (Electromechanical Equipment Fixing)
High temperature resistance, heavy load, anti - vibration
Stainless steel (A4), heat - resistant galvanized steel
Vertical shear force: 45-65 kN
Check high-temperature impact on material performance, add anti-vibration gaskets if needed

Features

Strong structural integrity: formed by one-time pouring with concrete, forming a rigid connection, uniform load transmission, and no structural damage or water leakage hazards caused by secondary drilling.

High load-bearing and stability: relying on the grip force and frictional resistance between anchor bars/anchor plates and concrete, the tensile, shear, and overturning resistance far exceed that of rear anchor bolts, making it suitable for heavy load, vibration, and seismic scenarios.

High positioning accuracy: Fixed with molds or positioning frames before construction, the error can be controlled within ± 2mm, ensuring zero adjustment for subsequent equipment installation.

Excellent durability and protection: Usually made of hot-dip galvanized, fluorocarbon sprayed or stainless steel materials, combined with a concrete protective layer, it has long corrosion resistance and fatigue life.

Good comprehensive construction benefits: Although detailed design is required in the early stage, it significantly reduces on-site welding/drilling operations, improves installation efficiency, and reduces long-term maintenance costs. ‌‌

Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall

Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall

Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall

Special Seismic Support Embedded Channel For Buried Underground Pipe Gallery Arm Channel Tooth Curtain Wall

FAQ:

Can you provide some samples for me?
Yes, we can provide free samples to you, but the freight need you to bear. Please send sample list by email.

Can provide a catalogue for me?
The electronic version can be submitted by e-mail or the hard copies of catalogs are free but freight should be collected.

Can you guaratee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

Why should I choose you?
(1) Contact us with your detailed inquiry, you will be replied within 24 hours.
(2) You are promised to obtain the best quality, price and service.
(3) We'd like to provide samples for your confirm.
(4) Wide excellent experiences with after-sale service.
(5) Every process will be checked by responsible QC which insures every product's quality.

How does your company do regarding quality control?
Each year we have quality supervision department inspection, and issue inspection reports, each batch of goods will be strictly controlled, the company's internal will have quality regulation, to ensure that every batch of products qualified and best quality.
