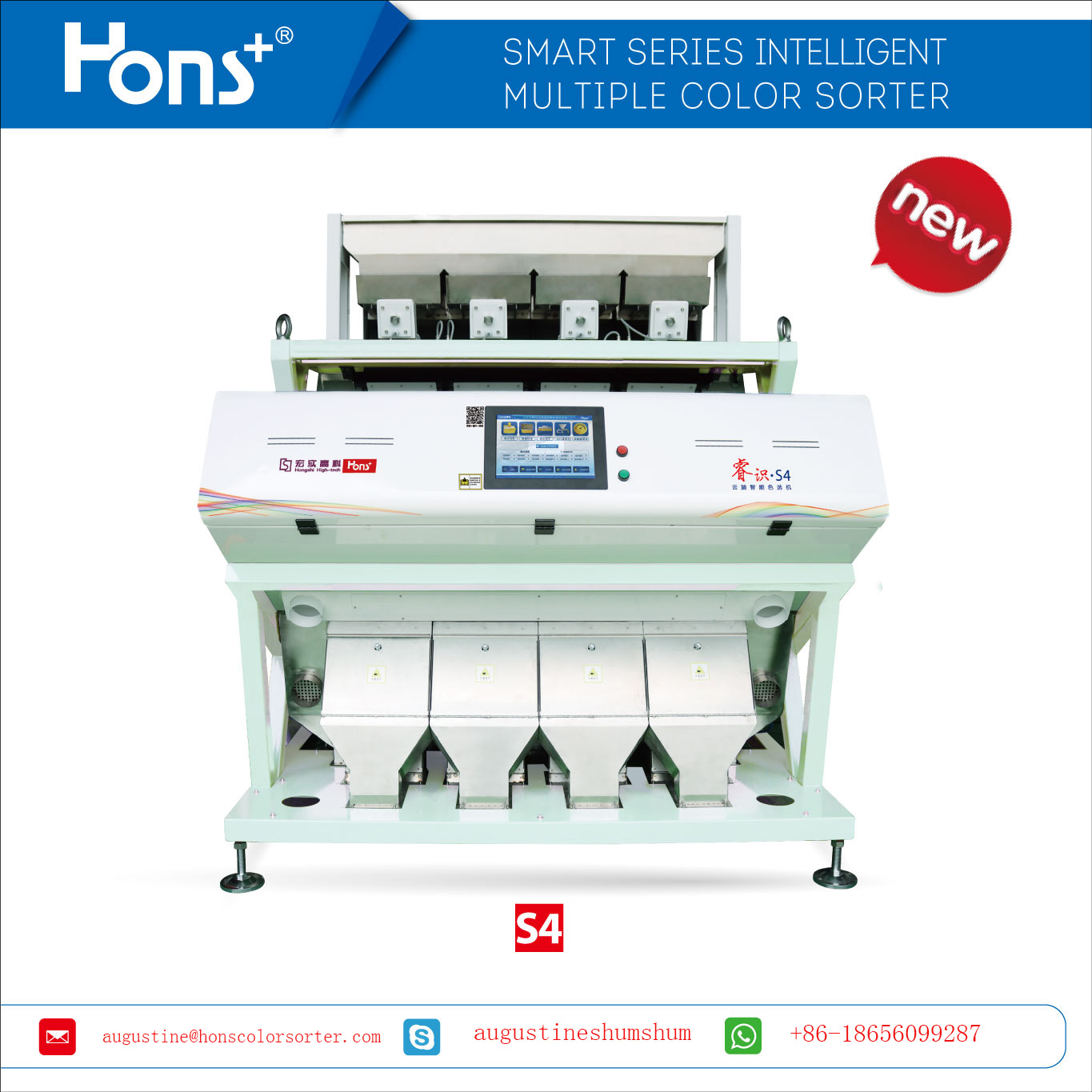

Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Specifications
Brand Name :
Hons
Model Number :
S4
Certification :
ISO9001/SGS/CE
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets per month
Delivery Time :
10-15 Work Days
Packaging Details :
Wooden case
Product name :
seafood color sorter
Voltage(V) :
AC220V/50Hz
Name :
6SXM-252(CCD)
Capacity(T/h) :
3.0~6.0
Power(Kw) :
≤2.6
Weight(Kg) :
1000(±5%)
Dimension(L*W*H mm) :
1880*1595*2040
Color :
White
Channels :
4
Application :
Sorting
Description

Rice Separation CCD Color Sorter Intelligent Engineering Machine

Features:

1) High resolution full color camera.5400 CCD sensor. High definition industrial lens.

2) Human-computer interaction.Image Capture. Holographic Imaging.One-key automation. Automatic System Check.

3) Sorting master .High quality ejector.Intelligent lighting source. Target orientation.

4) Identification expert. Sorting accuracy infinitely close to 99.99%.

5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.

Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter
Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Technical Parameter

Model S1 S2 S3 S4 S5 S6 S7 S8 S10 S12
Capacity(t/h) 0.8~2.0 1.2~2.5 1.5~3 3~6 4~7 5~8 6~10 7~11 7~15 10~18

Voltage

(V)

 AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Power(KW) ﹤1.5 ﹤2 ﹤2.4 ﹤2.6 ﹤3.0 ﹤3.6 ﹤4.0 ﹤4.6 ﹤5.5 ﹤7.0

Air pressure

(Mpa)

 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8

Dimension

(mm)

910*

1620*1550

1220*

1615*1550

1628*

1595*2040

1870*

1595*2040

2210*

1595*2040

2528*

1595*2040

2836*

1595*2040

3152*

1595*2040

3910*

1595*2040

4594*

1595*2100
Weight (Kg) 350 500 800 1000 1250 1400 1600 1800 2250 2700

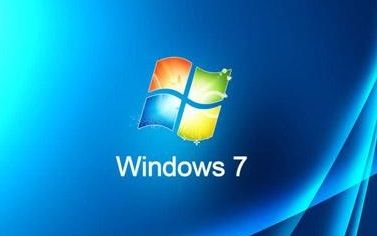

High Sensitivity Sensor Advanced Operation System Self-owned & Developed Photo Sytem

Fast Detection 5400 4 Chutes Intelligent Rice Color SorterFast Detection 5400 4 Chutes Intelligent Rice Color SorterFast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Sorting example

Fast Detection 5400 4 Chutes Intelligent Rice Color SorterFast Detection 5400 4 Chutes Intelligent Rice Color SorterFast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Fast Detection 5400 4 Chutes Intelligent Rice Color SorterFast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Packaging & shipping
Delivery Detail:
Shipped in 15 days after payment
Packaging: Plywood case

Company view

Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter


Workshop view

Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Customers site

Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Exhibition &Team

Fast Detection 5400 4 Chutes Intelligent Rice Color Sorter

Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
