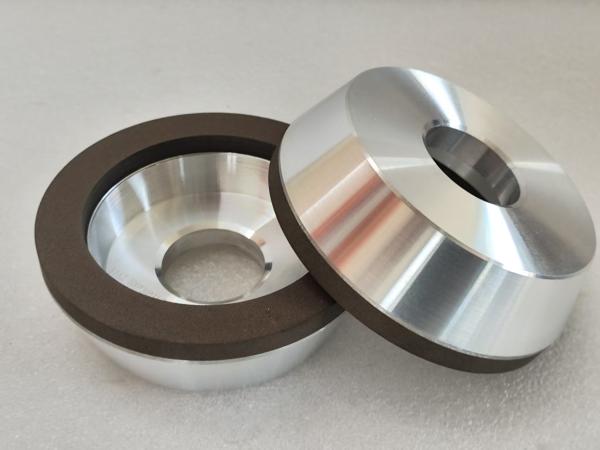

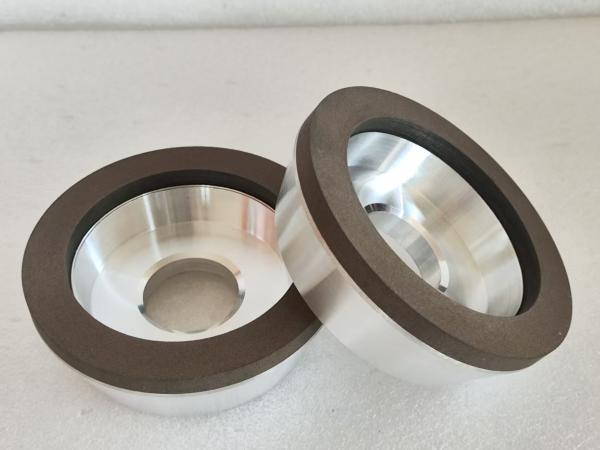

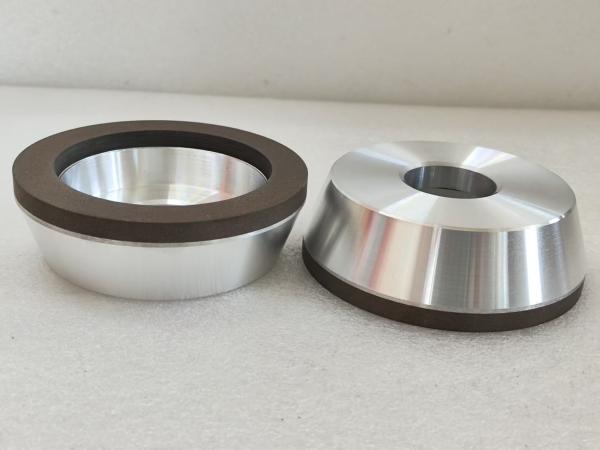

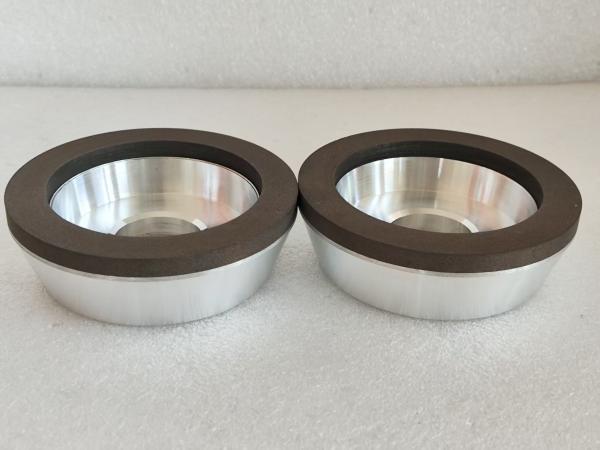

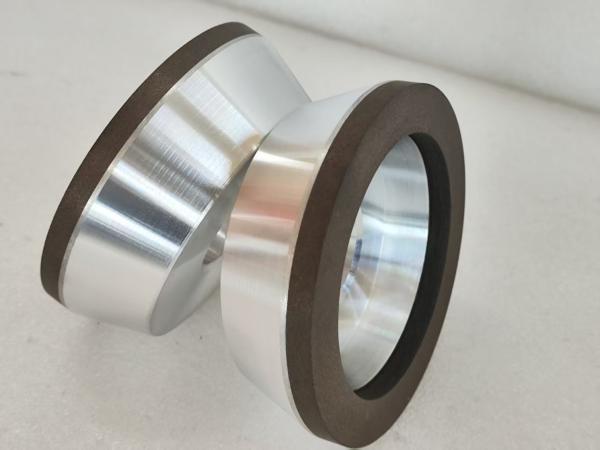

11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc
Specifications
Brand Name :
JC
Model Number :
6A2
Certification :
ISO
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
5-8 work days
Packaging Details :
Wooden box
Package :
Carton Box
wheel Size :
100*30*31.75*12*6mm
Concentration :
C100
Colour :
Gray
Abrasives :
Diamond
Delivery :
By express
Grains :
D64
Description

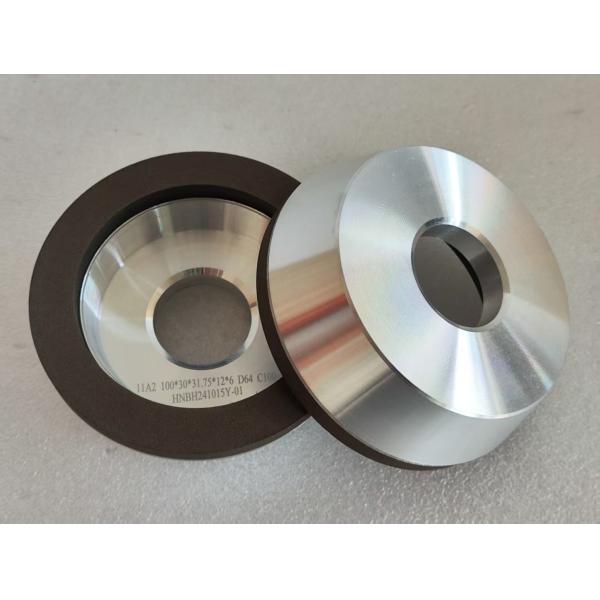

11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc

11A2 resin bond diamond grinding wheel** is a specialized abrasive tool designed for precision grinding of hard, non-ferrous materials, ceramics, and composites.

Grit size incl. Mesh 80/100#(D181), 100/120#(D151), 120/140#(D126), 140/170#(D107), 170/200#(D91), 200/230#(D76), 230/270#(D64), 270/325#(D54), 325/400#(D46)

Diamond** is the hardest known abrasive, ideal for grinding:
- **Carbide tools** (tungsten carbide, PCD, PCBN inserts).
- **Ceramics** (alumina, zirconia, silicon carbide).
- **Glass, sapphire, and brittle composites**.
- *Not suitable for ferrous metals* (carbon reacts with diamond, causing excessive wear).

Resin bond (Bakelite/phenolic)** offers:
- **Smooth cutting action** with fine surface finishes.
- **Good shock absorption**, reducing chipping in brittle materials.
- **Lower heat generation** vs. metal/vitrified bonds.
- Typically used for **fine grits (100–2000#)** and precision grinding.

Size Diameter Thickness Inner hole Grit Size
100mm 30mm 31.75mm

D64


Advantages Over Conventional Wheels
- Longer lifespan than aluminum oxide wheels.
- Better heat dissipation.
- Maintains profile accuracy for precision grinding.

ApplicationsCarbide tool grinding** (end mills, drills, inserts).
- **Optical lens/polishing work**.
- **Ceramic component machining**.
- **Electronics industry** (grinding semiconductor materials).

11A2 Resin Diamond Grinding Wheel 100mm Resinoid Grinding Disc

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;

2. Abrasive, abrasive sand particle and concentration;

3. Adhesive;

4. Wheel application;

5. Pictures and drawings of wheels;

We can then design and quote for you
