Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel
Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel
Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel
Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel
Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel
Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel
Specifications
Brand Name :
JC
Model Number :
11V9
Certification :
ISO
Place of Origin :
China
MOQ :
10pieces
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
10,000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Carton
Description

Product Details

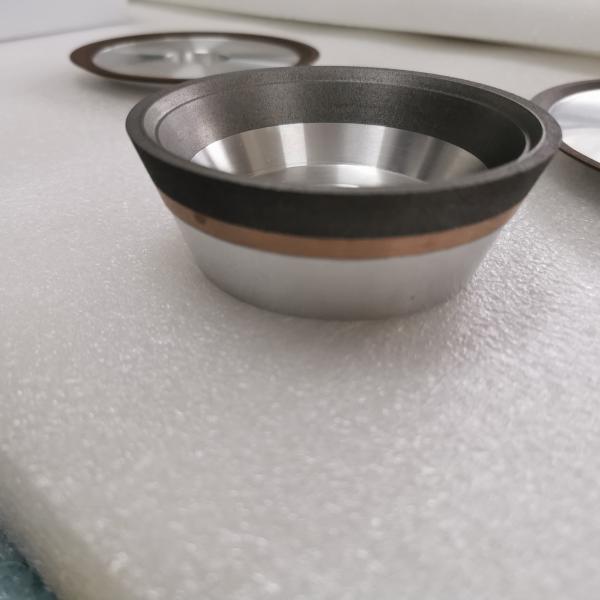

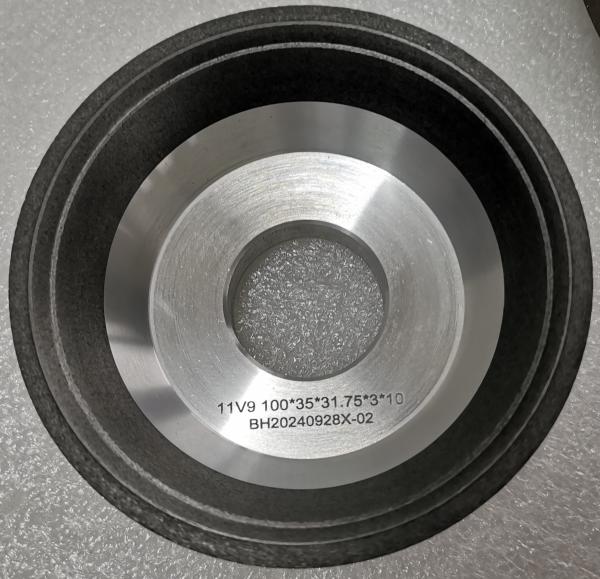

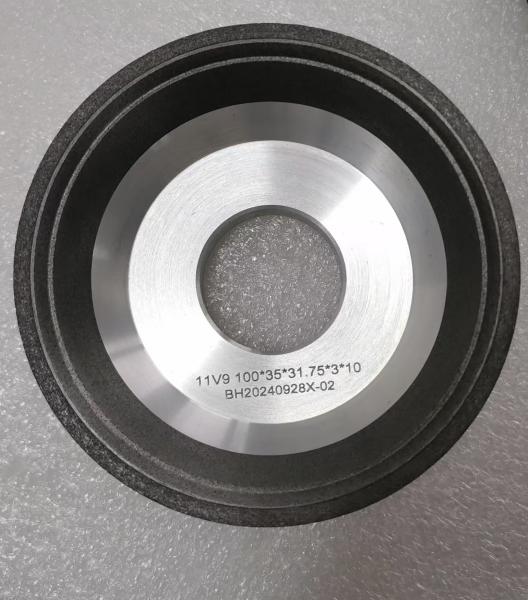

D100mm 11V9 Cup-shaped Resin Grinding Wheel For Carbide Sharpening.

Our company's 11V9-70° Diamond grinding wheel of this shape is used for sharpening and finishing of back and side surfaces of carbide tools.
CBN grinding wheels of this shape is used for sharpening and finishing of back and side surfaces of HSS tools.
Also have bonds for dry grinding.

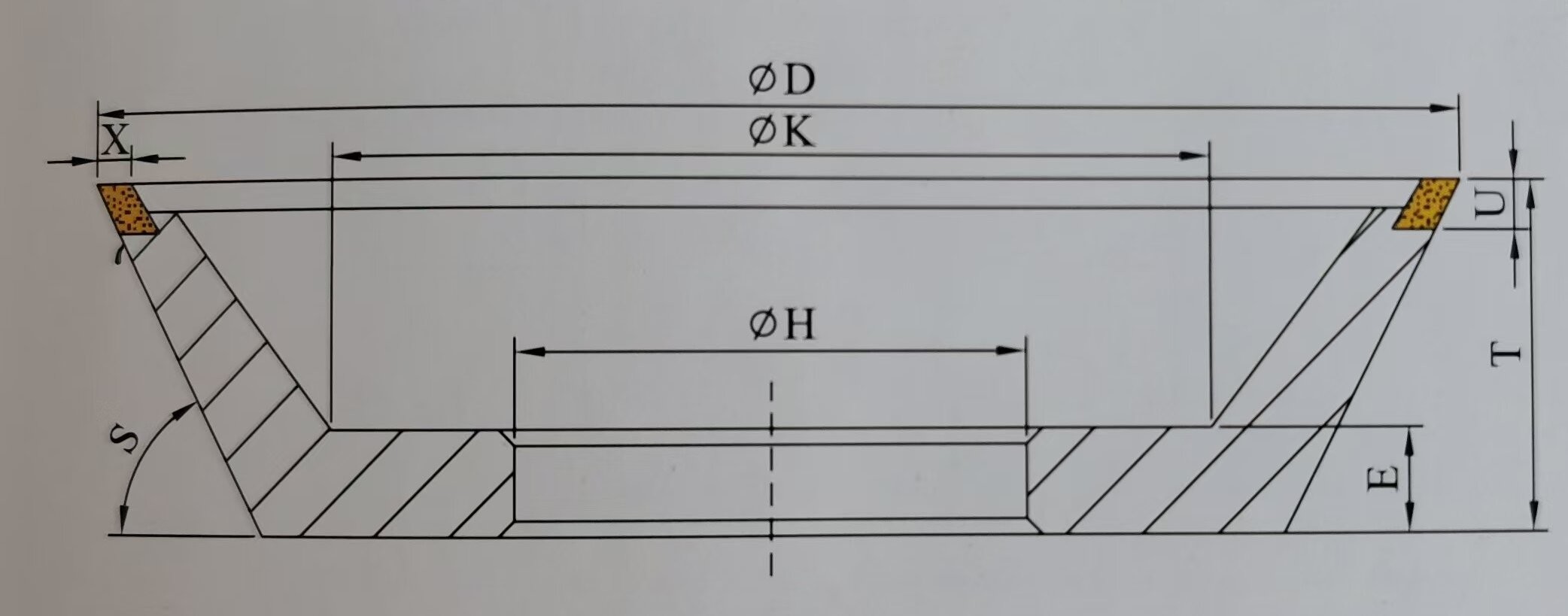

The drawing of D100mm 11V9 Resin Bond Diamond Wheels

Diameter 100mm 11V9 Cup-shaped Resin Grinding Wheel

The Standard size of D100mm 11V9 Resin Bond Diamond Wheels

D T H S X U
30 15 8,10 60° 70°
 1.5,2,3,4,5,10
 5,6,7,8,10
50 25 10,19.05,20
75 25,30,32 19.05,20
90 35,40 19.05,20
100 35,40 19.05,20,31.75,32
125 35,40,45,50 19.05,20,31.75,32
150 35,40,45,50 31.75,32

If you need to customize, please provide the following information:

1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you
