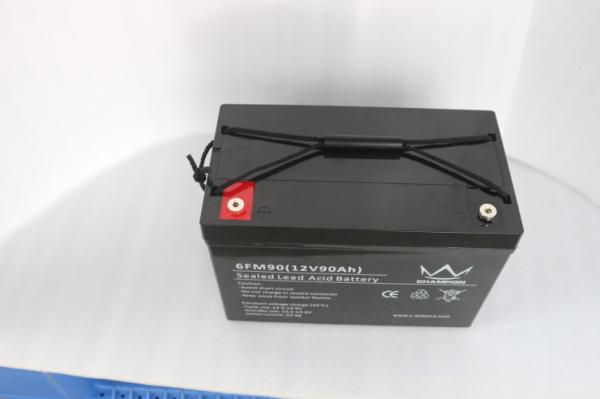

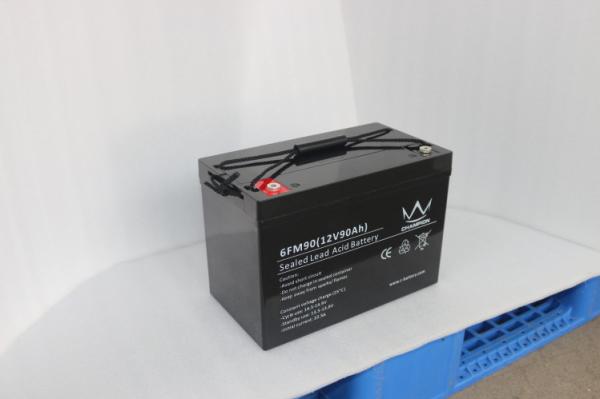

Sulfuric Sealed Lead Acid Battery 12v / Rechargeable Lead Acid Battery
Sulfuric Sealed Lead Acid Battery 12v / Rechargeable Lead Acid Battery
Sulfuric Sealed Lead Acid Battery 12v / Rechargeable Lead Acid Battery
Sulfuric Sealed Lead Acid Battery 12v / Rechargeable Lead Acid Battery
Specifications
Brand Name :
Champion
Model Number :
6FM90
Certification :
CE ; UL
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
30% in advance
Supply Ability :
60,000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton box
Name :
Sealed Lead Acid Battery 12v
Feature :
High Efficiency
Voltage :
12 Volte
Other Name :
Rechargeable Lead Acid Battery
Capacity :
90 AH
Color :
black
Weight :
27 kg
Application :
Telecommunication Equipment
Description

Sulfuric Sealed Lead Acid Battery 12v / Rechargeable Lead Acid Battery

Sealed Lead Acid Battery 12v Applications:

1. Green energy systems (solar, wind, hydro, etc)2. Solar power stations3. Pump systems
4. Telecommunications installations5. Measurement stations6. Boats or buoys
7. Signal station8. Survey and Mapping system9. Emergency lighting
10. Caravans11. Traffic lights12. Street lightening
13. Lawn lamp14. Street signs15. SOS pillars
17. Alarm installations18. Weekend cottage camping


Sealed Lead Acid Battery 12v Specifications:


Nominal Voltage

12V

Nominal Capacity (10 hour rate)

90Ah

Capacity
25°C(77°F)

10 hour rate (12A)

90Ah

3 hour rate (30A)

60Ah

1 hour rate (66A)

36Ah

Internal Resistance

Full Charged Battery 25°C(77°F)

≤10mΩ

Cyclic Life

50%(C10) Depth of discharge

600Times

Float Life

25°C(77°F) Float charge at 13.8V

About 10 Years

Capacity affected by Temperature
(10 hour )

40°C (104°F)

102%

25°C (77°F)

100%

0°C (32°F)

85%

-15°C (5°F)

65%

Self-Discharge
25°C(77°F)

Capacity after 3 month storage

90%

Capacity after 6 month storage

80%

Capacity after 12 month storage

62%

Charge (Constant Voltage) 25°C(77°F)

Cycle

Initial Charging Current Less than 36A
Voltage 14.6-15.0V

Float

Voltage 13.5-13.8V



6FM311231195130155166M669.6
6FM33123310
6FM35123510.5
6FM381238197165170170M6312
6FM401240197165170170M6312.5
6FM40H1241197165170170M6313
6FM421242197165170170M6313.5
6FM451245197165170170M6314
6FM501250229138211214M6615.5
6FM551255M616.5
6FM50A1250229138205210M6615.5
6FM601260260168211214M6619
6FM60E1260260168211214M6618.8
6FM701270260168211214M6621.5
6FM751275260168211214M6622.5
6FM801280260168211214M6623
6FM651265350167179179M6620
6FM80A1280350167179179M6622
6FM90E1290306169211214M6626.5
6FM951295306169211214M6627
6FM80S1280330171214220M6626
6FM90A1290330171214220M6627.3
6FM70S1290330171214220M6624.5
6FM90A1290330171214220M6 27.5
6FM90B1290330171214220M6628
6FM100E12100330171214220M8629
6FM10012100330171214220M8630
6FM11012110330171214220M8632
6FM110B12110330171214220M8633
6FM120A12120409176225225M8634
6FM90S1290406173208238M8628
6FM110S1211032
6FM1201212033
6FM120B12120280265207227M8637.5
6FM110A12110280265207227M8635.5
6FM14012140280265207227M8639.5
6FM13012130280265207227M8637.5
6FM13412135340172282284M8642
6FM110SS12110485172240240M8635
6FM135S12135485172240240M8642
6FM15012150485172240240M8643
6FM150S12150530207210213M8246.5
6FM16012160530207210213M8247.5
6FM1801218052.5
6FM135SS12135522238218221M8249
6FM160S12160522238218221M8247.5
6FM180S12180522238218221M8256
6FM190S1219057.5
6FM2001220060
6FM22012220522238218221M8262
6FM22512225522238218221M8263
6FM240S12240521269220223M8265
6FM25012250521269220223M8271
6FM250A12250521269220223M8271
6FM250E12250521269220223M8269.5


Competitive Advantage:

  1. Ideal for cyclic uses
  2. Good tolerance to higher temperature applications.
  3. ABS containers and covers(UL94HB, UL94V-0) optional.
  4. Safety valve installation for explosion proof.
  5. Higher safety & reliable construction.
