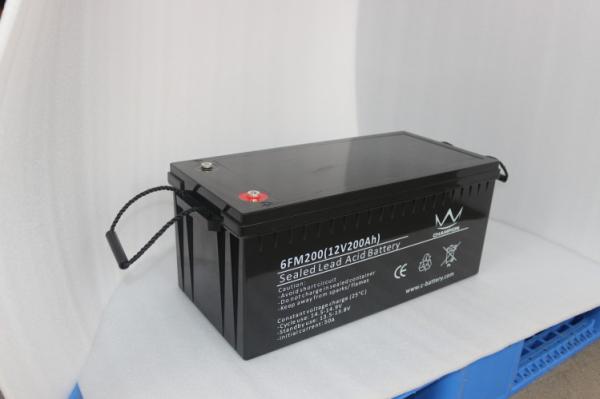

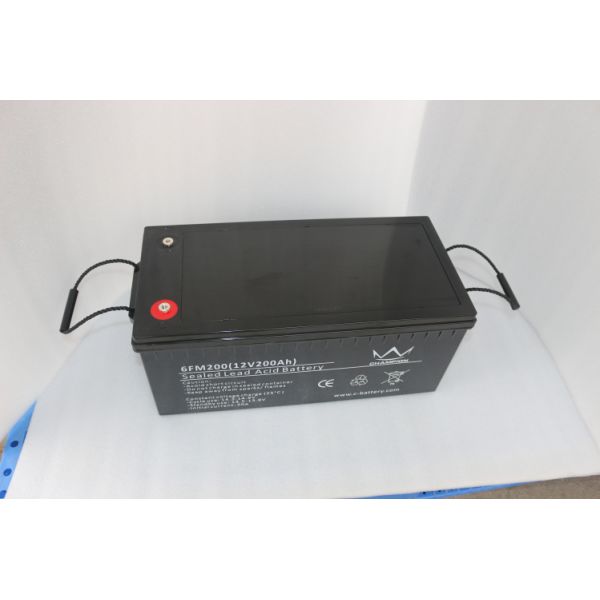

Telecommunication 12V Lead Acid Battery High Resistance To High Current
Telecommunication 12V Lead Acid Battery High Resistance To High Current
Specifications
Brand Name :
Champion
Model Number :
6FM200
Certification :
CE ; UL
Place of Origin :
China
MOQ :
50 pcs
Price :
negotiation
Payment Terms :
30% in advance, T/T
Supply Ability :
500,000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton box
Model Name :
6FM200
Size :
321*176*226 mm
Voltage :
12V
Terminal :
M8
Capacity :
200AH
Color :
Black
Weight :
59 kg
Application :
Inverter,UPS,Solar,Off grid power,On grid power
Description

Telecommunication 12V Lead Acid Battery High Resistance To High Current

12V Lead Acid Battery Description:

1. Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use;

2. High resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds;

3. High resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.

4. High discharging performance: With smooth discharging voltage and mild discharging platform;

Applications:

  • Data Centre (High Rate UPS)

  • Banks & Financial Centre

  • on grid power and off grid power

  • Power Generation Plants

  • Emergency Lighting

  • Emergency Power Supply

  • High Power Backup Supply

  • LED Lighting

  • VAN

  • Wheel chairs

  • Security system"Alarm system" "CCTV"

  • "Video" Camera" "Loudspeaker"

  • Marine

  • Wheel Chair

Specifications:

Model

Nominal

15 min. Rate

Capacity

Dimensions(mm)

Terminal

Weight

Voltage

(Watts/cell)

(AH)

Length

Width

Height

Total Height

±3%(Kg)

(V)

　

　

mm

mm

mm

mm

Type

Kg

6FM12H

12

51

12

151

98

95

101

T2

3.65

6FM18H

12

76

18

181

77

167

167/167

T3/T8

5.30

6FM20H

12

82

20

181

77

166

166

T8

5.75

6FM24H

12

100

24

166

175

125

125/125

T3/T8

7.8

6FM28H

12

110

28

165

125

175

182/175

T6/T8

8.6

6FM33H

12

125

33

195

130

155

180/166

T7/T9

10

6FM45H

12

160

45

197

165

170

170/170

T4/T9

14

6FM65H

12

240

65

350

167

179

186/179

T5/T9

21.5

6FM70H

12

250

70

260

168

211

233/214

T5/T9

22

6FM75H

12

282

75

23

6FM80H

12

290

80

24

6FM90H

12

330

90

306

169

211

233/214

T5/T9

29

6FM100H

12

390

100

330

171

214

224/220

T5/T9

30

6FM120H

12

425

120

409

176

225

225/225

T5/T11

35

6FM134H

12

475

134

342

172

280

285

T11

42

6FM140H

12

500

140

43

6FM150H

12

535

150

485

172

240

242/240

T5/T11

45

6FM200H

12

710

200

522

238

218

238/221

T5/T11

61

3FM200H

6

710

200

321

176

226

246/229

T5/T11

32

Competitive Advantage:

  • Gel condition: The effect of sealed reaction is over 99.9%.
  • Minor self-discharge.
  • Long service lift: The designed lift is over twelve years.
  • Good deep charge cycle performance.
  • Good over-discharging recovery performance.
  • Widely working environment.
Battery FAQ

(1). What’s kinds of battery will you provide?

We have three type battery: AGM, Deep cycle and Gel.There are many different model battery here, we can supply 2v 100ah-3000ah battery, 4v 0.25ah-4v 4.5ah battery, 6v 1.3ah-6v 12ah battery, 12v 0.8ah-12v 250ah battery.


(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.


(3). Can we change the color based on the original?
Yes, the color can be customer-made according to your requirement.


(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.


(5). What kind of guarantee you give?
Our battery products can be used for more than 3 years. For AGM battery our warranty time is 1-3 year and GEl battery warranty time is 3-5 years.If it has quality problem during the warranty time we will change new battery for you free of charge.
