12v 9ah F250 Terminal 2.7A AGM Rechargeable Lead Acid Battery
12v 9ah F250 Terminal 2.7A AGM Rechargeable Lead Acid Battery
12v 9ah F250 Terminal 2.7A AGM Rechargeable Lead Acid Battery
12v 9ah F250 Terminal 2.7A AGM Rechargeable Lead Acid Battery
Specifications
Brand Name :
Champion
Model Number :
6FM9G
Certification :
CE ; UL
Place of Origin :
China
MOQ :
500
Price :
negotiation
Payment Terms :
30% in advance, T/T
Supply Ability :
1,000,000 pieces per month
Delivery Time :
25 days

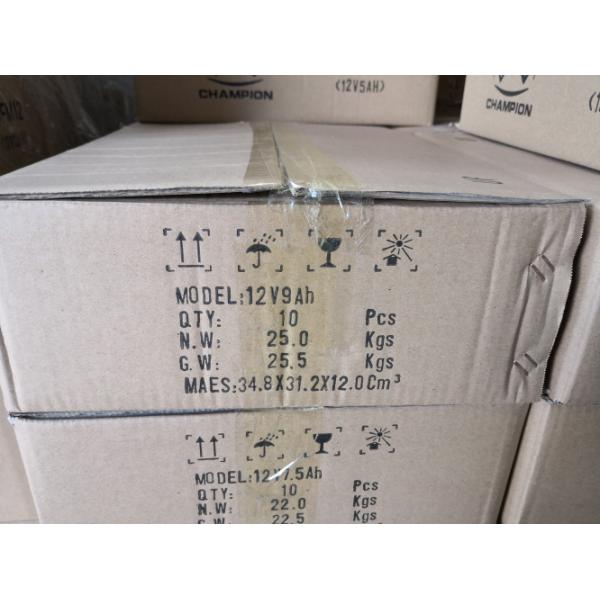

Packaging Details :
Carton box
Model Name :
6FM9G
Size :
151*65*94 mm
Voltage :
12V
Capacity :
9AH
Terminal :
F250
Color :
Black
Weight :
2.5kg
Application :
UPS ,scooter
Description


Long Life Free Maintenance rechargeable Lead Acid agm 12v 9ah

Description:

Quick Details

Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CHAMPION
Model Number:
6FM9G
Usage:
UPS, backup power supply
Voltage:
12v
Sealed Type:
Sealed
Maintenance Type:
Free
Size:
151*65*94mm
Weight:
2.5kg
Nominal Capacity:
9AH
Warranty:
13 Months
Color:
Black, green or other for option
OEM:
Available
Container Material:
ABS
Certificates:
CE/ROHS



Specification:

Product Name

12v 9ah battery

Capacity
(25°C)

20HR(10.5V)

9Ah

10HR(10.5V)

8.4Ah

1HR(9.60V)

5.8Ah



Dimension

Length

151±1.5mm (5.94inch)

Width

65±1mm (2.56inch)

Height

94±1mm (3.70inch)

Total Height

100±1mm (3.94inch)

Approx. Weight

2.5kg

Terminal type

F1/F2

Internal resistance
(Fully charged, 25°C)

Approx. 19mΩ


Capacity affected by temperature (20HR)

40°C

102%

25°C

100%

0°C

85%

-15°C

65%


Self-discharge
(25°C)

3 month

Remaining Capacity: 91%

6 month

Remaining Capacity: 82%

12 month

Remaining Capacity: 65%

Nominal operating
temperature

25°C±3°C(77°F±5°F)

Operating temperature range

Discharge

-15°C~50°C(5°F~122°F)

Charge

-10°C~50°C(14°F~122°F)

Storage

-20°C~50°C(-4°F~122°F)


Float charging voltage(25°C)

13.60 to 13.80V
Temperature compensation:
-18mV/°C


Cyclic charging voltage(25°C)

14.50 to 14.90V
Temperature compensation:
-30mV/°C

Maximum charging current

2.7A

Terminal material

Copper

Maximum discharge current

135A(5 sec.)

Designed floating life(20°C)

3~5 years



Competitive Advantage:

  1. Sealed and maintenance free, safety, no leakage
  2. ABS containers and covers optional
  3. With safety valve
  4. Made by No 8 largest battery factory in China
  5. High quality and reliability
  6. Exceptional deep discharge recovery
  7. Flexible design for multiple installation
  8. Wide operating temp. range
  9. High capability, high energy density
  10. Long service life
  11. Excellent safety, discharging, shock-proof and impact proof performance
  12. Good resistance to overdischarge, overcharge and high current

Key Features :

♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically

Applications:
1)Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and Broadcasting Stations.
2)Motivity Field: Robots, Electric Toys, Electric Tools & Portable Vacuum Cleaners
3)Solar & Wind Power Generation Systems
4)Signal System & Emergency Lighting Systems
5)EPS & UPS Systems
