Specifications
Brand Name :
Champion
Model Number :
6FM9
Certification :
CE ; UL
Place of Origin :
China
MOQ :
Negotiation
Price :
negotiation
Payment Terms :
30% in advance, T/T
Supply Ability :
50,000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton box
Model Name :
Sealed Lead Acid Battery
Size :
151*65*94 mm
Voltage :
2V
Terminal :
F1/F2
Capacity :
200AH
Color :
Black
Weight :
2.5KG
Application :
EPS And UPS Battery Backup
Description

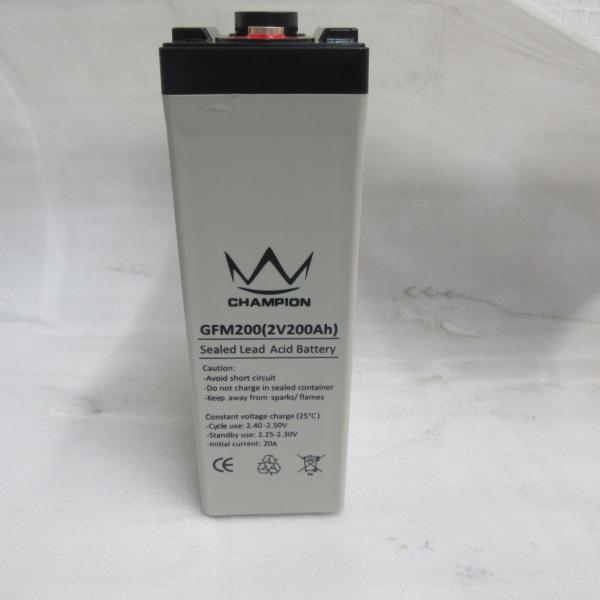

Good Opacity 2v 200ah Sealed Lead Acid Battery For EPS And UPS Battery Backup

Description:

1) Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of batteries, no need to check the specific gravity of the electrolyte or add water.

2) Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.

3) Long Service Life
A unique corrosion-resistant grid alloy ensures batteries have long service life.

4) Low Self Discharge
Using high purity raw materials ensures champion batteries have less self-discharge.

5) Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.

6) Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.

Feature:

1. High-strength ABS plastic battery slot and cover, compact structure. good resistance.

2. Special lead-based multi-alloy grid, with small internal resistance and corrosion resistance.

3. good opacity, strong charge acceptance.

4. New electrode plate manufacturing process, high utilization rate of active materials.

5. Multi-layer sealing technology and special sealing glue ensure no leakage, no acid mist .

Gel Type Batteries Application:

1. Solar and wind energy storage system
2. EPS and UPS battery backup

3. Signal system , emergency lighting system , security system


EPS And UPS Battery Backup Specifications:

12V Batteries
Model Voltage Capacity Dimension(mm) Terminal Terminal Weight
(V) (Ah) L W H TH Type Position (Kg±5%)
6FM0.8 12 0.8 96 25 62 62 AMP 0.34
6FM1.2 12 1.2 97 43 52 58 F1 2 0.55
6FM2 12 2.0 178 35 61 67 F1 6 0.80
6FM2.2 12 2.2 178 35 61 67 F1 6 0.83
6FM2.3 12 2.3 178 35 61 67 F1 6 0.90
6FM2E 12 2.0 70 48 98 104 F1 6 0.75
6FM2.3E 12 2.3 0.80
6FM2.6 12 2.6 0.85
6FM2.5 12 2.5 104 48 70 70 +F2-F1 2 0.90
6FM2.8B 12 2.8 0.98
6FM2.8 12 2.8 67 67 97 103 F1 6 1.00
6FM2.8A 12 2.8 132 33 98 104 F1 6 1.00
6FM2.9 12 2.9 79 56 99 105 F1 3 1.05
6FM3.2 12 3.2 134 67 61 67 F1 2 1.25
6FM4 12 4.0 90 70 101 107 F1/F2 6 1.36
6FM7 12 7.0 151 65 94 100 F1/F2 1 2.1
6FM7A 12 7.0 151 65 94 100 F1/F2 1 2.15
6FM7.2 12 7.2 151 65 94 100 F1/F2 1 2.20
6FM7.2A 12 7.2 151 65 94 100 F1/F2 1 2.25
6FM7.5 12 7.5 151 65 94 100 F1/F2 1 2.30
6FM8.5 12 8.5 151 65 94 100 F1/F2 1 2.43
6FM9 12 9.0 151 65 94 100 F1/F2 1 2.50



Competitive Advantage:
1> High reliability, CE, UL and ISO certified.
2> Low self-discharge, less than 3% of capacity per month at 25°C
3> Safety valve installation for explosion proof

AGM 2v200ah Sealed Lead Acid Battery For EPS UPS Backup
