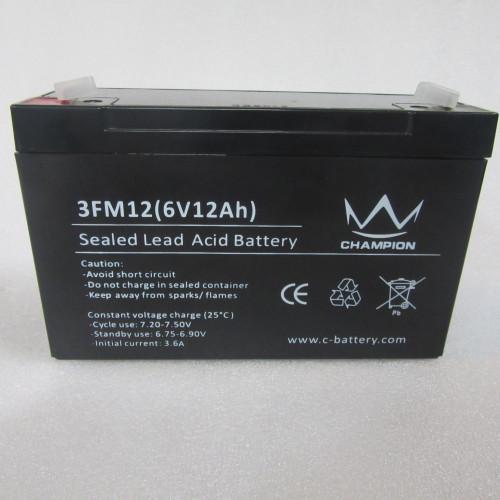

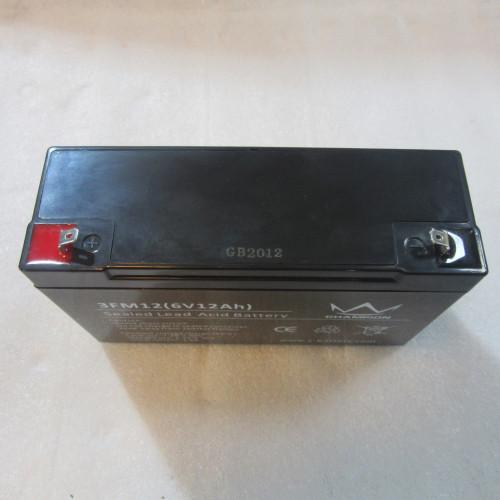

EPS UPS Carbon Lead Acid Battery 6v12ah Agm Leakproof
EPS UPS Carbon Lead Acid Battery 6v12ah Agm Leakproof
EPS UPS Carbon Lead Acid Battery 6v12ah Agm Leakproof
EPS UPS Carbon Lead Acid Battery 6v12ah Agm Leakproof
Specifications
Brand Name :
Champion
Model Number :
3FM20
Certification :
CE ; UL
Place of Origin :
China
MOQ :
100 pcs
Price :
negotiation
Payment Terms :
30% in advance, T/T
Supply Ability :
1,000,000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton box
Model Name :
3FM20 Dry Lead Acid Battery
Size :
157*83*125mm
Voltage :
6V
Terminal :
M5
Capacity :
12ah
Color :
Black
Feature :
Leakproof
Application :
alarm system
Description

EPS UPS System Lead Carbon Lead Acid Charges Battery 6v 12ah Agm Battery

6V 12Ah Dry Lead Acid Battery Specifications:

Model: 3FM10

Nominal voltage: 6V

Rated capacity: 10Ah /20 hour rate

Dimension: 151*50*100 mm

Net Weight: 1.65 Kg±0.02Kg

Terminal Type: F1/F2

Quantity per 20FT: About 12,000 PCS

Model Voltage Capacity Dimension(mm) Terminal Terminal Weight
(V) (Ah) L W H TH Type Position (Kg±5%)
3FM1.2 6 1.2 97 24 52 58 F1 6 0.29
3FM2.3 6 2.3 43 37 76 76 / / 0.34
3FM2.8 6 2.8 66 33 97 104 F1 4 0.50
3FM3 6 3.0 66 33 97 104 F1 4 0.57
3FM3.2 6 3.2 134 35 61 67 F1 6 0.65
3FM3.5S 6 3.5 70 47 101 107 F1 4 0.62
3FM2.5 6 2.5 70 47 101 107 F2 4 0.56
3FM4E 6 4.0 70 47 101 107 F1 4 0.66
3FM4 6 4.0 70 47 101 107 F1 4 0.68
3FM4.2 6 4.2 70 47 101 107 F1 4 0.71
3FM4.5 6 4.5 70 47 101 107 F1 4 0.75
3FM5 6 5.0 70 47 101 107 F1 4 0.80
3FM6.5 6 6.5 151 34 94 100 F1/F2 6 1.05
3FM7 6 7.0 151 34 94 100 F1/F2 6 1.10
3FM7.2 6 7.2 151 34 94 100 F1/F2 6 1.15
3FM7.5 6 7.5 151 34 94 100 F1/F2 6 1.18
3FM8 6 8.0 99 58 109 113 F1 6 1.00
3FM9 6 9.0 151 34 94 100 F1/F2 6 1.30
3FM10 6 10.0 151 50 94 100 F1/F2 6 1.55
3FM10H 6 10.0 151 50 94 100 F1/F2 6 1.65
3FM12E 6 12.0 151 50 94 100 F1/F2 6 1.70
3FM12 6 12.0 151 50 94 100 F1/F2 6 1.75
3FM12H 6 12.0 151 50 94 100 F1/F2 6 1.80
3FM20 6 20.0 157 83 125 130 F17 6 3.00
3FM36 6 36 162 88 164 170 F2 5 5.5
3FM42 6 42 6.1
3FM100 6 100 194 170 205 210 M8 4 15.5
3FM150 6 150 260 180 245 250 M8 5 23
3FM180 6 180 307 169 220 225 M8 5 27
3FM200A 6 200 M8 29
3FM200 6 200 321 176 226 229 M8 4 29.5
3FM225 6 225 321 176 226 229 M6 5 31
3FM300 6 300 295 178 345 348 M8 5 47

6V 12Ah Dry Lead Acid Battery Applications:

1. lighting system

2. security system

3. electric utilities

4. telecommunication system

5. ups system

6. emergency power system

7. medical equipment

8. renewable energy system

EPS UPS Carbon Lead Acid Battery 6v12ah Agm Leakproof

Competitive Advantage:

1. Long service life:up to 5-10 years @20°C

2. Low self-discharge:about 3% @ 20°C

3. No memory effect after repetitious usage or discharges

4. Seald construction and leakproof

5.Wide operating temperature(-15°C~45°C)

6.AGM separator for gas recombination of up to 99%

7.Certificate:CE UL ISO9001

EPS UPS Carbon Lead Acid Battery 6v12ah Agm Leakproof
