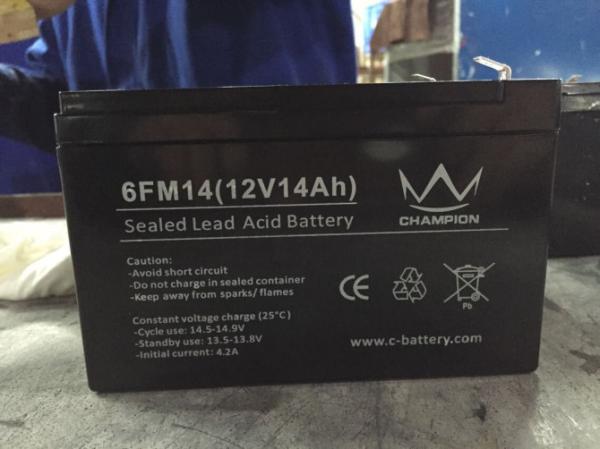

Gray 14ah 12 Voltage High Capacity Lead Acid Battery Rechargeable in Electric Bicycle
Gray 14ah 12 Voltage High Capacity Lead Acid Battery Rechargeable in Electric Bicycle
Specifications
Brand Name :
Champion
Model Number :
6FM14
Certification :
CE ; UL
Place of Origin :
China
MOQ :
50
Price :
negotiation
Payment Terms :
30% in advance
Supply Ability :
500,000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton box
Model Name :
6FM14
Size :
151*98*95 mm
Voltage :
12V
Terminal :
F250
Capacity :
14AH
Color :
black
Weight :
3.4kg
Application :
Solar,UPS,Inverter
Description

High Capacity Lead Acid Battery Rechargeable 12v 14ah inverter battery

Description:

Place of Origin:
China (Mainland)
 Brand Name:
CHAMPION
 Model Number:
12v14ah
Usage:
UPS
 Voltage:
12v
 Sealed Type:
Sealed
Maintenance Type:
Free
 Size:
151*98*93*99MM
 Weight:
3.4kg
Nominal Capacity:
14ah
 Terminal:
F2
 Color:
Grey or Black

Applications:

Uninterruptible power supplies; Golf cart, Electric vehicle; Electric powered bicycle and wheelchairs; Marine equipment; Communication equipment; Power tools; Solar powered systems; Telecommunication systems; Fire & security systems,Inverter power system

Specifications:

Cells per Unit

6

Normal Voltage

12V

Capacity

14Ah@20Hr-rate to 1.75V per cell@25℃

Weight

Approx.(3.4 ±3)%kg

Maximum Discharge Current

125A(5sec)

Internal Resistance

Approx. 17mΩ full charged @25℃

Operating

Temperature

Range

Discharge: -20℃~60℃

Charge: 0℃~50℃

Storage: -20℃~60℃

Nominal Operating

Temperature Range

25℃±3℃

Float Charging Voltage

13.7~13.9VDC/unit Average @25℃

Maximum Charging Current

4A

Equalization and Cycle Service

14.4V~15.0VDC/unit Average @ 25℃

Self Discharge

Self-discharge ratio less than 3%per month at 25℃.

Terminal

F2(0.250)

Container Material

ABS(UL94-HB)

*Flammability resistance of (UL94-V0) can be available upon request

Competitive Advantage:

  1. Professional and global manufacturer in Sealed lead-acid battery with over than 15 years experience.
  2. Competitive price with reliable quality.
  3. Fast delivery and leading time.
  4. OEM acceptable but same price

Gray 14ah 12 Voltage High Capacity Lead Acid Battery Rechargeable in Electric Bicycle
