Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
Specifications
Brand Name :
Libo
Model Number :
RG500 cable
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Place of Origin :
China
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Payment Terms :
T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability :
6,000KM per month
Delivery Time :
Within 10 days

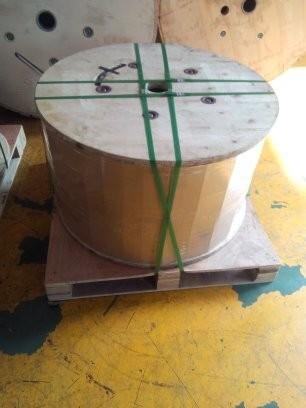

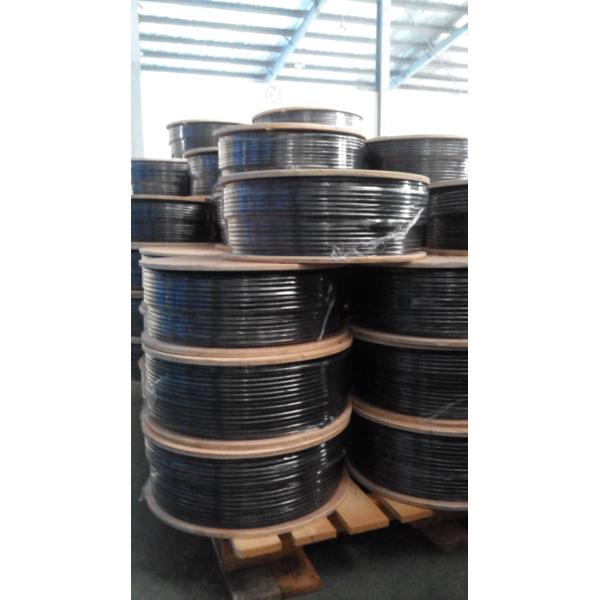

Packaging Details :
100m/200m/305m/1000ft or according to client’s request
Description

Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket

Applications:

  1. CATV-community antenna television
  2. CCTV-closed-circuit television
  3. DBS-direct broadcasting satellite

Product description:

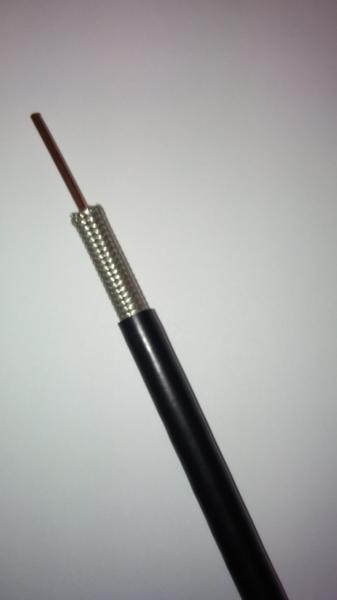

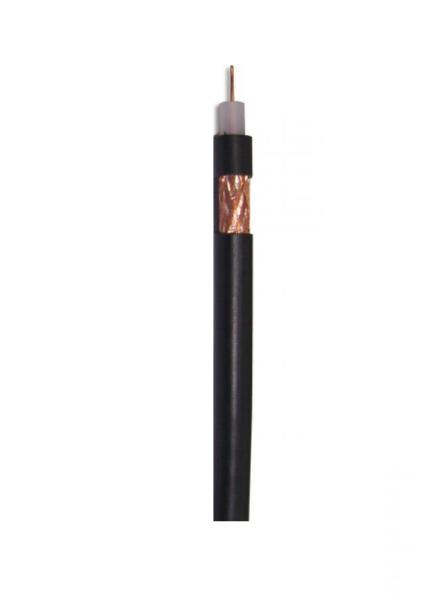

Inner conductor is oxygen free bare copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% bare copper wire braid; PE for outer sheath.

Center conductor:

Oxygen free bare copper

Nominal diameter: 2.77mm

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 11.43mm

Shield:

1st shield: BAPA

2nd shield: bare copper wire braid, 0.16x 8ends x24 carry, pitch is 38mm, 82% coverage.

PE Jacket:

Nominal diameter over jacket: 14.43mm

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 86% nominal

V.S.W.R: 1.25

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

10

0.90

50

1.90

150

1.86

250

3.39

350

4.38

450

5.20

750

5.82

864

7.29

1000

8.40


Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Braiding RG Type Coxial Cable CATV RG500 24 ends Braiding Cable With PE Jacket
