75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number :
RG500 cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :

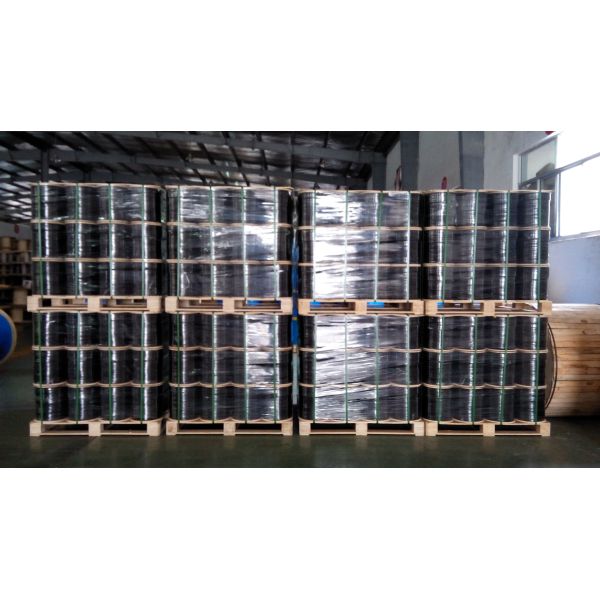

100m/200m/305m/1000ft or according to client’s request
Delivery Time :
Within 10 days
Payment Terms :
T/T, L/C
Supply Ability :
6,000KM per month
Jacket :
PE
Type :
Coaxial cable CCTV
Color :
Black
Application :
satellite
Shield :
Al Foil+braiding
Description

75 ohm RG500 Coaxial Cable For CCTV System, Braiding RG500 CATV Coaxial Cable

Product description:

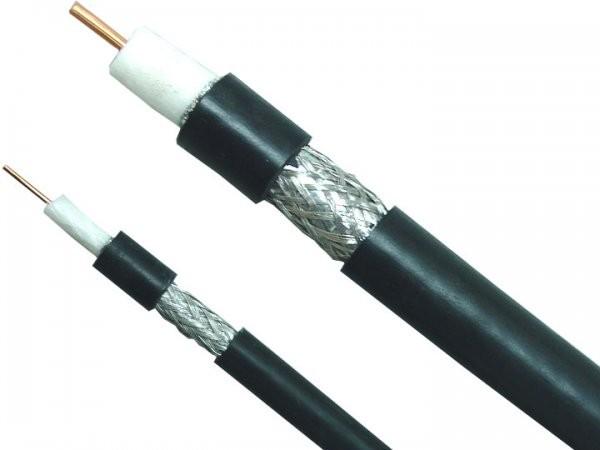

Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% aluminum wire braid; PE for outer sheath.

Center conductor:

Bare copper

Nominal diameter: 2.77mm

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 11.43mm

Shield:

1st shield: BAPA

2nd shield: aluminum wire braid, 0.16x 8ends x24 carry, pitch is 38mm, 82% coverage.

PE Jacket:

Nominal diameter over jacket: 14.43mm

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 86% nominal

V.S.W.R: 1.25

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

10

0.90

50

1.90

150

1.86

250

3.39

350

4.38

450

5.20

750

5.82

864

7.29

1000

8.40

Applications:

  1. CATV-community antenna television
  2. CCTV-closed-circuit television
  3. DBS-direct broadcasting satellite


Competitive Advantage:

Outstanding electrical performance sends all the right signals.

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, we offer products with short lead-time and high quanlity.
  • Our production and testing procedures all strictly follow requirement of ISO9000, and ISO14000.
  • Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies or dealers since 1994.75 ohm RG500 Coaxial Cable For CCTV System Braiding CATV Coaxial Cable
