12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System
12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System
12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System
12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System
12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System
12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number :
12D-FB coaxial cable
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :
100/200m/305/1000FT or according to client’s request
Delivery Time :
Within 2 weeks
Payment Terms :
T/T, L/C,DP
Supply Ability :
8,000KM per month
Description

12D-FB Coaxial Cable with PE Jacket , Braided 50 ohm Cable for 3G GSM CDMA Telecom System

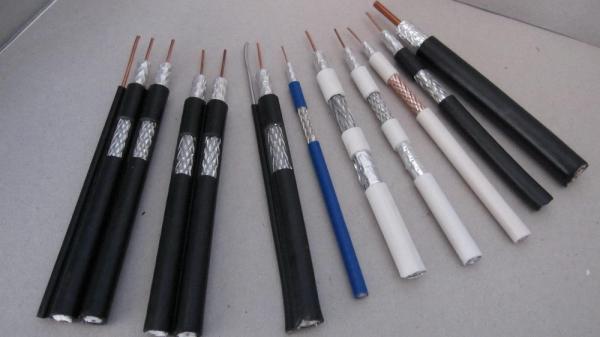

10D-FB coaxial cable, bare copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, AL foil+ tinned copper wire as shield, PVC or PE for outer jacket.

Applications

10D-FB coaxial cable is used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, and aeronautics and space industry, precise instrument.

Specifications:



construction

Testing item

Unit

Standard

Inner conductor

material

-

Bare Copper

diameter

mm

4.40+/-0.01

Dielectric

material

-

foamed PE

diameter

mm

12.40mm

1st shield, tape

material

-

BAPA

2nd shield, braid

material

-

Tinned copper wire

Electrical properties

coverage

%

85%

jacket

PVC

mm

15.60+/-0.2mm

Nominal velocity of propagation

%

81%

Capacitance

pF/M

84

Characteristic impedance

Ω

50 +/-3

V.S.W.R

1.25

Attenuation
20℃(max)

150MHZ

dB/100m

3.60

200MHZ

4.20

280MHZ

4.60

350MHZ

5.20

400MHZ

6.00

800MHZ

8.30

900 MHZ

9.30

1200 MHZ

10.70

1500 MHZ

11.80

1900 MHZ

13.80

2000 MHZ

14.40

2400 MHZ

15.90

3000 MHZ

18.30


Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
