SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
Specifications
Place of Origin :
China
Brand Name :
Libo
Certification :
CE, ISO9000, ISO14001,RoSH, MSHA
Model Number :
Leaky feeder cable MSLYFVE-50-9
MOQ :
0.1KM
Price :
Call or e-mail to get the latest price
Packaging Details :

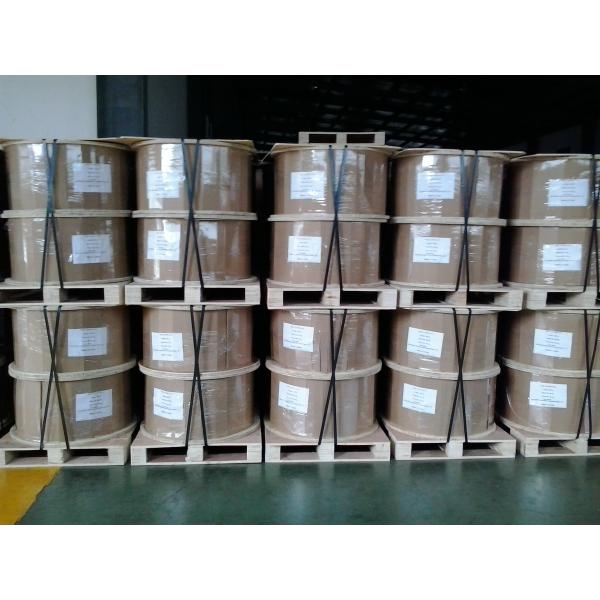

350m/500m/1000m or according to client’s request
Delivery Time :
5 days
Payment Terms :
T/T, L/C,DP
Supply Ability :
1000 KM per month
Description

SLYWV-50-9 Leaky Feeder Cable , Underground VHF Leaky Feeder Cable For Mines Communication

Quick Details:

  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable

Product description:

The standard length is 350m or 500m with a yellow outer jacket.The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe.

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

Applications:

  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection

Specification:

Inner conductor

3.5mm copper clad aluminum

Dielectric

8.8mm

Outer conductor

0.2x84 bare copper wire

Outer jacket

PVC(PE+PVC)

Frequency

5 to 500MHZ

impedance

50 ohms+/-2

Rated power

≤4dB/m @60MHZ

≤5dB/m@150MHZ

Couple loss

75±5@60MHZ

75±5@150MHZ

Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.SLYWV-50-9 Leaky Feeder Cable , Underground VHFLeaky Feeder Cable RNG-500 leaky feeder cable For Mines Communication
