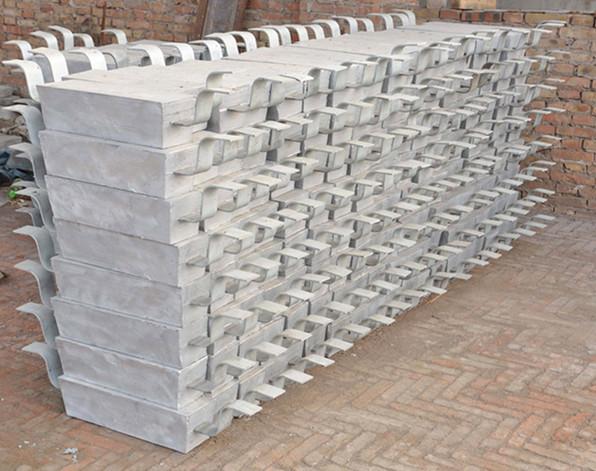

Customized Silver Sacrificial Aluminum Anode For Cathodic Protection
Customized Silver Sacrificial Aluminum Anode For Cathodic Protection
Specifications
Brand Name :
High Broad or OEM aluminium anode
Model Number :
Aluminium anode
Certification :
ISO,ASTM G97
Place of Origin :
China
MOQ :
1 piece for High quality Aluminum Anode for cathodic protection
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union,Paypal
Supply Ability :
500Ton per week
Delivery Time :
5-10days after received payment.
Packaging Details :
Aluminum anode on pallet
Product Name :
High quality Aluminum Anode for cathodic protection
Application :
sacrificial anode for cathodic protection
Material :
Aluminium anode
Keywords :
Aluminum sacrificial Anode
Customized size :
Customized size available
color :
silver
Description

High quality Aluminum Anode for cathodic protection

Aluminum anodes can be manufactured with a wide variety of core configurations, to accommodate different anode specifications and applications such as vessel,,Mechanic equipment,Ballast Tank,Tank innter,Seashore facility,Seabed pipeline,Dock steel structure,Marine platform etc.

Aluminum Anode

Chemical Composition

Type Alloy Element
Zn In Si Cu Fe Hg Cd Other Al
Each Total
HB- I 2.80-6.50 0.01-0.02 0.08-0.2 0.006max 0.12max - 0.002 max 0.02 max

0.05

max

 Balance
HB- 2 4.75-5.75 0.016-0.02 0.08-0.12 0.003max 0.06max - 0.002max

0.02

max

0.05

max

 Balance
HB-3 4.0-6.5 0.014-0.02 0.08-0.2 0.004max 0.09max 0.001max -

0.02

max

0.1

max

 Balance

Electrochemical Performance

Type

Electrode Potential

-V(vs Cu/CuSO4)

Current Efficiency

%(vs Cu/CuSO4)

Generating Current

(A.h)/kg(vs Cu/CuSO4)
HB- I 1.57 85 1150
HB- 2 1.15 85 1150

Aluminum Hull Anode

Anode

Weight

(kg)

Cross Sec.

(WxH)mm

Length w/o strap

(La)mm

Length w/o strap

(Lc)mm
HM-545-A 5.45 114.3x57.2 355.6 482.6
HM-908-A 9.08 114.3x57.2 609,6 736.6
HM-1040-A 10.40 127.0x49.0 610.0 610.0
HM-1320-A 13.20 127.0x64.0 619.0 619.0

Aluminum Ballast Tank Anode

Anode

Weight

(kg)

Cross Sec.

(WxH)mm

Length

(La)mm

Length Core

(Lc)mm
HM-9-CC 9.53 50.8x50.8 1219.2 914.4
HM-11-CC 11.8 50.8x50.8 1524 1219.2
HM-13-CC 13.6 63.5x63.5 1219.2 914.4
HM-17-CC 17.7 63.5x63.5 1524 1219.2
HM-21-CC 21.8 76.2x76.2 1219.2 914.4

Aluminum Bracelet Anode

Anode

Weight

Kg/pair

Diameter

mm

Width

mm

Thickness

mm

Steel Core

mm
HM-13 13 819 60 30 5x25
HM-17 17 624 80 30 5x50
HM-26 26 252 250 45 5x50
HM-32 32 385 150 59 5x50
HM-50 50 470 480 25 5x50
HM-68 68 1020 200 35 5x50

We can surely produce aluminium anode as per your drawing !

Pls contact us for more details !

Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
Skype:jane.hu261
Email: janehu@hbnewmaterial.com
Web:www.hbnewmaterial.com
