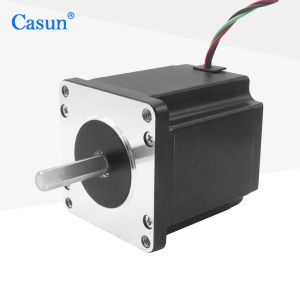

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Specifications
Brand Name :
Casun
Model Number :
PL60SHC3650-30BHM5
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$12.00-$16
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
color :
black
Current / phase :
1.5A
Holding torque :
1.1N.m
Step Angle :
1.2°
Customized :
The motor can be designed &manufactured with customized request.
Description
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Stepper motor NEMA 24 4000mN.m 60x60x98 hybrid stepper motor for automation equipment
The Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is a type of stepper motor commonly used in CNC machines, 3D printers, and robotics applications. It is designed to provide high torque and precise positioning, making it suitable for a wide range of applications.
One of the key features is its hybrid design, which combines the best features of both permanent magnet and variable reluctance stepper motors. This allows it to provide high torque and precise positioning while operating efficiently and reliably.
Key Features
  • Bipolar or unipolar versions available
  • Professional research and development manufacturing
  • Available in single or double shaft versions
  • Established in China for 12 years with over 800 customers served
  • Customizations available on request
Dimensions
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Motor Specifications
Step Angle 1.8°
Frame Size 60 mm
Number of Phase 2 Phase
Rated Current 1.5 Amp
Holding Torque 1.1 N.m
Resistance 2.3 Ω
Inductance 4.7 mH
Operating Specifications
Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ω at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Submodels
Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13 N.m 1.8° 20 mm D Shaft-20mm 1.0 A
42SHD4003 0.26 N.m 1.8° 34 mm D Shaft-20mm 0.4 A
42SHD0261 0.45 N.m 1.8° 40 mm D Shaft-20mm 1.68 A
42SHD4425 0.59 N.m 1.8° 48 mm D Shaft-24mm 2.0 A
42SHD4813 0.8 N.m 1.8° 60 mm D Shaft-24mm 2.1 A
Customization Options
We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors to ensure the motor is a perfect fit for your application. This can lead to improved efficiency, increased reliability, and reduced downtime.
Encoder
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Brake
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Gearbox
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Shaft
1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment
Please click the "Get a quote" button below to tell us your requirements.
