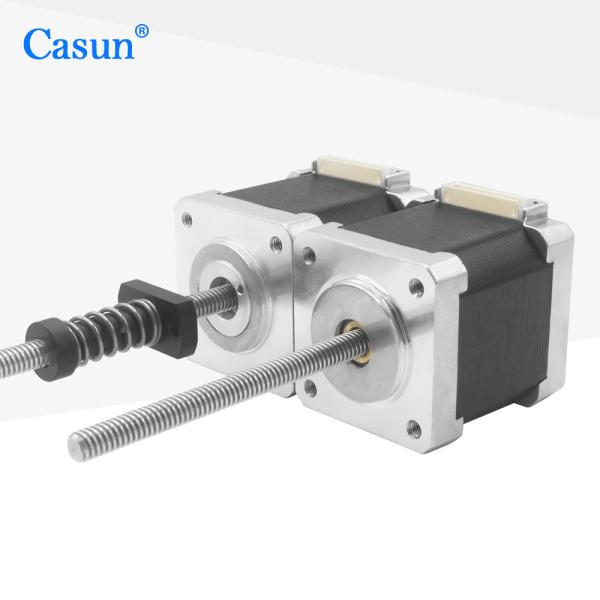

Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft
Specifications
Brand Name :
Casun
Model Number :
P35SHD0817-150NT
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$16.28~$18.47
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
360 mN.m
Voltage :
4.8V
Current :
1.5A
Body Length :
42mm
Weight :
0.24 kg
Phase Resistance :
3.2 ohm ±10% （At 20℃）
Shaft Length :
150 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Nema 14 Stepper Motor Tr5X2 (P1) 360 mN.m High Precision Hybrid Stepper Motor with Threaded Shaft

The Casun Nema 14 Hybrid Stepper Motor combines high torque (360 mN.m) and exceptional precision in a compact package, making it ideal for automation, medical devices, and small CNC systems. Its unique TR5×2 (P1) threaded shaft enables direct lead screw integration, eliminating the need for additional couplings and improving system rigidity.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft

Motor Specifications

Step Angel

 1.8°

Frame Size

 42 mm

Number of Phase

 2 Phase

Rated Current

 1.5 Amp

Holding Torque

 360 mN.m

Resistance

 3.2 ohm

Inductance

 4.5 mH

Rotor Inertia

 57 g.cm²

Motor weight

 0.24 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft Nema 14 Stepper Motor Tr5X2 P1 360mN.m High Precision Hybrid Stepper Motor with Threaded Shaft

Please click the "Get a quote" button below to tell us your requirements.
