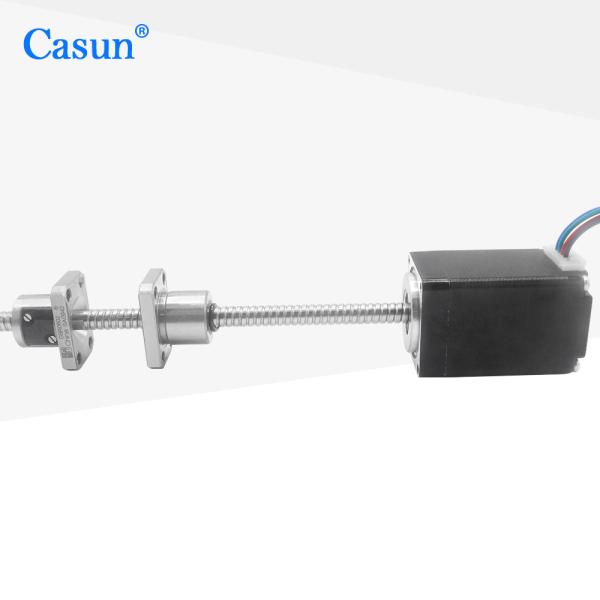

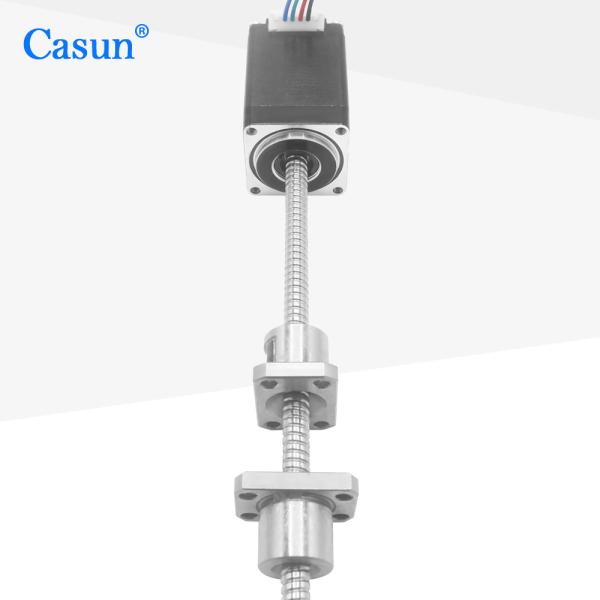

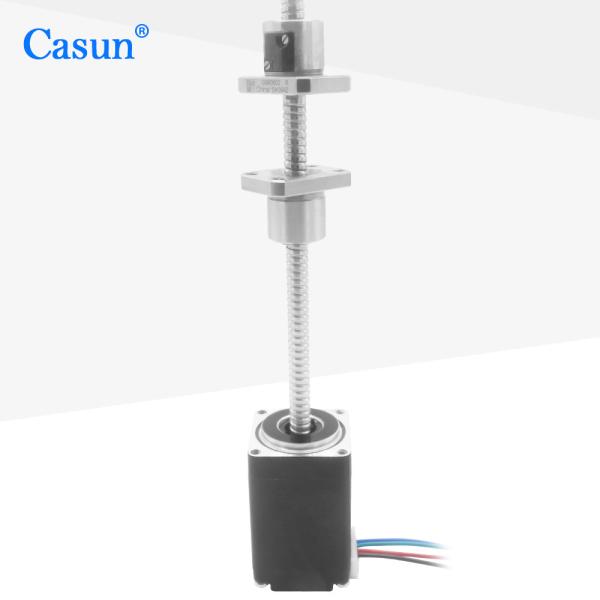

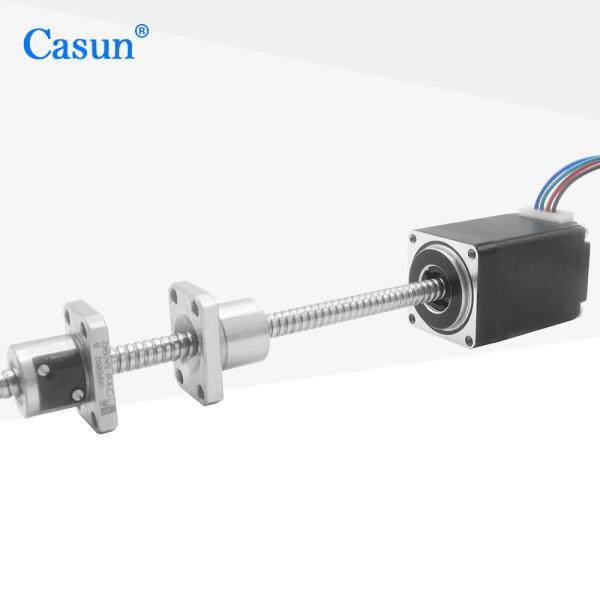

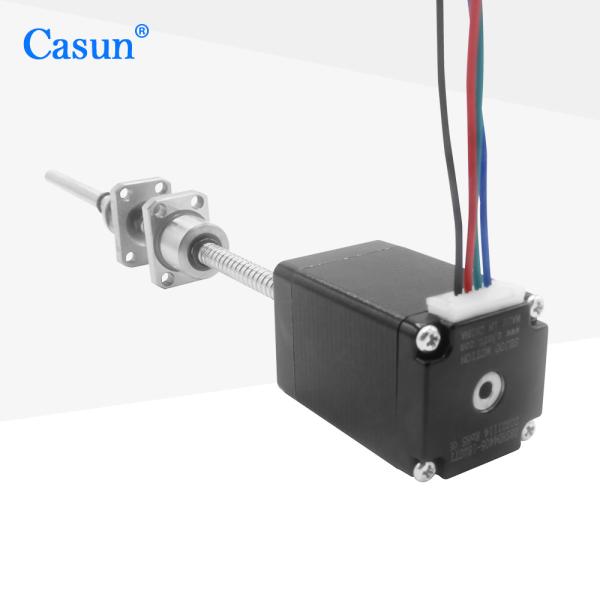

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
Specifications
Brand Name :
Casun
Model Number :
28SHD4405-182GT1
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$18.21~$19.87
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
100 mN.m
Voltage :
3.78V
Current :
1.4A
Body Length :
45mm
Weight :
0.18 kg
Phase Resistance :
2.7 ohm ±10% （At 20℃）
Shaft Length :
182 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Motor Ball Screw Stepper Motor 100 mN.m 3.78V High Precision Stepper Motor for CNC Machine

The Casun Ball Screw Stepper Motor combines a high-precision stepper motor with an integrated ball screw mechanism, delivering exceptional linear motion control for CNC machines and automation systems. With 100 mN.m torque and 3.78 V low-voltage operation, this motor is engineered for smooth, backlash-free movement in demanding industrial environments.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Motor Specifications

Step Angel

 1.8°

Frame Size

 45 mm

Number of Phase

 2 Phase

Rated Current

 1.4 Amp

Holding Torque

 100 mN.m

Resistance

 2.7 ohm

Inductance

 1.9 mH

Rotor Inertia

 9 g.cm²

Motor weight

 0.18 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine
