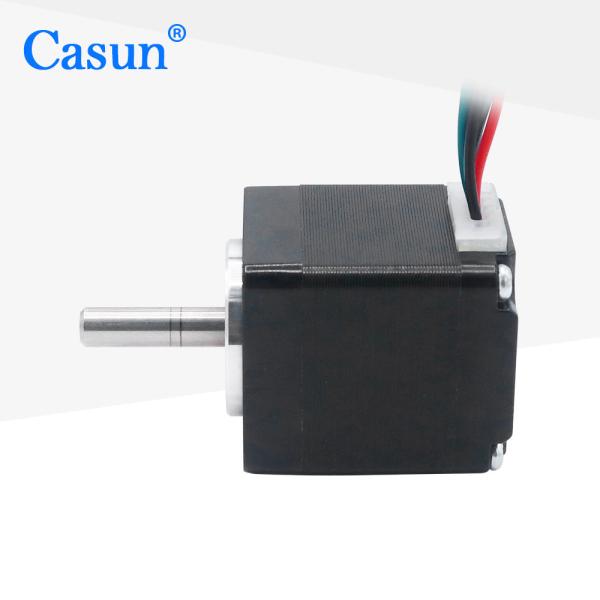

Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment
Specifications
Brand Name :
Casun
Model Number :
28SHD4207-20
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$8.88-$9.53
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Step Angel :
1.8°
Holding Torque :
80 mN.m
Shaft Length :
20mm
Current :
0.67A
Size :
28*28*32MM
Color :
silver
Phase Resistance :
5.8 ohm
Weight :
0.12 kg
Rated Voltage :
3.89V
Description

Casun Nema 11 Mini Stepper Motor 80 mN.m 0.67 A High Precision for Medical Equipment.

The Casun Nema 11 Mini Stepper Motor delivers high precision in a compact package, offering 80 mN.m holding torque with a rated current of 0.67 A. This energy-efficient yet powerful micro stepper is ideal for medical equipment, laboratory instruments, and other space-constrained applications requiring exceptional motion control accuracy and reliability.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 11 Mini Stepper Motor 80mN.m 0.67A High Precision For Medical Equipment

Motor Specifications

Step Angel

 1.8 °

Frame Size

 28 mm

Number of Phase

 2 Phase

Rated Current

 0.67 Amp

Holding Torque

 80 mN.m

Resistance

 5.8 ohm

Inductance

 4.1 mH

Rotor Inertia

 9 g.cm²

Motor weight

 0.12 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
28SHD4001

30 mN.m

 1.8° 25 mm ROUND Shaft-15mm 0.4A
28SHD4202 60 mN.m 1.8° 32 mm ROUND Shaft-20mm 0.67A
28SHD4303 80 mN.m 1.8° 40.5 mm ROUND Shaft-20mm 0.67A
28SHD4401 95 mN.m 1.8° 44.5 mm ROUND Shaft-20mm 0.67A
28SHD4501 120 mN.m 1.8° 51.5 mm ROUND Shaft-20mm 0.67A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
