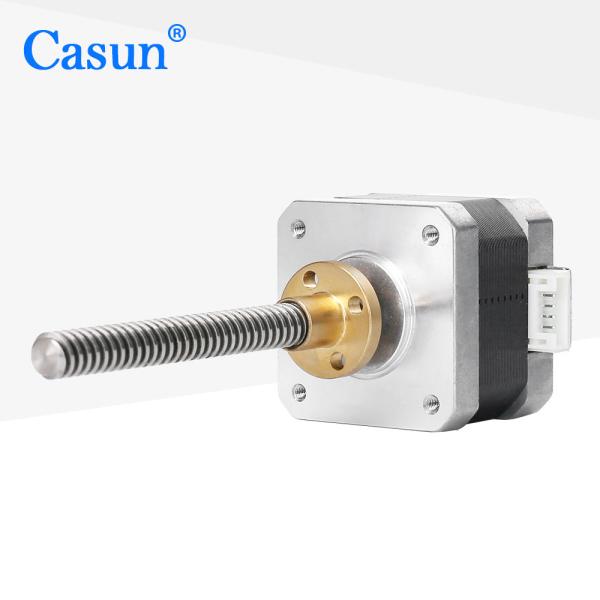

3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
Specifications
Brand Name :
Casun
Model Number :
42SHD0003-85NK
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$12.8-$15
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:360x290x140mm
Description
Nema 17 Stepper Motor with Captive Lead Screw
42×42×34mm Casun 0.4A Nema 17 stepper motor with 4-lead screw captive design, ideal for CNC, laser, and 3D printer applications.
Product Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction for reliable performance
  • Standard NEMA 17 chassis suitable for space-constrained applications
  • Available in single or dual axis versions
  • Built-in lead screw converts rotary motion to linear motion
  • CE safety certification and RoHS environmental compliance
  • Customizable lead and stroke length options
  • Engineering support available within 48 hours
Motor Dimensions
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current0.4 A
Holding Torque260 mN.m
Resistance30 ohm
Inductance4.2 mH
Rotor Inertia38 g-cm²
Motor Weight0.2 kg
Number of Leads4
ConnectionBipolar
Operating Specifications
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Shaft Radial Play0.02 Max. (450g-load)
Shaft Axial Play0.08 Max. (450g-load)
Max. Radial Force28N (20mm from flange)
Max. Axial Force10N
Available Submodels
Body Length Diameter of Screw Pitch Length of Screw
20 mm, 34 mm, 40 mm, 48 mm, 60 mm 5 mm 1 mm 20-500 mm
2 mm, 8 mm, 5.56 mm 9.7536 mm
6.35 mm 1.27 mm, 3.175 mm, 6.35 mm, 9.7535 mm, 12.7 mm
6.5 mm 3 mm, 6.35 mm
8 mm 1 mm, 2 mm, 4 mm, 8 mm, 12 mm
10 mm 2 mm
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Accessories
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
Encoder
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
Brake
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
Gearbox
3A Linear Nema 17 42SHD0003-85NK Stepper Motor With 4 Lead Screw Captive 2 Phase For CNC Laser And 3D Printer
Shaft
Get a Quote - Tell Us Your Requirements
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2011. Our primary markets include Domestic Market (63%), Western Europe (12%), North America (9%), and Eastern Asia (8%). Our office employs 51-100 people.
How can we guarantee quality?
We provide pre-production samples before mass production and conduct final inspection before shipment to ensure quality standards.
What can you buy from us?
We specialize in Stepper Motors and BLDC Motors.
Why should you buy from us?
We have over 11 years of specialized experience in producing and selling stepper motors.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, PayPal. Languages Spoken: English, Chinese, Japanese.
