NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment
Specifications
Brand Name :
Casun
Model Number :
20SHD0250-150NT
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$13-$13.5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29xc14m
Color :
Black
current :
0.6Amp
Holding torque :
32mN.m
Detent torque :
2mN.m
Lead Screw :
Tr5×2
Customized :
The motor can be designed &manufactured with customized request.
Description

During the operation of the stepper motor, the meshing between the screw and the lead screw ensures smooth linear motion and minimal vibration.

Due to its simple structure, the through screw stepper motor is easy to integrate with other equipment and systems

Features:

  • Contract-based manufacturing services are welcome

  • Ten-year warranty, buy with confidence

  • Our engineers will contact you within 48 hours to offer the most suitable solution

  • CE and RoHS approved

  • Every stepper motor model is adaptable to various applications

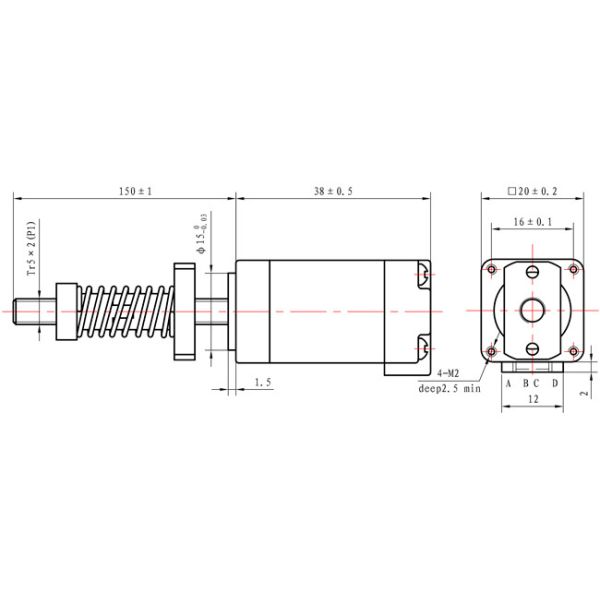

Dimensions

NEMA 8 Non Captive DC Stepper Motor 38mm Body Tr5×2 For Beauty Equipment

Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.6Amp

Holding Torque

32mN.m

Resistance

9.0ohm

Inductance

3.0mH

Rotor Inertia

3.8g-cm²

Motor weight

0.08kg

Lead Screw

Tr5X2

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
