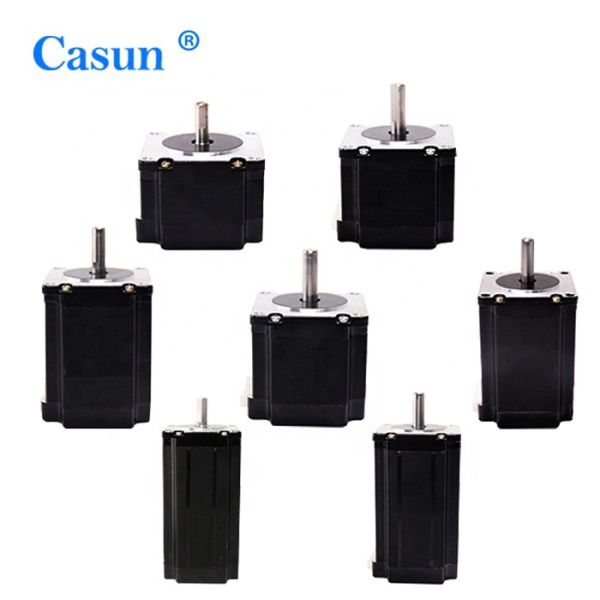

Enclosed Hybrid Stepper Motor with Class B Insulation and 64mm Motor Height for Robotics and CNC Machines
Enclosed Hybrid Stepper Motor with Class B Insulation and 64mm Motor Height for Robotics and CNC Machines
Specifications
Brand Name :
Casun
Place Of Origin :
China
Certification :
CE,ROHS,ISO
MOQ :
1PC
Packaging Details :
Carton:210x190x170
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
40000+PCS+Month
Portect Feature :
Enclosed
Torque :
21kg.cm
Shaft :
5mm D-cut Shaft
Phase Current :
1A/phase
Insulation Resistance :
100MΩ Min，500VDC
Length :
56mm
Gear Ratio :
Multiple, From 3:1 To 200:1
Valtoge :
3.36v
Description
Enclosed Hybrid Stepper Motor
Class B Insulation, 64mm motor height. Ideal for robotics, automation, and CNC machines requiring precision motion control.
Product Overview
The Hybrid Stepper Motor delivers exceptional torque, precise positioning, and smooth operation for demanding precision motion control applications. Combining permanent magnet and variable reluctance technologies, this motor offers superior performance in robotics, automation, 3D printing, and CNC machinery.
Key Specifications
• Motor Height: 64mm
• Nominal Voltage: 120V
• Voltage: 3.36V
• Insulation Class: Class B
• NEMA 17 Standard Compatibility
Product Features
  • Product Name: Hybrid Stepper Motor
  • Type: Hybrid Stepping Motor
  • Nominal Voltage: 120V
  • Size: 42MM (NEMA 17 Stepper Motor standard)
  • Length: 56mm
  • Shaft: 5mm D-cut Shaft for secure coupling
  • Dielectric Strength: 500VDC for One Minute
  • High precision and reliability
  • Enclosed protection feature
Technical Parameters
Parameter Value
Size 42MM
Phase Current 1A/phase
Protect Feature Enclosed
Shaft 5mm D-cut Shaft
Length 56mm
Max Axial Force 60N
Metal Type Steel
Insulation Class Class B
Dielectric Strength 500VDC For One Minute
Voltage 3.36V
Applications
This NEMA 17 stepper motor is certified by CE, ROHS, and ISO standards, ensuring reliability for demanding applications including:
  • 3D Printers and CNC Machines
  • Robotics and Automation Systems
  • Medical Devices and Lab Automation
  • Packaging Machinery
  • Precision Positioning Systems
  • Automated Assembly Lines
The motor's compact design, enclosed protection, and high dielectric strength make it suitable for continuous operation in various industrial and commercial environments.
