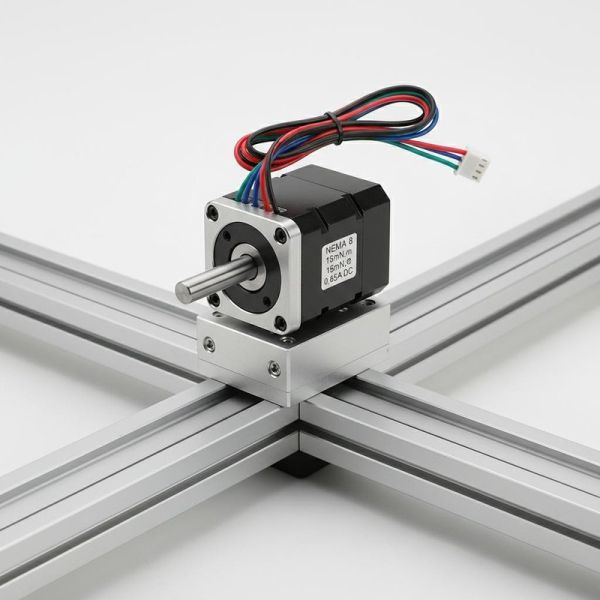

Nema 8 non-captive stepper motor 20x20x27mm 15mN.m holding torque 0.65 DC power for cnc for XYZ three-dimensional workbench
Nema 8 non-captive stepper motor 20x20x27mm 15mN.m holding torque 0.65 DC power for cnc for XYZ three-dimensional workbench
Specifications
Brand Name :
Casun
Model Number :
20SHD0250-100TT
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1pcs
Price :
$9.94-$12.8
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29xc14m
current :
0.6Amp
Holding torque :
32mN.m
Steper angle :
1.8degree
Phase :
2
Rated voltage :
5.4V
Detent torque :
3mN.m
Customized :
The motor can be designed &manufactured with customized request.
Description
Nema 8 Non-Captive Stepper Motor
Casun 0.6A non-captive motor 5.4V Nema 8 Non Captive Stepper Motor with Lead Screw TR5X2 Bipolar black. This 20mm Hybrid Stepper Motor Series offers powerful holding torque in a compact size, ideal for CNC applications and XYZ three-dimensional workbenches.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Motor Specifications
ParameterValue
Step Angle1.8°
Frame Size20mm
Number of Phase2 Phase
Rated Current0.6A
Holding Torque32 mN.m
Resistance9.0 ohm
Inductance3.2 mH
Rotor Inertia3.5 g-cm²
Motor Weight0.08 kg
Lead ScrewTR5X2
ConnectionBipolar
Operating Specifications
ParameterValue
Maximum Temperature80°C
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Shaft Radial Play0.02 Max. (450g-load)
Shaft Axial Play0.08 Max. (450g-load)
Max. Radial Force28N (20mm from flange)
Max. Axial Force10N
Available Models
ModelHolding TorqueStep AngleMotor LengthShaft TypeRated Current
20SHD030418 mN.m1.8°28mmRound Shaft-20mm0.6A
20SHD025032 mN.m1.8°38mmRound Shaft-20mm0.6A
20SHD010130 mN.m1.8°42mmRound Shaft-20mm0.8A
Lead Screw Options
Body LengthScrew DiameterPitchScrew Length
20mm, 34mm, 40mm, 48mm, 60mm5mm, 8mm, 6.35mm1.27mm, 2mm, 3mm, 4mm, 6.35mm, 8mm, 12mm20-1000mm
Customization Services
If our standard motors cannot meet your requirements, we can customize motors according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options:
  • Encoder
  • Brake
  • Gearbox
  • Shaft
