Specifications
Brand Name :
Casun
Model Number :
60SHF0504-24Q
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$3.14-$5
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.2°
Holding Torque :
800mN.m
Current :
1.5A
Motor Length :
58mm
Shaft :
Round Shaft 24mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A

Casun Stepper Motor with Encoder 800mN.m NEMA 24 3 Phase 1.5A Closed Loop Stepper Motor for CNC

NEMA 24 Stepper Motor with Magnetic Encoder 60×60×58mm 1.5A. The 60mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features
  • High torque and high precision
  • For high-tech industry and electronic industry equipment
  • Available in single or double shaft versions
  • Established in China for 12 years and has served more than 800 customers
  • Professional research and development manufacturing

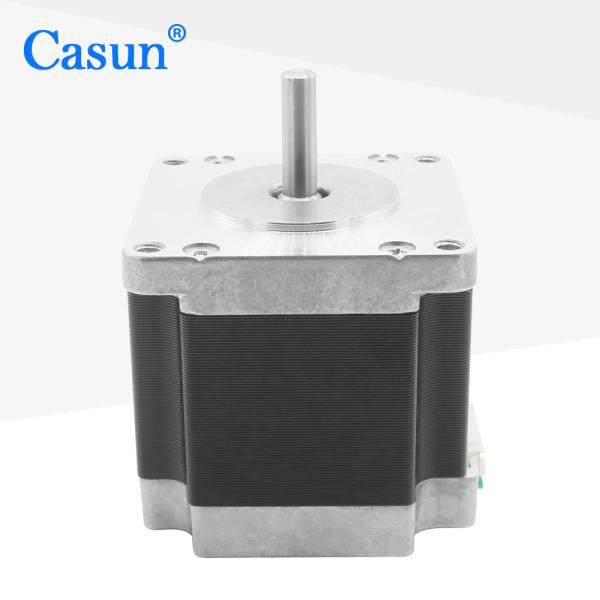

Appearance
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
Dimensions
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
Motor Specifications
Step Angle 1.2°
Frame Size 60 mm
Number of Phase 3 Phase
Rated Current 1.5 A
Holding Torque 800 mN.m
Resistance 3.6 ohm
Inductance 7.0 mH
Rotor Inertia 260 g-cm²
Motor Weight 0.6 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Submodels
Model Holding Torque Rated Current Resistance per phase Inductance per phase Detent torque Rotor inertia Lead wire Motor length
60SHD4201 650 mN.m 0.6 A 15 Ω 20 mH 50 mN.m 280 g.cm² 4 45 mm
60SHD4401 1500 mN.m 2.8 A 1 Ω 3.3 mH 70 mN.m 450 g.cm² 4 56 mm
60SHD4601 3200 mN.m 4.2 A 0.75 Ω 3.7 mH 120 mN.m 580 g.cm² 4 86 mm
60SHD6602 2500 mN.m 3 A 1.55 Ω 3.7 mH 120 mN.m 580 g.cm² 4 -
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
Encoder
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
Brake
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
Gearbox
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
Shaft

Please click the "Get a quote" button below to tell us your requirements.
