Specifications
Brand Name :
SND FOUNDRY
Model Number :
Butterfly Valve
Certification :
ISO / CE
Place of Origin :
Zhengjiang,China
MOQ :
1 pcs
Price :
$60-90/pc
Payment Terms :
L/C,T/T
Supply Ability :
100,000 per year
Delivery Time :
20 days
Packaging Details :
Wood box/ wood pallet
Product Name :
Ductile Iron Wafer Butterfly Valve Commonly Used In Fluid Pipeline Systems
Key Words :
Butterfly Valve
Power :
Manual
Temperature :
Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly :
18 months
Connection :
Wafer Type
Application :
General, Oil and Gas, Petrochemical and Chemical Industry, Water and Wastewater,HVAC, c
Media :
Oil, Water, Gas, Air, Liquid
Body Material :
Ductile Iron
Packing :
Customized Acceptable
Customized Support :
OEM
Pressure :
150/300/600/900/1500/2500LB
Description
Ductile Iron Wafer Butterfly Valve for Water and Gas Pipelines
Product Specifications
Attribute Value
Product Name Ductile Iron Wafer Butterfly Valve Commonly Used In Fluid Pipeline Systems
Key Words Butterfly Valve
Power Manual
Temperature Medium Temperature, Normal Temperature, High Temperature, Low Temperature
Warranty 18 months
Connection Wafer Type
Application General, Oil and Gas, Petrochemical and Chemical Industry, Water and Wastewater, HVAC
Media Oil, Water, Gas, Air, Liquid
Body Material Ductile Iron
Packing Customized Acceptable
Customized Support OEM
Pressure 150/300/600/900/1500/2500LB
Product Description
This manual clamp-type butterfly valve is a key device for regulating and controlling the on/off of fluids (water, gas, liquid, etc.) in industrial pipelines.
Core Components & Functions

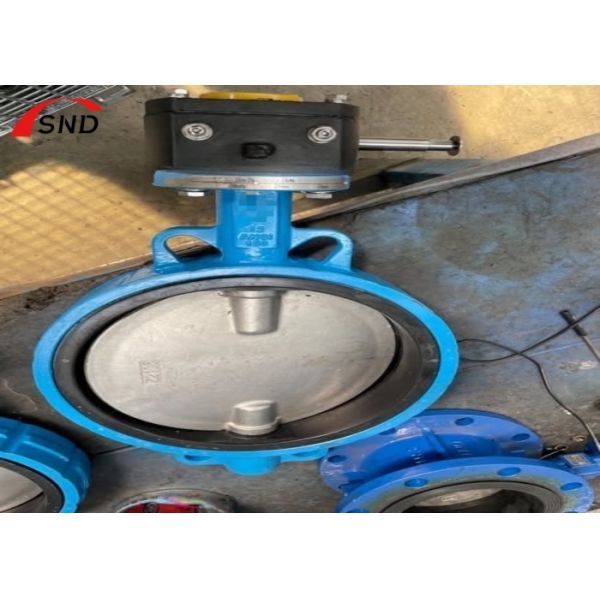

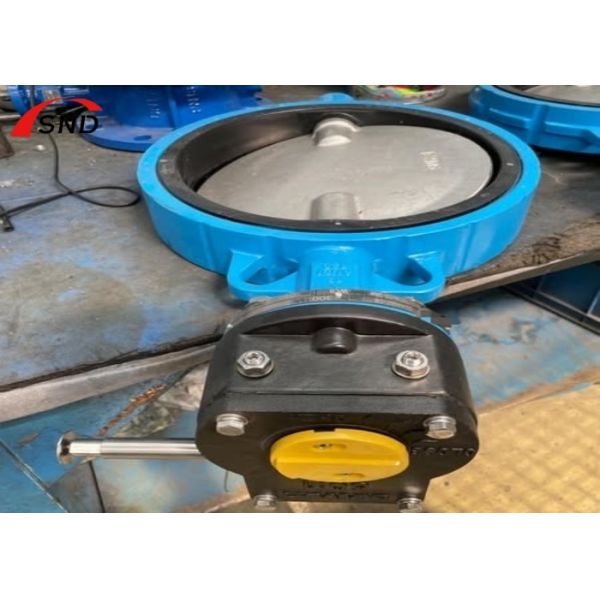

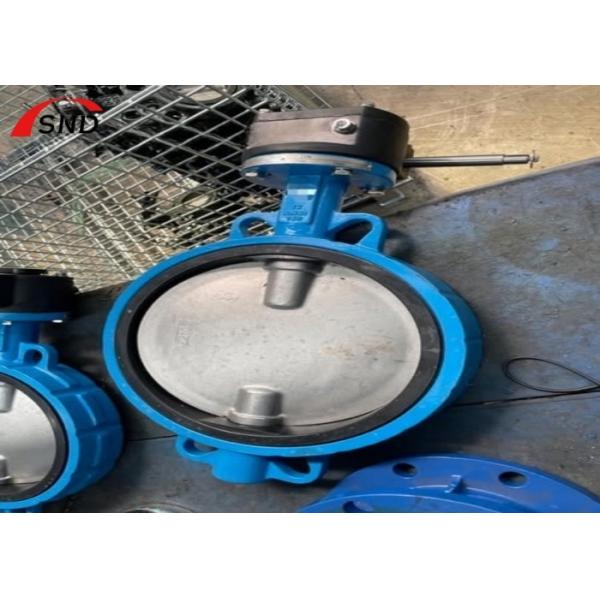

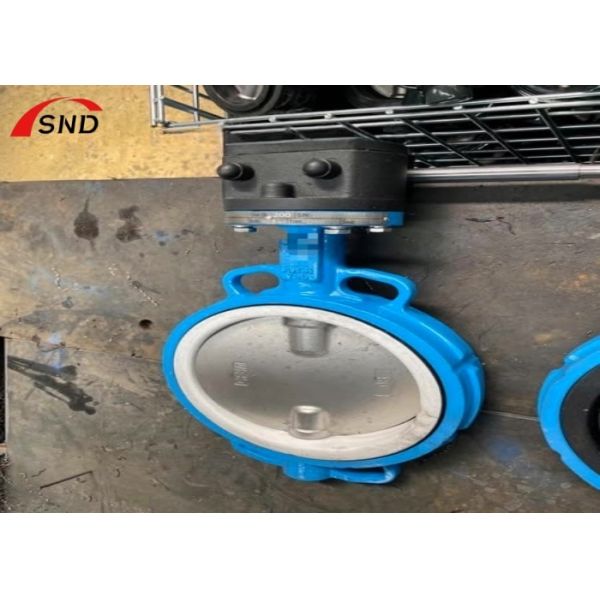

  • Valve Body (blue part): Made of ductile iron/cast steel for high strength and impact resistance. Features clamp installation (bolts penetrate pipe flange to clamp valve body), saving space with flexible installation. Commonly used in water supply, drainage, HVAC, and fire protection systems. Internal black rubber valve seat seal cooperates with valve plate to block fluid leakage.
  • Valve Plate (silver disc): The core pipeline "switch" that rotates around central axis (0°-90°) to control fluid flow. Surface may have anti-corrosion treatment (stainless steel, spray coating) for complex conditions like acid, alkali, and high temperature.
  • Actuator (black + yellow part): Manual drive with yellow turntable/handle that rotates valve plate through gear/worm gear mechanism. Simple, reliable operation suitable for non-automated scenarios. Black shell contains transmission structure with gears and bearings for smooth operation and stable torque.
Applications & Advantages
Applications: Widely used in municipal water supply/drainage, building HVAC, and fire sprinkler systems due to compact structure, low flow resistance, and cost-effectiveness. Examples include community water flow adjustment, shopping mall AC water system control, and fire pipe emergency cut-off.
Advantages: Manual operation requires no power source with simple maintenance; clamp installation suits narrow spaces; rubber soft seal ideal for low-pressure, normal/medium temperature clean media with excellent sealing and low noise.
Materials of Main Parts
NO. PART MATERIAL
1 Body Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
2 Seat NBR, EPDM, Viton, Neoprene, HYPALON, Silicon
3 Shaft Stainless Steel 416, 316, 304
4 Disc Ductile Iron+Ni, CF8, CF8M, Bronze
5 Pin Stainless Steel
6 Bushing PTFE, Bronze
7 O-Ring NBR, EPDM
About Our Company
SND has been producing and selling metal goods for about 20 years. Using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, we supply products made of cast iron, steel, stainless steel, aluminum, etc., with surface finishing and assembly services.
Our company serves various industries including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction. Our ISO9001-accredited quality control systems ensure consistent, reliable quality for every component.
Routine production procedures include spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections.
