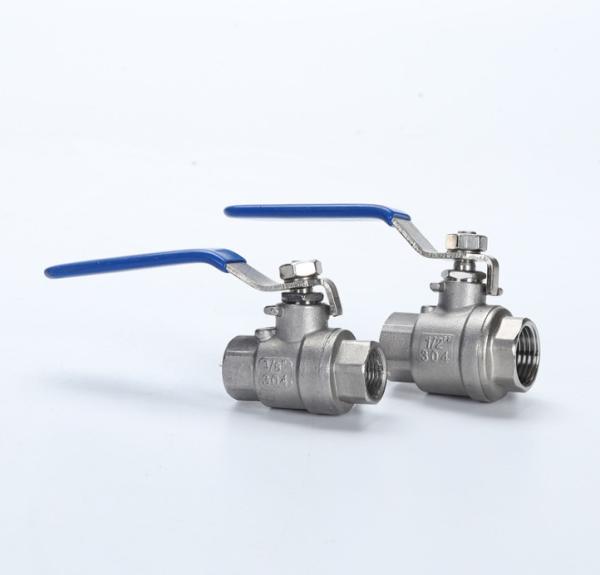

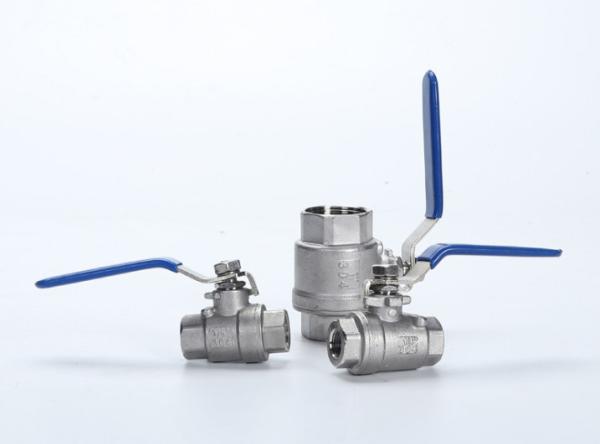

Cf8m 2pc Ball Valve Stainless Steel High Pressure
Cf8m 2pc Ball Valve Stainless Steel High Pressure
Cf8m 2pc Ball Valve Stainless Steel High Pressure
Cf8m 2pc Ball Valve Stainless Steel High Pressure
Specifications
Brand Name :
Cencho
Model Number :
1/4''- 4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
304 / 316
Structure :
Ball
Port Size :
1/4''- 4''
Medium :
Water Oil Gas
Locking :
with
Pressure :
High
Working Temperature :
-25℃+180℃
Power :
Manual
Technology :
Investment Casting
Surface Treatment :
Sandblasting/acid Pickling
Application :
18.Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, Etc
Quality Control :
Professional Inspection
Description

Cf8m Stainless Steel High Pressure 2PC Ball Valve

Description:

1) Design standard: ASME B16.34
2) Threaded ends: ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
3) Testing: API 598
4) Mateiral:ASTM A351 CF8M,CF8,CF3M,SS316,SS304
ASTM A216-WCB
5) Size: 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1 1/4”, 1 1/2”, 2”
6) Working pressure: max 1000 WOG
7) Working temperature: -20 to 180°C
8) Working medium: Water, Oil, Gas, Acid, etc
Features:
1) Blow-out proof stem
2) Investment Casting Body
3) Pressure Blance Hole in Ball Slot
4) Reduce Bore
5) Threaded type: NPT,PT,BSP,BSPT,R,Rc,Rp,DIN is available

6) Locking device is available

Material List

ITEMPARTMATERIALQTY
1BODYA216-WCBA351-CF8A351-CF8M1
2SEATPTFE/RPTFE2
3BALL3043043161
4GASKETPTFE1
5CAPA216-WCBA351-CF8A351-CF8M1
6STEM3043043161
7THRUST WASHERPTFE1
8PACKINGPTFE1
9GLAND NUT3043043041
10HANDLE3043043041
11SPRING WASHER3043043041
12NUT3043043041
13LOCK3043043041
14HANDLE COVERPLASTIC1

Drawing
Cf8m 2pc Ball Valve Stainless Steel High Pressure


A: Sure, we are ready to meet all your demands!

Q: Can I print my logo on the products ?
A: Yes, we can print your logo on the products as you required.
