PN63 2 Threaded Ball Valve
PN63 2 Threaded Ball Valve
PN63 2 Threaded Ball Valve
PN63 2 Threaded Ball Valve
Specifications
Brand Name :
Cencho
Model Number :
1/4''--4''
Certification :
ISO9001/CE
Place of Origin :
Hebei, China
MOQ :
100pcs
Price :
Discussible
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200tons/month
Delivery Time :
5-10 work days
Packaging Details :
Standard wooden cases and cartons
Material :
CF8/CF8M/WCB
Port Size :
1/4"-4"
Connection :
Thread
Structure :
Ball
Pressure :
1000PSI (PN63)
Locking :
With or Without
Working Temperature :
-25℃+180℃
Medium :
Water Oil Gas
Quality Control :
Professional Inspection
Process :
Investment Casting+Maching
Craft :
Stainless Steel Lost Wax Casting
Surface Treatment :
Sandblasting/acid Pickling
Description

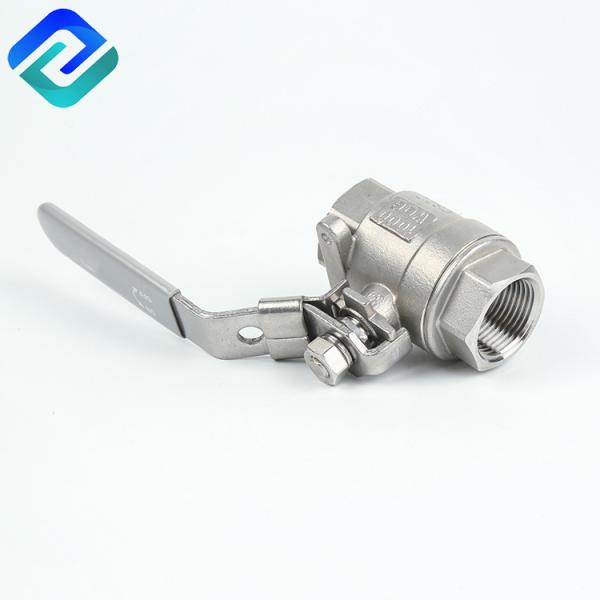

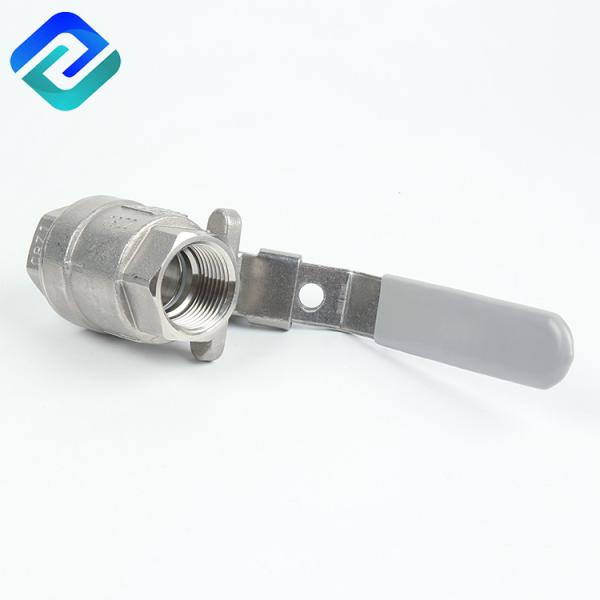

Stainless Steel Simple Structure Water 2PC Ball Valve

1. Our stainless steel 2PC ball valve is thread type, and pressure is 1000psi, handle can produce to many different colours,like blue,yellow,green,gray,black and so on...

2. Stainless steel 2PC ball valve and flange gate valve belong to the same type of valve. The difference is that its closing part is a ball.

3. Stainless steel 2PC ball valve is mainly used to cut off, distribute and change the flow direction of medium in pipeline.

2PC ball valve is a new type of valve widely used. 2PC ball valve has the following advantages:

1. There is no friction between opening and closing. This function completely solves the problem that the sealing surface of traditional valve is affected by friction between sealing surfaces.

2. Single seat design. The problem that the medium in the valve cavity is affected by abnormal pressure rise is eliminated.

3. 2PC ball valve is tight and reliable. The sealing surface material of 2PC ball valve is widely made of plastic and has good sealing performance. 2PC ball valve has also been widely used in vacuum system.

4. Convenient operation, fast opening and closing, from full opening to full closing as long as 90 ° rotation, convenient for remote control.

5. When the 2PC ball valve is fully opened or closed, the sealing surface of the ball and valve seat is isolated from the medium, and the medium will not cause the erosion of the valve sealing surface.

Material List

ITEM PART MATERIAL QTY
1 BODY A216-WCB A351-CF8 A351-CF8M 1
2 SEAT PTFE/RPTFE 2
3 BALL 304 304 316 1
4 GASKET PTFE 1
5 CAP A216-WCB A351-CF8 A351-CF8M 1
6 STEM 304 304 316 1
7 THRUST WASHER PTFE 1
8 PACKING PTFE 1
9 GLAND NUT 304 304 304 1
10 HANDLE 304 304 304 1
11 SPRING WASHER 304 304 304 1
12 NUT 304 304 304 1
13 LOCK 304 304 304 1
14 HANDLE COVER PLASTIC 1

Dimension Table

SIZE Φ d L H W N.M KGS
DN6 1/4” 12.5 50 49 106 4 0.19
DN10 3/8” 12.5 50 49 106 4 0.19
DN15 1/2” 15 53 52 106 5 0.25
DN20 3/4” 20 66 58 116 8 0.37
DN25 1” 25 73 73 148 10 0.58
DN32 1-1/4” 32 85 79 148 10 0.90
DN40 1-1/2” 38 94 84 182 25 1.19
DN50 2” 50 112 95 182 40 1.73
DN65 2-1/2” 65 147 127 251 48 3.84
DN80 3” 76 172 136 251 80 5.71
DN100 4” 94 222 158 283 103 10.70

Drawing

PN63 2 Threaded Ball Valve

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: What's your MOQ ?
A: MOQ is 1000 usually. But MOQ of each product is different.

Q: Can I get a sample for testing ?
A: Yes, we can provide you a sample for reference, but you may pay for the sample and shipping fee.

Q: Can you provide OEM/ODM service?
A: Sure, we are ready to meet all your demands!

Q: What's the payment term?
A: We accept T/T, western union, L/C and Trade Assurance. For bulk order by T/T and Western Union, we will require 30% deposit
first and 70% balance before delivery.
