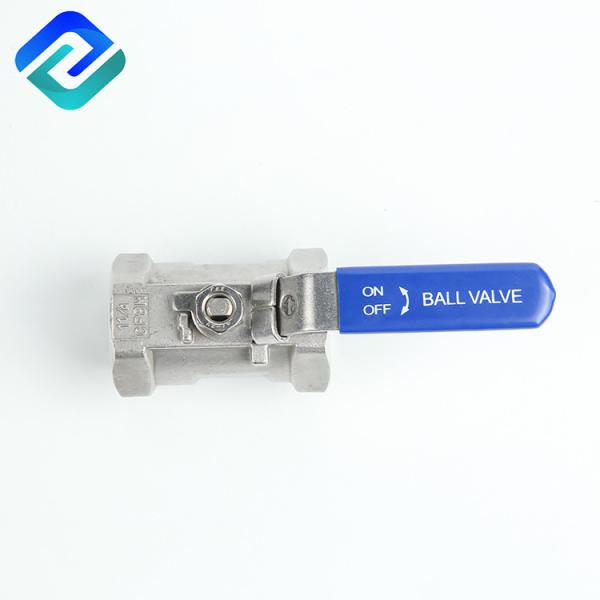

Stainless Steel 304 Thread Investment Casting 1PC Ball Valve

1PC ball valve ' s material is stainless steel 304,we can also produce stainless steel 316 1PC ball valve, use investment castng method, the 1PC ball valve is thread type, can machining PT,NPT,BSP,G thread type. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

1PC ball valve has the following advantages:

1. The fluid resistance is small, and its resistance coefficient is equal to that of the same length of pipe.

2. 1PC ball valve has simple structure, small volume and light weight.

3. Convenient operation, fast opening and closing, from full opening to full closing as long as 90 ° rotation, convenient for remote control.

4. Easy maintenance, simple structure of 1PC ball valve, movable sealing ring, easy disassembly and replacement.

5. When the valve is fully opened or closed, the sealing surface of the ball and valve seat is isolated from the medium, and the medium will not cause the erosion of the valve sealing surface.

6. Wide range of application, diameter from small to several millimeters, to several meters, from high vacuum to high pressure can be applied.

1PC ball valve can be divided into straight through type, 3PC ball valve and right angle type according to its channel position. The latter two kinds of ball valves are used to distribute media and change the flow direction of media.

1. The 3PC ball valve handle rotation position shall be reserved.

2. It can't be used for throttling.

3. The 1PC ball valve with transmission mechanism shall be installed vertically.

Material List

Dimension Table

Drawing

FAQ

Q:Can I have a sample order for valve?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q:How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.

Q:How to proceed an order for valve?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q: What's the payment term?
A: We accept T/T, western union, L/C and Trade Assurance. For bulk order by T/T and Western Union, we will require 30% deposit
first and 70% balance before delivery.
