Features Analysis

• Wheel Diameter – 100mm (≈4″):
  Larger than 75mm variants, offering better roll-over capability for thresholds, cords, and uneven surfaces while maintaining a moderate mounting height suitable for trolleys and carts.

• Material – Polypropylene (PP):

  • Orange Color: Highly visible, often used for safety identification, warehouse color-coding, or aesthetic branding.

  • PP Compound: A rigid, lightweight thermoplastic with excellent chemical resistance (oils, solvents, mild acids) and water resistance. It does not absorb moisture, making it ideal for damp environments.

  • Hard Tread: PP is a hard, non-marking material (though on delicate floors, it is harder than rubber or TPR). It offers very low rolling resistance.

• Single Ball Bearing:
  The “single ball bearing” typically refers to a ball bearing in the wheel hub, providing smooth, low-friction rolling.

  • Swivel Mechanism: While the swivel may also incorporate a simple raceway or a separate bearing, the designation highlights that the wheel itself has a precision ball bearing, which reduces effort when moving loaded trolleys.

• Swivel Caster Design:

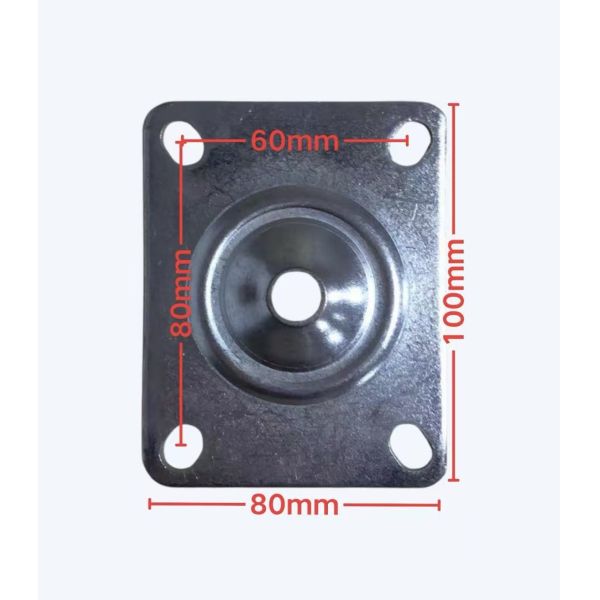

  Allows 360° rotation, enabling the trolley to change direction easily. Mounting is usually via a top plate (commonly 70–80mm square with slotted holes) or a threaded stem, depending on the specific trolley application.

• Load Capacity:
  Polypropylene wheels with ball bearings are typically rated for light to medium duty (approx. 80–150 kg / 175–330 lbs per caster), depending on the exact construction and swivel design.

Functional Benefits

• Lightweight & Easy to Maneuver:
  PP is one of the lightest caster materials, reducing the overall weight of the trolley. Combined with the ball bearing wheel, it provides exceptional rolling efficiency—ideal for carts that are frequently moved.

• Low Rolling Resistance:
  The hard PP tread minimizes friction with the floor, allowing heavy loads to be pushed with less effort. This is especially beneficial on smooth surfaces like concrete, tile, or sealed floors.

• Corrosion & Chemical Resistance:
  PP is impervious to water, oils, grease, and many industrial chemicals. Unlike steel or iron cores, it will not rust, making it suitable for wet environments, kitchens, or outdoor covered areas.

• High Visibility (Orange):
  The bright orange color improves safety by making the trolley easily noticeable in busy environments, reducing the risk of collisions in warehouses or workshops.

• Quiet Rolling with Ball Bearing:
  The precision bearing eliminates squeaking and provides a smooth, consistent roll. While the hard PP tread is noisier than rubber on uneven floors, the bearing reduces operational noise compared to plain-bore wheels.

• Cost-Effective & Durable:
  PP wheels are economical, long-lasting in non-abrasive conditions, and require no maintenance. They are resistant to impact cracking under normal use.

Ideal Applications

This caster is best suited for trolleys, carts, and equipment where low rolling effort, chemical resistance, and high visibility are priorities.

• Industrial & Warehouse Trolleys

  • Platform trucks, skids, and roll cages

  • Order picking carts and flatbed trolleys
    – Container and tote carts in distribution centers

• Commercial Food Service

  • Kitchen racks, ingredient bins, and utility carts
    – Portable workstations (resistant to washdowns and grease)
    – Serving trolleys in cafeterias

• Retail & Display
  – Shopping baskets on wheeled bases
  – Garment racks, display stands, and shelving units
  – Point-of-sale (POS) mobile stations

• Automotive & Workshop
  – Tool trolleys and service carts
  – Parts bins and engine stands (light to medium duty)
  – Mobile workbenches

• Hygiene & Clean Environments
  – Laundry carts, janitorial equipment, and cleaning trolleys
  – Hospital utility carts (non-critical areas)
  – Laboratory carts where chemical resistance is needed

• Outdoor & Covered Areas
  – Garden carts, event equipment trolleys
  – Portable staging or platform dollies (PP resists UV and moisture better than rubber)
