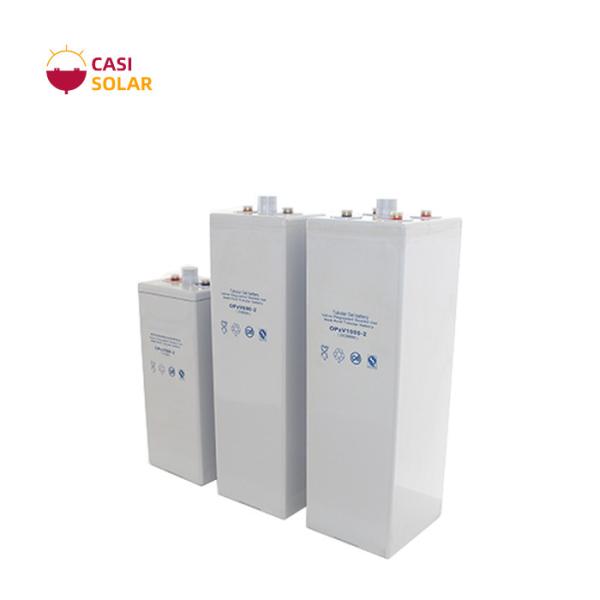

2Volt 300Ah OPzV Tubular Gel Battery
2Volt 300Ah OPzV Tubular Gel Battery
Specifications
Brand Name :
Licloud
Model Number :
OPzV
Certification :
CE
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 pcs per week
Delivery Time :
15-20 working days
Packaging Details :
According to customer's requirement
Battery Type :
OPzV tubular gel battery
Battery Voltage :
2V
Battery Rated Capacity :
300Ah
Dimensions :
145*206*389mm
Weight :
26kg
Battery Cover and exhaust tether Structure :
Valve regulated sealed battery
Output Type :
Terminal output
Application :
Dataroom UPS System
Charge State :
Maintenance free battery
Warranty :
3 Years
Description

2Volt 300Ah OPzV Tubular Gel Battery High Performance Long Service Life

Description

OPzV Tubular Gel Battery is a VRLA battery that adopts immobilized Gel and Tubular Plate technology to offer high reliability and performance. OPzV Tubular Gel Battery is designed with die-casting positive grid and patent formula of active material. OPzV Tubular Gel Battery has more than 20 years working life in float service at 25℃.

Models Voltage Capacity Weight Dimension
Length Width Height Total Height
V Ah kg mm mm mm mm
6-OPzV-100 12 100 39 483 170 241 241
6-OPzV-150 12 150 61 522 240 219 228
6-OPzV-200 12 200 72 522 268 219 228
OPzV-200 2 200 18 103 206 389 389
OPzV-300 2 300 26 145 206 389 389
OPzV-400 2 400 33 145 206 505 505
OPzV-500 2 500 39 166 206 505 505
OPzV-600 2 600 46.5 145 206 678 678
OPzV-800 2 800 62 191 210 678 678
OPzV-1000 2 1000 78 233 210 678 678
OPzV-1200 2 1200 91 275 210 678 678
OPzV-1500 2 1500 113 275 210 872 872
OPzV-2000 2 2000 150 399 212 802 802
OPzV-2500 2 2500 188 487 212 802 802
OPzV-3000 2 3000 223 576 212 802 802

2Volt 300Ah OPzV Tubular Gel Battery

Features

  • Product name: OPzV Tubular Gel Battery
  • Capacity range (C10): 150Ah - 3000Ah
  • Voltage class: 2V/12V
  • Float charge voltage: 2.25V-2.3V
  • Equalized charge voltage: 2.4V-2.45V
  • Long working life: ＞20years
  • Low self-discharge rate: ≤2%/month
  • Good resistance to deep discharge: after 100% discharge, the battery can still be connected to the load and recharged after four weeks to restore the original capacity.
  • Wide working temperature range: -15℃～45℃.
  • The positive and negative active materials are added with conductive additives and special electrolyte formula, which can meet the high current fast charging.
  • Tubular positive plate, effectively prevent the active material from falling off; multi-alloy die-casting plate grid skeleton, fine and dense grains, good corrosion resistance, long service life
  • German imported fumed silica gel agent, electrolyte is gel state, no flow, no delamination
  • Imported colloidal battery spacer, large porosity, low resistance

Advantages

  • Product name: OPzV Tubular Gel Battery
  • Safety valve: special safety valve structure, suitable opening and closing valve pressure, reduces water loss, can avoid battery shell expansion, rupture and electrolyte drying phenomenon.
  • Good high temperature cycling performance
  • Bulkhead: special microporous PVC-SiO2 bulkhead imported from European AMER-SIL company, its bulkhead has large porosity and low resistance.
  • Battery shell: ABS material, corrosion resistance, high strength, beautiful appearance, high reliability of sealing with the cover without potential leakage risk.

Application

  • Product name: OPzV Tubular Gel Battery
  • Various cycling applications
  • Solar, wind and hydroelectric power storage, wind and scenery complementary projects.
  • Standby power supply for ships, maritime, etc.
  • Petrochemical system standby power supply.

Compliant Standards

  • IEC60896-2-1995
  • EC61427-2005
  • GB/T22473-2008
  • YD/T1360-2005
  • Passed ISO9001.ISO14001, GB/T28001-2001, CE, SGS,TUV,ROHS
