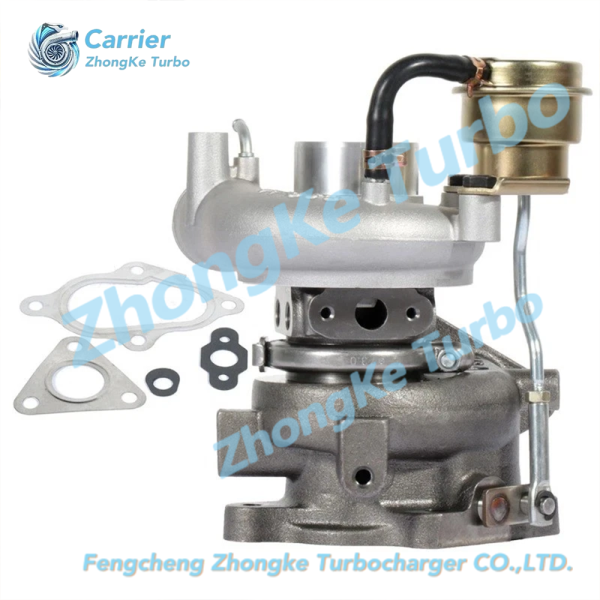

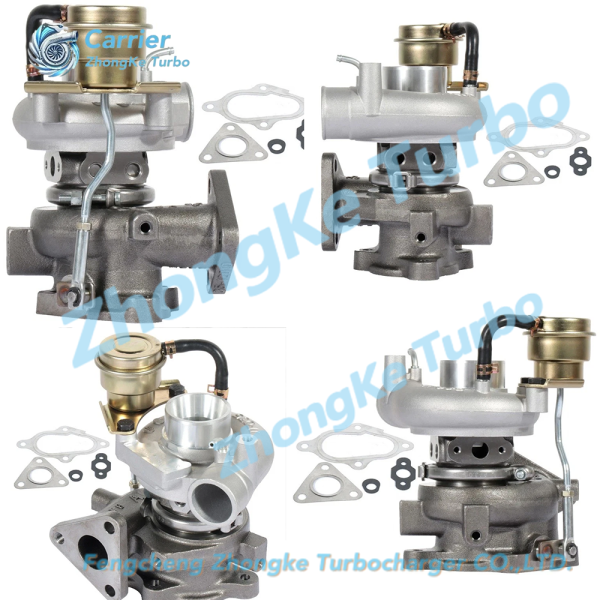

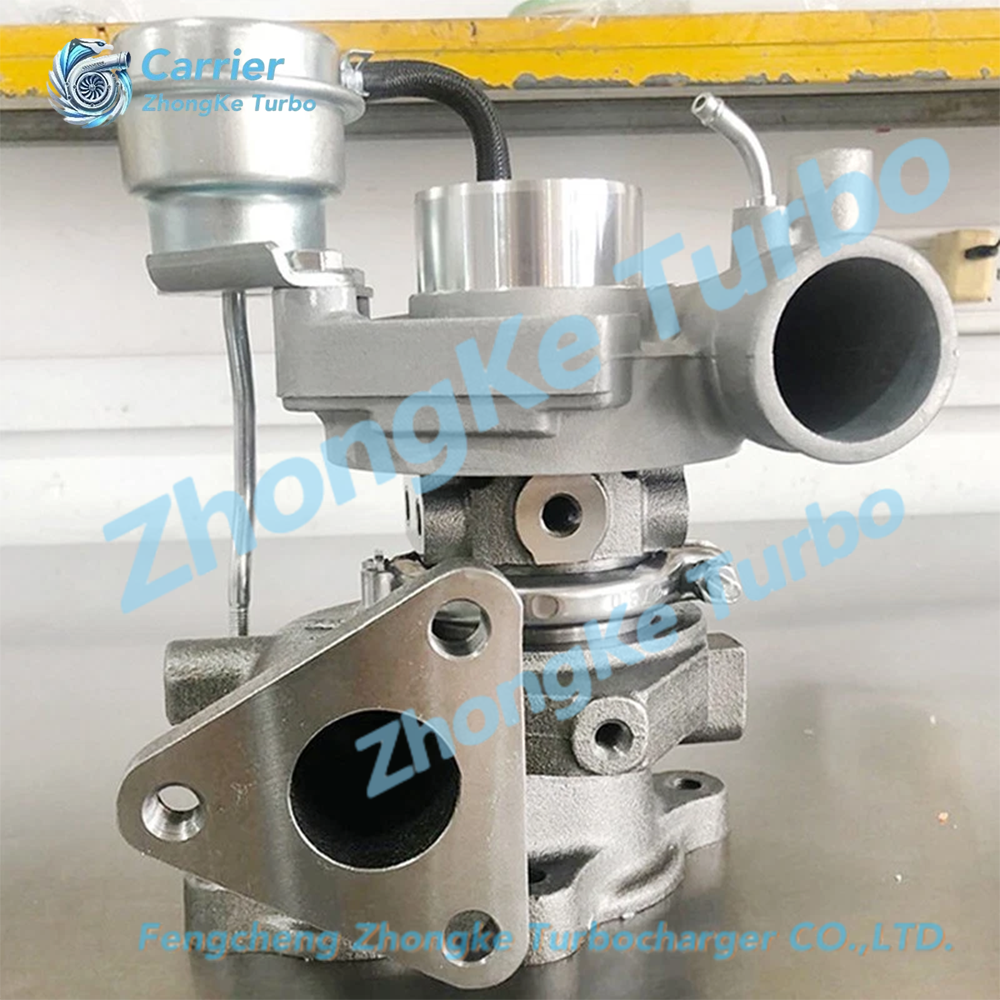

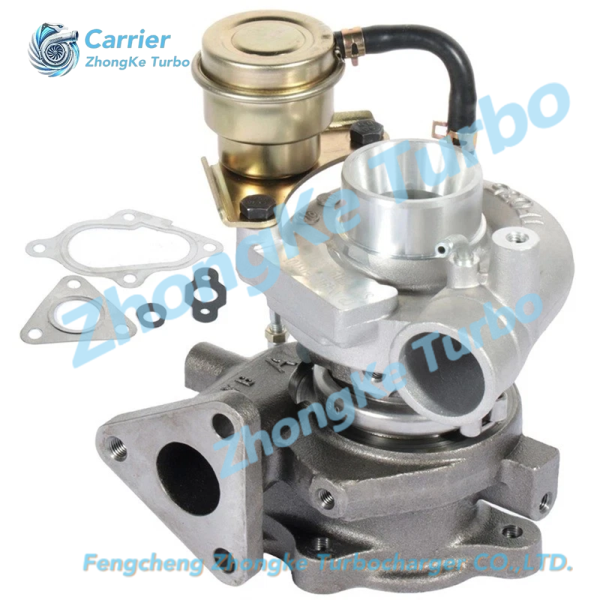

TF035HM-12T Turbocharger Full Specification

Basic Ident Info

• MHI No: 49135-03320 / 49135-04030
• Hyundai OE No: 28200-4A200
  Fully cross-replaceable for direct plug & fit installation

Engine & Vehicle Application

• Matched Engine: Mitsubishi 4D56 2.5L Inline 4 Diesel Engine (Hyundai D4BH/D4BF 4D56TCi variant)
• Main Fit Vehicles:
  • Mitsubishi: L200 Triton Pickup, Pajero SUV, Delica Van
  • Hyundai: Galloper, H-1 Light Bus & Light Commercial Trucks
• Rated Power Match: 100–115 HP output, designed for off-road pickup & light cargo delivery

Technical Construction & Specs

• Type: Wastegate regulated radial turbocharger, full floating bearing, oil lubricated & oil cooled (no water cooling circuit)
• Turbine Housing A/R Ratio: 0.63, fast low-rpm spool-up for strong low-end torque
• Wheel Material: K18 nickel superalloy turbine wheel, precision cast aluminum compressor wheel
• Rotor Max Speed: Up to 120,000 RPM; CHRA core passed strict VSR high-speed dynamic balance test
• Mounting: 3-bolt exhaust flange, standard compressor outlet, gaskets included with full assembly
• Net Weight: Light compact size for 2.5L diesel passenger & light commercial platform

Key Advantages

1. Quick boost response at low RPM, greatly improves climbing & heavy-load torque for pickup trucks
2. Optimize air-fuel combustion, reduce black smoke emission and lower overall fuel consumption
3. Reinforced anti-vibration structure, stable performance under rough off-road and long-distance delivery conditions
4. Huge global aftermarket inventory; repair CHRA kits, seals and gaskets are widely available with low maintenance cost

Replacement & Quality Warranty

• Ideal replacement for faulty turbos with oil leakage, impeller wear, weak acceleration, blue exhaust smoke or bearing abnormal noise
• Supply Status: Brand new complete turbo assembly; separate repair core kits & seal kits available
• Production Standard: Manufactured strictly per MHI original blueprint, meets Hyundai/Mitsubishi OEM tolerance standard
• Warranty Term: 12–14 months warranty for brand-new units, stable bulk factory supply for overseas distributors

Maintenance Instructions

1. Idle engine 2–3 mins after cold start to build stable oil pressure before heavy load; idle 2 mins after full-load operation before shutdown
2. Use only CI-4 / CJ-4 grade diesel engine oil, replace oil filter on schedule to avoid bearing scratch by contaminants
3. Shorten air filter replacement cycle for dusty off-road environments to prevent foreign object damage to compressor impeller
