Acid Resistance LCR Oil Absorbent Filter Bags High Capacity Oil / Water Separation With Acupuncture Weaving Method
Acid Resistance LCR Oil Absorbent Filter Bags High Capacity Oil / Water Separation With Acupuncture Weaving Method
Specifications
Brand Name :
FILTERK
Model Number :
LCR
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10 pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/week
Delivery Time :
1 week
Packaging Details :
Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Filter Area :
1（m²）
Keywords :
fabric for bags
Weaving Method :
Acupuncture
Thickness :
1.7-2.8mm
Pulse Jet Pressure :
Lower
Felt :
Acrylic
Bag Diameter :
120mm, 130mm, 150mm, 155mm, 160mm
Bag House Cost :
Reduce
Size :
Standard or Customized
Seam Type :
Sewn or Welded
Filtering Area :
2.1m2
Performance :
Alkali resistance, acid resistance
Leadtime :
Negotiable
Top End Cap :
Molded polyurethane (PU) - soft
Top Cuff :
Seal Cuff, Bead Cuff
Description

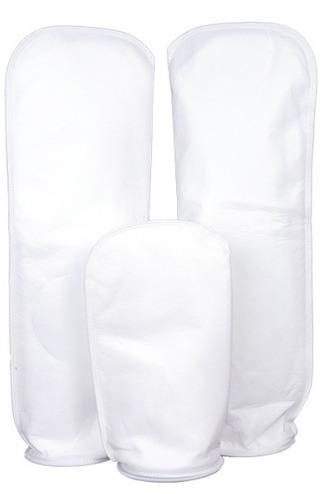

LCR Oil-Absorbent Filter Bags – High Capacity Oil/Water Separation


[Product Introduction]

The oil absorbing bag adopts a multi-layer structure. The outer layer has a precision of 0.2~300 microns, which is commonly used The nozzle opening can be made of PP, PE, galvanized zinc, $S304 and other materials. The inner non-woven fabric protective layer is used to protect the core suction spiral. The core layer is composed of 200-400 grams of oil absorbing cotton. The oil absorption effect can reach 10-17 times the weight of the oil absorbing spiral itself.


[ product superiority ]

High quality oil absorbing over thick bag New structure of the oil absorbing/drying over thick bag The core of the oil absorbing/drying over thick bag is made of pure polypropylene multi-layer fusion. Fusion polypropylene has oleophilic properties, and the cloth formed by it has the performance of oil adsorption.


Parameter Specifications
Absorption Material LCR (Lipophilic Composite Resin)
Filtration Rating 5 micron – 100 micron
Oil Absorption Capacity Up to 15x own weight
Max. Temperature 80°C (176°F) continuous
pH Resistance 3-10
Surface Properties Hydrophobic & Oleophilic
Frame Material PP/Stainless Steel (optional)
Certifications NSF, FDA (for food grade), ATEX
Applications • Metalworking fluids
• Edible oil refining
• Marine oil spill recovery
Special Features • Non-leaching
• Floatable design available
• Color-changing saturation indicator

Our LCR (Lipophilic Composite Resin) filter bags revolutionize industrial oil filtration with unmatched absorption capacity and precision separation. Engineered for demanding applications where oil contamination control is critical.

Breakthrough Technology:
✔ Smart Selective Absorption – Captures oil while repelling water
✔ High Capacity – Absorbs up to 15 times its weight in oil
✔ Environmentally Safe – 100% non-leaching composite resin

Superior Construction:
• Multi-stage filtration with pre-filter layer for large particulates
• Reinforced seams withstand high flow rates up to 50 GPM
• Optional floatable design for sump and tank applications

Industry-Proven Performance:
• Metalworking: Extends coolant life by 300%
• Food Processing: NSF-certified for edible oil purification
• Wastewater Treatment: Meets EPA effluent standards
• Marine Applications: Ideal for bilge water treatment

Custom Solutions Available:

  • Explosion-proof versions (ATEX/IECEx)

  • RFID-tagged bags for automated saturation detection

  • Custom sizes from 10" to 36" diameters

Package & Delivery

Acid Resistance LCR Oil Absorbent Filter Bags High Capacity Oil / Water Separation With Acupuncture Weaving Method


Service Provide:

OEM service, printing or logo information is acceptable.
