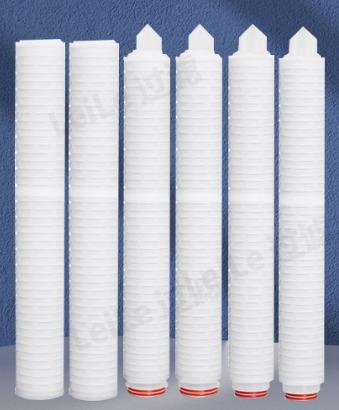

Hydrophilic PTFE Pleated Filter Cartridge High Flow Chemical Resistant
Hydrophilic PTFE Pleated Filter Cartridge High Flow Chemical Resistant
Specifications
Brand Name :
FILTERK
Model Number :
PTFE
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/week
Delivery Time :
1 week
Packaging Details :
Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Pleat No :
8,10, 12 Rays
Emission :
Less
Operating Pressure :
Up to 10 bar
Efficiency :
99.9%
Metal Hoop :
SUS 304
Installation :
Vertical Lifting
Structure :
Cartridge filter
Filter Area :
1（m²）
Micron Rating :
0.5-200 microns
Size :
Custiomized
Type :
Dust filter bag
Pulse Jet Pressure :
Lower
Origin :
China
Filter Media :
Polyester Antistatic
Specification :
130*2500
Description

Hydrophilic PTFE Pleated Filter Cartridge – High Flow & Chemical Resistant

PTFE hydrophilic folding filter element is made of hydrophilic polytetrafluoroethylene (PTFE) filter membrane θ In addition, it has excellent chemical compatibility and corrosion resistance θ Due to the characteristics of its hydrophilic filter material, it can filter aqueous solutions without pre-wetting treatment θ It greatly saves the cost of operation time.
[Product Features]
PTFE membrane material has excellent bearing capacity and good tolerance to various materials. θ It can be used to filter a variety of highly corrosive liquids. PTFE film material is used for high d washing rate θ to ensure the removal of impurity particles Good tolerance to a variety of chemicals θ can be used to filter a variety of etching and stripping liquids and other corrosive liquids. The filter element 1 is printed% for hyperactivity detection

Parameter Specifications
Membrane Material Hydrophilic Polytetrafluoroethylene (PTFE)
Structure Pleated with PP/PES support core
Pore Size 0.1 μm – 10 μm
Bubble Point ≥4.0 bar (0.2 μm rated)
Max. Temperature 130°C (266°F) continuous
pH Range 0-14 (full chemical resistance)
Protein Binding <3 μg/cm² (ultra-low binding grade)
End Caps Polypropylene with EPDM/Silicone gasket
Certifications USP Class VI, FDA 21 CFR 177.1550, ISO 9001
Sterilization Autoclave, Gamma, ETO compatible
Applications • Biopharmaceutical
• IV Solution
• Semiconductor DI water

Our hydrophilic PTFE pleated cartridges combine PTFE's unmatched chemical stability with spontaneous water absorption, eliminating the need for alcohol pre-wetting. The advanced membrane structure delivers high flux rates while maintaining absolute filtration accuracy.

Key Advantages:
✔ True Hydrophilicity – Water contact angle <30° (vs >100° for standard PTFE)
✔ Broadest pH Tolerance – 0-14 full range compatibility
✔ Gamma Stable – Maintains performance after 50 kGy irradiation
✔ Validatable – Complete DOP/QCP documentation package

Package & Delivery

Hydrophilic PTFE Pleated Filter Cartridge High Flow Chemical Resistant


Service Provide:

OEM service, printing or logo information is acceptable.
