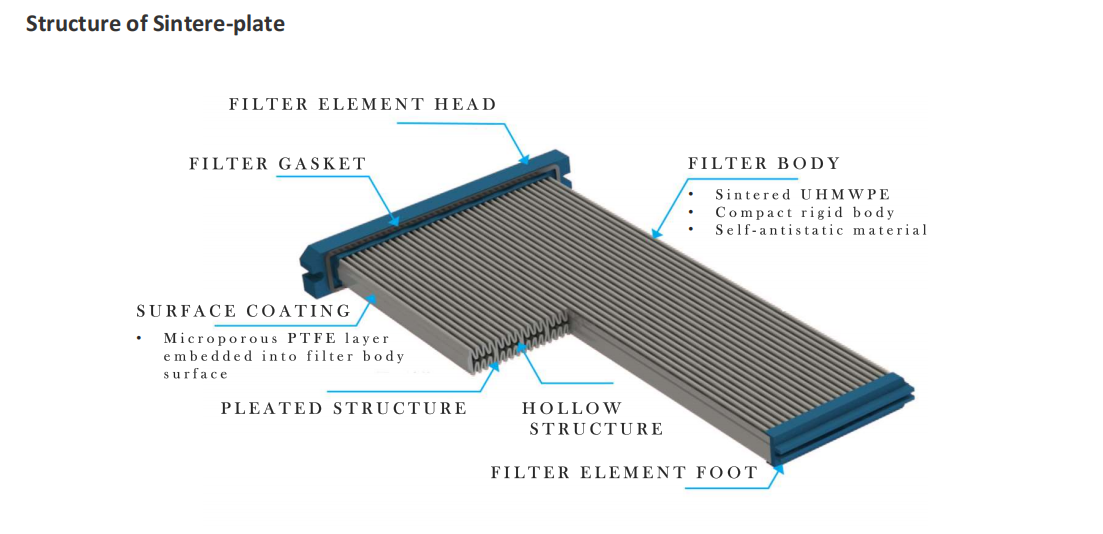

Introduction to UVT Sinter-plate Filter Element:

• Ultra-low emission concentration and extremely long service life l The filtration accuracy is 0.1μm, capable of handling extremely fine particle size dust, and the processing efficiency reaches 99.99%@1μm. l
• Ultra-low emissions, with the minimum concentration reaching 1mg/Nm3 , suitable for occasions with ultra-low emission requirements and high-value dust recovery needs. It can handle high-humidity and oily dust with RH>95%, is water-proof and resistant to micro-oil, such as steel hot rolling dust. In heavy oil environments, a composite dust removal process should be adopted. l
• It has good tolerance to sticky dust. For the treatment of highly sticky dust, a composite process is more suitable, such as CaO, CaCl2 , KCl, NaCl, MgCl2 , NH3Cl, etc. l
• It can handle highly abrasive dusts, such as aluminum powder, silicon powder, carbon powder and iron ore powder, etc. l
• It has a long service life, up to 10 years at the longest, and low usage cost throughout the entire life cycle. l
• The maximum operating temperature can reach 80 ℃. l
• Anti-static models are available and suitable for explosive dust environments. l
• Rigid self-lubricating matrix, good wear resistance, excellent dust cleaning performance, low consumption of compressed air, and washable. l
• The size can be customized and designed to be suitable for different usage scenarios.

Technical Advantage:

• The production formula of the filter plates is independently developed and designed, and the performance parameters of the products are true and reliable.l
• We have the production formulas and processes for common filter plates, antistatic filter plates and high-temperature resistant filter plates. l
• The special PTFE coating formula design and surface spraying process always maintain excellent surface filtration performance and an extremely long service life.
• The optimal internal microporous structure design of the matrix ensures good uniformity, stable resistance during the operation of the filter plate, and low operating energy consumption.

Product Superiority:

• It can handle high-humidity, oily and sticky dust, as well as highly abrasive dust.It has a long service life, up to 8 to 10 years, and low usage cost throughout its entire life cycle.
• The filtration accuracy is 0.1μm, and the treatment efficiency reaches 99.99%@1μm, achieving ultra-low emissions.
• Rigid self-lubricating matrix, good wear resistance, excellent dust cleaning performance and washable.
• High-temperature resistant, anti-static and explosion-proof models are available as options.The size can be customized and designed.
• It can replace well of Herding Sintered Plate Filter Element.

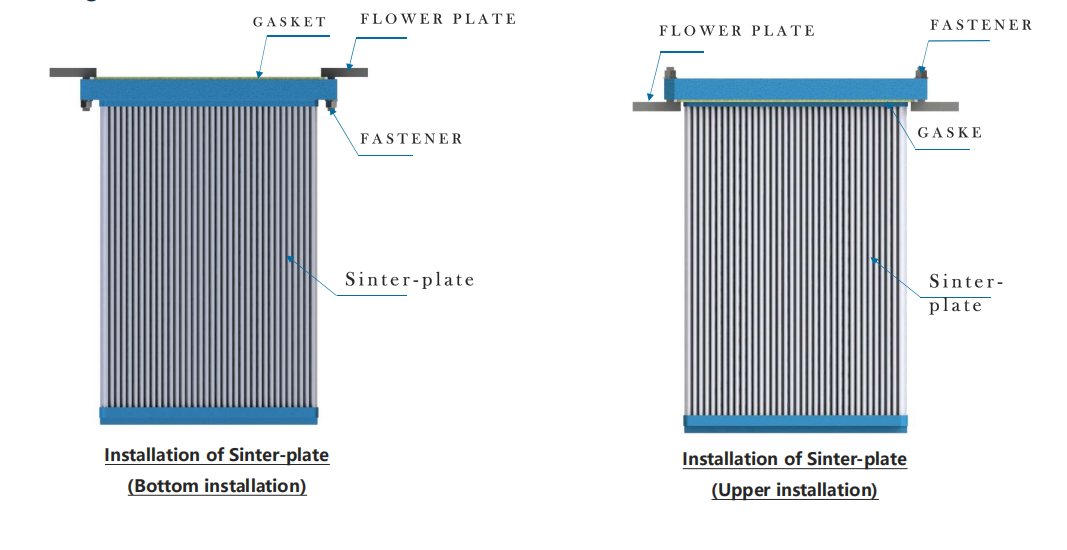

<img alt="" src="Installing Form:

We have the test reports , pls let us know if you need the reports.
