Specifications
Productname :
Flowserve Mechanical Seal
Drivetype :
Spring, Bellows, Metal Bellows
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,D/P,D/A,L/C
Brand Name :
BESTSEAL
Certification :
ISO9001
Sizerange :
25 mm to 200 mm shaft diameter
Material :
Carbon, Ceramic, Silicon Carbide, Tungsten Carbide
Sealfaceconfiguration :
Balanced, Unbalanced
Installationtype :
Inboard, Outboard
Compliancestandards :
API 682, ISO 21049
Sealtype :
Single, Double, Cartridge
MOQ :
1pc
Industry :
Oil & Gas, Chemical, Water Treatment, Power Generation
Elastomeroptions :
Viton, EPDM, Nitrile
Pressurerating :
Up to 30 bar
Type :
Mechanical Seal
Supply Ability :
1000000/Month
Temperaturerange :
-40°C to 250°C
Delivery Time :
15 working days
Packaging Details :
Carton
Application :
Pumps, Mixers, Agitators, Compressors
Model Number :
ISC2
Manufacturer :
Flowserve Corporation
Description

Flowserve ISC2 Standard Cartridge Mechanical Seal Pump Seals

  • Mechanical Seals
  • Pump Seals
  • Standard Cartridge Seals
Flowserve ISC2 Standard Cartridge Seal

The Flowserve ISC2 Series is a complete family of mechanical seals that provide exceptional reliability and standardization over the widest variety of industrial applications and equipment. ISC2 seals meet all major international standards and are designed for hundreds of pump models from global manufacturers. Facilities will immediately benefit from less inventory, greater flexibility, less downtime and longer seal life.

Features and Benefits
  • Patented thermal management technology increases dry running and cavitation tolerance.
  • Robust drive mechanism for maximum reliability in higher viscosity fluids & frequent stops and starts.
  • Optimized high-efficiency barrier circulation promotes cooler running and longer seal life.
  • Diamond seal face option for cooler running, abrasive resistance and longer seal life.
Specifications

ASME, DIN, ISO, JIS, and others

Up to 20.6 bar (300 psi), -40 to 204°C (400°F), up to 23 m/s (75 fps), 25 to 200 mm (1.000 to 8.000 inch)

Industries
  • Power
    • Nuclear
    • Conventional Steam
    • Combined Cycle
    • Concentrated Solar Power (CSP)
    • Biomass & MSW
    • Geothermal
  • Chemicals
    • Basic (Organic & Inorganic)
    • Specialty (Fine & Consumer)
    • Biofuels
    • Pharmaceutical
    • Petrochemicals
  • Mining
  • Water
    • Water Management
    • Wastewater
    • Agriculture & Irrigation
    • Flood Control System
    • Desalination
  • Oil & Gas
    • Upstream Exploration & Production
    • Downstream Processing
  • General Industries
    • Pulp & Paper
    • Steel & Primary Metals
    • Food & Beverage
    • Corn Wet Milling & Ethanol
    • Other Industries
Configurations

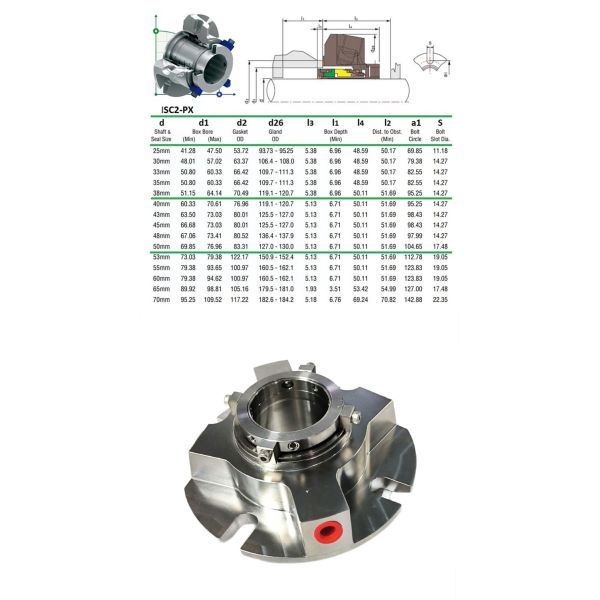

ISC2-PX
Single Cartridge Pusher Seals

ISC2-PP
Dual Cartridge Pusher Seals

ISC2-BB
Dual Cartridge Metal Bellows Seals

BESTSEAL — Your Reliable Partner for Mechanical Seals

BESTSEAL Advantage:
15 years Focused in mechanical seal manufacturing
3 hours Quotation response only takes 3 hours
1 day Provide production assembly drawings
1 piece MOQ, One piece can also be produced
15-20 working days The production cycle only takes 15-20 working days
real-time Real time synchronization of production progress

BESTSEAL Cartridge Mechanical Seal

Your Fast-Track Alternative to Flowserve ISC2

Custom Cartridge Mechanical Seals — From Drawing to Delivery in 15–20 Working Days
