Introduction:

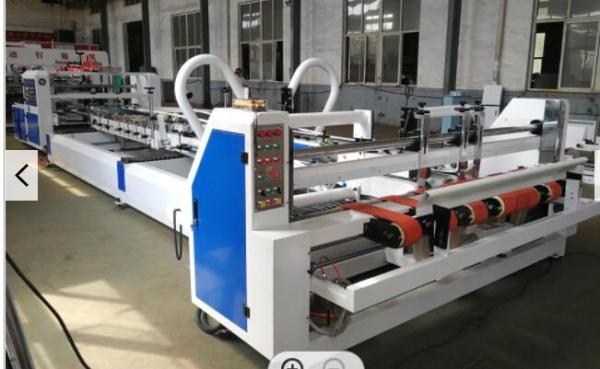

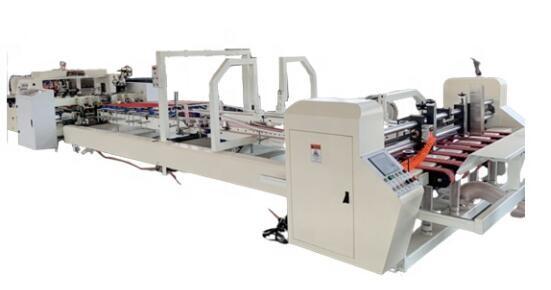

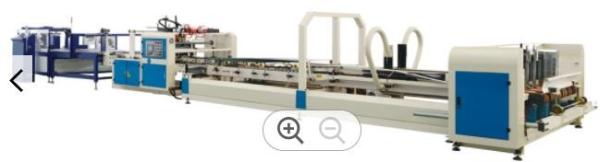

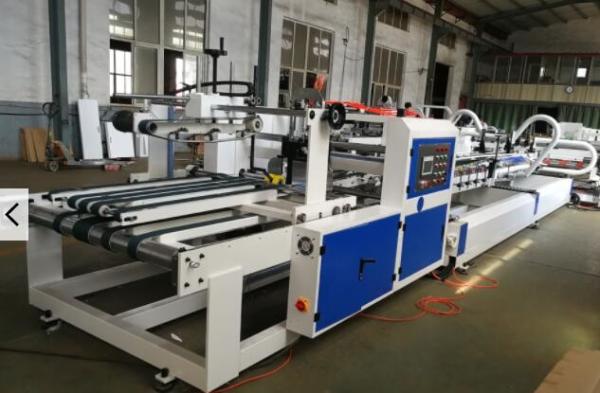

automatic glue machine is consist of three parts ,which is paper feeding part ,gluing and folding part and counting and stacking part. It adopts digital display speed regulation ,PLC computer amplitude modulation,double frequency conversion synchronization operation,has simple quick and accurate control model.Automatic paper feeding ,automatic fold and glue,automatic counting and stacking output,the average speed reaches to 150pcs/min, energy conservation and environmental protection is our pursuit.

• Performance

2600mm type automatic glue machine is consist of three parts ,which is paper feeding part ,gluing and folding part and counting and stacking part.Automatic paper feeding ,automatic fold and glue,automatic counting and stacking output,The operation is simple and reliable. The speed can reach 100-240 pieces per minute. Advanced and reasonable structure design and manufacture, it demands for cultural level of operators is not high, and operators will be able to handle all operating procedures in one or two working days, and protect the safety of operating personnel.

• Feature

• paper feeding part
  • The vacuum suction feeding system is good at adapting the curved paperboard
  • Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.
  • The paperboard width adjustment unit is made of high quality steel, so as to adjusting the machine width conveniently in order to adapt to the different size of carton box.

2,Gluing and folding part

A.The glue quantity is controlled by imported high quality and stability motor, which is low noise

B.The gluing roll is made of stainless steel, which is easy for cleaning, the gluing is even and saves its volume.

C.The transmission belt of folding unit is made of imported wear proof rubber belt, guarantee a long life time and makes the cardboard folding precisely.

D.The folding unit equipped with re-creasing and orthotic devices, the height of creasing wheel is adjustable in order to adapt different thickness of cardboard.

E.The re-creasing device is able to re-crease the cardboard to reach a good creasing if the first creasing is not good.

3,counting and stacking part

A.Correct part of the native characteristic, has a unique device, the most advanced coaxial is not synchronized, from each according to his ability, good rectifying. With double speed correction device, make the carton eliminate scissors mouth, good shape, size control.

B.Adopt PLC programmable controller and touch screen, digital controls. Response rapid, accurate and reliable, easy to operate.

C.count and launch adopts pneumatic method, reliable, accurate and fast.

• Pressing output using suspension conveying device, can accommodate more than 200 carton, the carton can be under pressure for a long time. It not only ensure the cartons sticky mouth bonding strength, and effectively improve the compressive degree of the carton, the carton appearance more beautiful.
• the machine more this parts.the parts function is correct an error, when the carton arrived to here.if not orderliness
