2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
Specifications
Brand Name :
Hh
Model Number :
2000mm
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiated
Payment Terms :
T/T
Supply Ability :
30 sets every month
Delivery Time :
7-10 days
Packaging Details :
plastic
Machinery Test Report :
Provided
Core Components :
PLC, Gearbox, Gear
Packaging Material :
Plastic, Wood
Dimension(L*W*H) :
3800*1500*1820MM
Min paperboard size :
1060*400mm
Nail distance :
30-120mm
Nails Number :
1-99pcs
bending thickness :
3/5 /7 layer corrugated paperboard
Automatic Grade :
semi auto
Bending type :
/single,double screw///,strengthening nails
Flat wire specification :
Popular is 17/18 # wire
Description

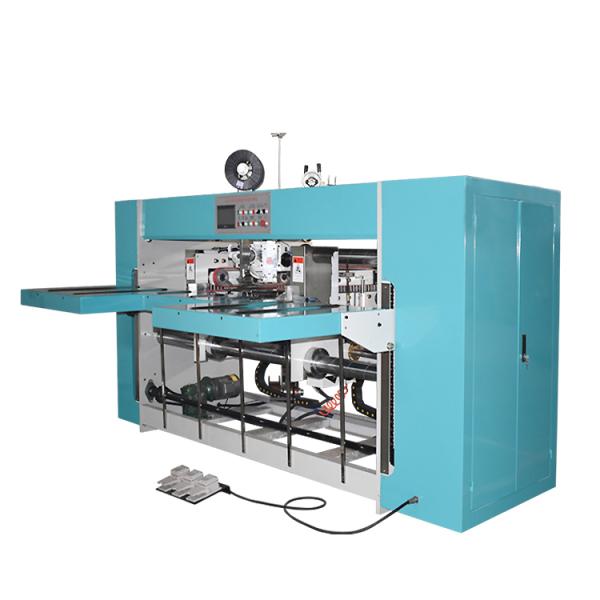

High Speed 2 Pieces Semi-Auto Stitcher Double Servo Carton Box Stitching Machine

Performance features and characteristics:

★ Japanese Mitsubishi original imported dual servo drive, accuracy, mechanical transmission part reduction, can effectively reduce the failure rate of machinery.

★ Mitsubishi touch screen operation, parameter (nail distance, nail number, nail type, back baffle board) conversion is convenient and fast.

★ The whole control system adopts mitsubishi PLC control system.

★ Back electric baffle, driven by stepping motor, accurate size, convenient and fast to change size.

★ The full contactor inside the control box is mitsubishi brand.

★ Photoelectric and proximity switch use schneider brand.

★ Bottom die, blade made of Japanese tungsten steel (wear - resistant).

★ The whole group of nail head is made of special steel, computer gong precision processing.

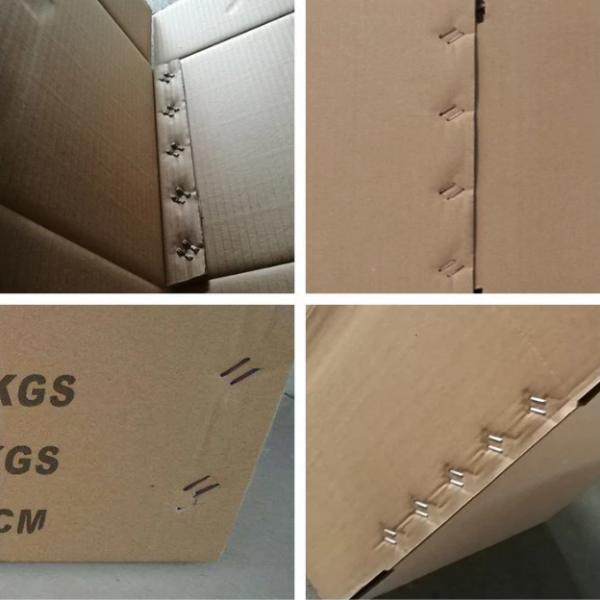

★ Single nail /, double nail //, reinforced nail (// / / // both side is double nail, middle part is single nail ) completed in one time, can be suitable for different customers to nail different requirements

Max. paper size

(A+B)*2(mm)

 3600

Min. paper size

(A+B)*2(mm)

 600
Max.cover C(mm) 350
Min.Cover C (mm) 65
Min width (C+D+C) (mm) 350
Max carton width (mm) 700
Min.carton width(mm) 150
Max. carton length(mm) 1100
Man. Carton length (mm) 150
Machine power (KW) 4
Machine dimension(mm) 2800*2600
Machine weight(KG) 1500
Nail distance(small/big) (mm) 20-120
Machine speed nail/min 600nails/min
Nail size No. 17# 18#
Nail No. 1-99

2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed

2 Pieces Semi Auto Corrugated Box Stitcher Double Servo High Speed
