Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-ZWG-590
Certification :
CE
Place of Origin :
Wuxi,China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
100 set/ month
Delivery Time :
30-45 work days
Packaging Details :
Wooden Case
Name :
Flow Cut Shrink Wrapping Machine
Automatic Grade :
Automatic
Available product :
Vegetables, fruits, tomatoes, cucumbers, etc.
Speed :
30-150 pcs/min
Cut-seal way :
Flow cut
Cutter driven method :
Auto, Servo
Shrink wap effect :
full-closed
Shrink film :
POF
Function :
for single or bundle productg shrink wrap
Application :
Shink wrapping for Vegetables, fruits, tomatoes, cucumbers, etc.
Description

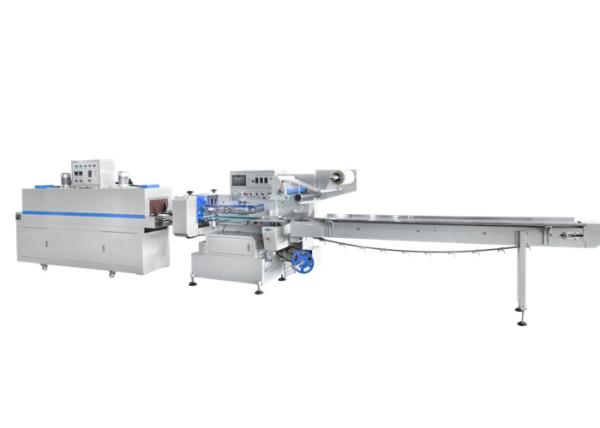

Vegetables Shrink Wrapping Packaging Machine / Speed 30-150PCS/MIN

  • Product description

Vegetable packaging machine is a heat shrinkable film automatic packaging machine, which is suitable for heat shrinkable automatic packaging of vegetables, garlic seedlings, fruits, tomatoes, cucumbers and other products..

  • Technical Parameter
Max Flim size ≤590mm
Model 120 150 180 210
Packing size L L:60mm-320mm L:100mm-450mm L:150mm-530mm L:180mm-600mm
W w:10mm-200mm w:10mm-200mm w:10mm-200mm w:10mm-200mm
H H:5mm-35mm H:35mm-70mm H:75mm-100mm H:80mm-130mm
Packing speed 30-150 pcs/min 30-150 pcs/min 30-135 pcs/min 30-100 pcs/min
Flim type POF
Power consumption Flow-cut machine:4.5KW;Shrink tunnel:15.5KW
Power supply Flow-cut machine:220V,50HZ/60HZ; Shrink tunnel:380V,50HZ/60HZ
Flow-cut machine 5000x1170x1500mm
Shrink tunnel 2600x600x1700mm
Weight Flow-cut machine:1000KG Shrink tunnel:600KG

  • Product Features

1. The machine can be packaged individually or in any group. It is a fully automatic heat shrinkable packaging machine designed for assembly line operations and mass packaging.
2. According to the specific conditions of the product, an automatic feeding system can be selected to realize unmanned operation of feeding materials, and various forms of conveyors can ensure that the materials will not move or roll.
3. The anti-cutting safety clutch device does not damage the packaging, so the overall efficiency is high.
4. After packaging, the sealing of the product is linear, and the steel pattern is clear and beautiful.
5. Bag length, speed and temperature can be adjusted individually, which is convenient and accurate.

6. The control unit is composed of servo motor and servo driver. The control precision is extremely high. The intelligent control system makes all parameters easy to set and accurate to lock; bag forming, cutting length, sealing temperature and other parameters can be locked more accurately.
7. The servo system replaces the traditional mechanical film feeding system, simplifies the mechanical structure, makes the operation of the packaging machine more stable, the daily maintenance is more convenient and simple, reduces the skill requirements for the operator, and also reduces the noise and noise of the machine operation. The failure rate is significantly reduced;
8. The use of variable frequency speed regulation reduces costs and improves cost performance;
9. The new type of vertical sealing heating can seal at low temperature and reduce the amount of hot film on parking.

  • Product Samples

Vegetable Automatic Shrink Sleeve Machine 30-150 PCS/MIN Tunnel
