Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Pharma Medicine Side Case Packer 220v Packing System
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-ZX550
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 Unit
Payment Terms :
T/T
Supply Ability :
100 Units two months
Delivery Time :
60 work days
Packaging Details :
Wooden Case
Name :
Pharma/ medicine side push carton case packer machine
Automation :
Automatic
Speed :
1-8 cases/min
Available carton size :
L250-550mm*W200-400mm*160-400mm
Available product :
boxed product, bags
Structure :
all-in-one, compact type
Loading type :
side-load, side push
Sealing type :
tape or hot melt glue
Voltage :
220/380v
Application :
medicine boxes, bottles, capsules, tablets, masks, medical gauze, band-aids, medicine boards, oral liquids, vials, patches, aerosol bottles, ampoules, needles
Description

Pharma/ medicine side push carton case packer machine

  • Product description

The side-Push carton case packer machine is an intelligent packing equipment that integrates product incoming mechanism, incoming material sorting mechanism, carton unpacking mechanism, product loading mechanism, carton sealing mechanism, and carton output mechanism. The rectangular-shaped items are automatically packed into boxes; the arrangement of the products is determined according to the user's requirements, and the products are sorted and arranged by the pneumatic alignment mechanism and pushed into the carton; the working procedure is automatically completed by the PLC program control without manual intervention.

This case packer machine is especially suitable for automatic packing of boxed products in pharma medicine industies like medicine boxes, bottles, capsules, tablets, masks, medical gauze, band-aids, medicine boards, oral liquids, vials, patches, aerosol bottles, ampoules, needles, and other industries like food, medicine , beverage, tobacco, daily chemical, electronics etc.

  • Technical Parameter
Carton Size L 250-550mm* W200-400mm *H160-400mm
Speed 6-10cases/min,customized
Product input height 800±50mm
Product output height 800±50mm
Tape width W(48,60)mm×L(100m)
Compressed Air supply 5.5~6kg/cm²
Power supply 220v/380v 50/60HZ
Machine size L2300 mm ×W2000 mm ×H1900 mm
Machine weight 1500Kg

  • Working Principle

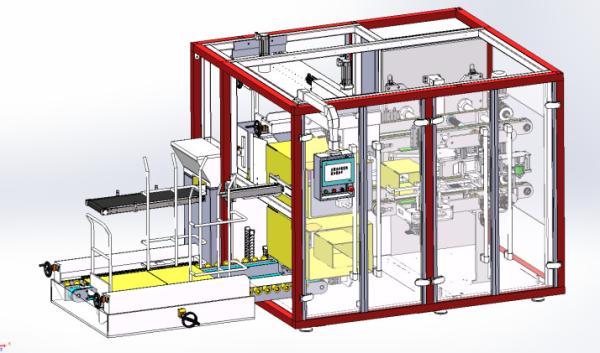

Pharma Medicine Side Case Packer 220v Packing System

  • Product Features

•Economical packing machine for large batch packaging
•High efficiency side-loading technology
•GMP-compliant packer
•Small caster design and compact structure
•High flexibility, can be applied to a variety of different specifications of packaging
•High accuracy, product handling and stacking at the highest safety level
•High reliability, special box grabbing technology
•Intelligent synchronous servo technology ensures stable unpacking

  • Sample Product

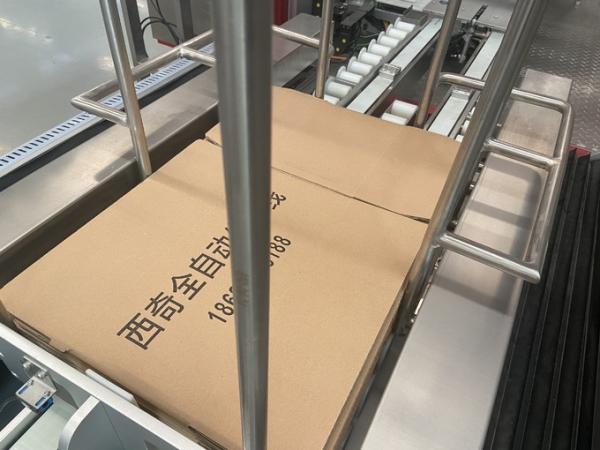

Pharma Medicine Side Case Packer 220v Packing System

Pharma Medicine Side Case Packer 220v Packing System
