Vegetables 220v Pillow Type Packing Machine 50hz Pillow Pouch Machine
Vegetables 220v Pillow Type Packing Machine 50hz Pillow Pouch Machine
Vegetables 220v Pillow Type Packing Machine 50hz Pillow Pouch Machine
Vegetables 220v Pillow Type Packing Machine 50hz Pillow Pouch Machine
Specifications
Brand Name :
SICI AUTO
Model Number :
XQ-SZ180
Certification :
CE
Place of Origin :
Wuxi
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
50 set/ month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Name :
Automatic Vegetables Pillow Type Packing Machine
Speed :
25-180 bags/min
Pouch Size :
(130-350) * (50-200) * (3-70) mm
Film Thickness :
40-70 micro
Film Width :
≤400mm
Voltage :
220V 50Hz single phase
Power :
5.5kw
Optional :
air charging system, hole punching device
Available Film :
OPP/CPP/PE
Application :
capsule, rubber gloves, surgical mask
Description

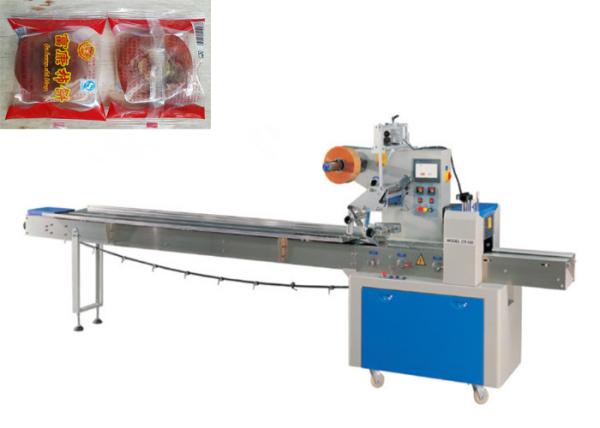

Automatic Vegetables Pillow Pouch Packing Machine Pillow Type Packing Machine

Pillow Type Packing Machine Introduction

The SICI AUTO horizontal flow pack machines are engineered to fit most every budget, space constraint, production need and package type. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film.

Technical Parameter

Item Remark
Packaging film OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film.
Model SZ180
Bag size (130-350)*(50-200)*(3-70) mm (L*W*H)
Speed 25-180 bag/min
Film thickness 40-70 micro
Max film width 400MM
Max outer diameter 300MM
Voltage 220V, 50HZ
Power 5.5KW
Machine size 4000*950*1600 mm(L*W*H)

Pillow Type Packing Machine Features

Model: XQ-SZ180 Automatic Vegetables Pillow Pouch Packing Machine Pillow Type Packing Machine

A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.

B) Features:

①　The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.

②　Dual variable frequency control, packing goods faster, convenient with superior quality.

③　High sensitive electronic eye tracing system, after setting, the machine is no need to adjust by hand, the cutting position is accuracy, the seal is firm and beauty.

④　Temperature is controlled by PID intelligence independently and steadily which is more suitable to various packaging material.

⑤　Color touch-screen display, machine can be turned off by position, fault is self-diagnosed, fault is display clearly.

⑥　Servo control is adopted to improve the control accuracy and the cost performance of the product;

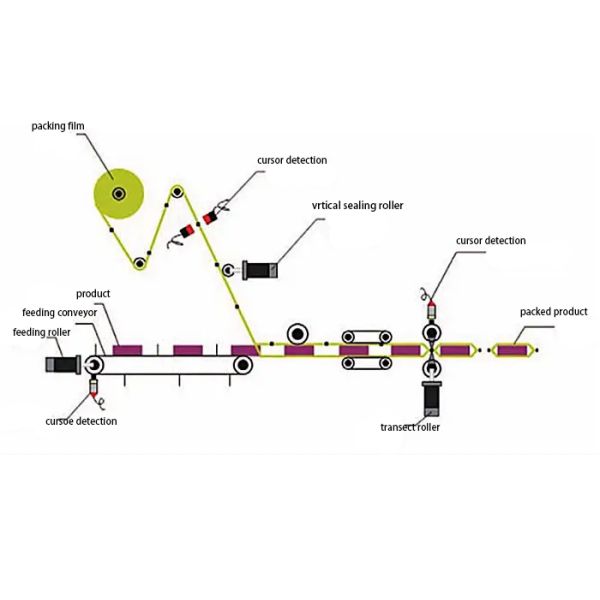

Machine Principle

Vegetables 220v Pillow Type Packing Machine 50hz Pillow Pouch Machine
