Specifications
Place of Origin :
HeBei Province,China
Brand Name :
XINTIAN, SINCERITY
Certification :
CE,ISO9001
MOQ :
1set
Price :
$10000-$30000
Packaging Details :
pallet
Delivery Time :
30-60days
Payment Terms :
T/T or L/C
Supply Ability :
30SET/MONTH
Performance of the machine :
Automatic Flute Laminator
System :
recyclable glue circulating system
Description

Carton Packing Machine / Automated Flute Laminator With High - Strength

BZJ-1300/1450/1600

Performance of the machine:Automatic Flute Laminator

●BZJ Series Automatic Flute Laminator adopts chain pusher and back registration system together with

spring blade side lay and vacuum sucking conveying system make this series of machine fit a larger of paper,high

precision while remaining the features of easy operation and maintenance.

●The core designed rubber roller together with knurled steel roller enhances the evenness of

gluing,strength of stickiness,as well as lowering the production cost.

●Balance-tested rollers,tight assembling technique,plus timing and tooth belt driving mechanic system

makes the machine run at low noise with high precision.

●The machine adopts automatic glue supply and recyclable glue circulating system.

●Self-developed high-strength feeder compliant with high configuration electric system makes the machine

run at low malfunction and Performance of the machine:stable.The electric parts used are all world wide

available brand or well-known Chinese brand.

●All material are inspected according to ISO-9001 standard and key parts such as the harmonic gear and

bearings are imported ones.

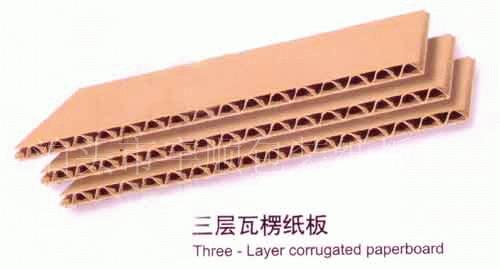

●The bottom sheet for this machine can be A,B,C,D,E,F flute corrugated sheet.It can do 3 or 5 ply board to

sheet lamination or board to board lamination.The range for top paper can be 200-600 GSM with top paper

advance or alignment function.

Model
BZJ-1300
BZJ-1450
BZJ-1600
Maximum paper size (W × L)
1300 × 1100mm
1450 × 1100mm
1600 × 1100mm
Minimum paper size (W × L)
350 × 350mm
350 × 350mm
450 × 450mm
Lamination precision
≤±1.5mm
≤±1.5mm
≤±1.5mm
Max mechanical speed
6000Sheet / h
6000Sheet / h
6000Sheet / h
The total mechanical power
12kw
12kw
13kw
General machinery
12.5m
12.5m
15m
Machine gross weight
6.8T
7.2T
8.0T
